| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T15_9000003648_24908cztM0_level2.evt | modeM0/AS1A08_003T15_9000003648_24908cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,105,280 | 92,108,160 |
| Size | 456.9 MB | 87.8 MB |
| Events in quadrant A | 3,146,839 | 597,786 |
| Events in quadrant B | 3,193,097 | 616,254 |
| Events in quadrant C | 3,326,720 | 576,688 |
| Events in quadrant D | 4,410,674 | 554,052 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13367 | 2 |
| B | 0 | 13496 | 2 |
| C | 0 | 13889 | 2 |
| D | 0 | 17516 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6364 | 38 | 0.597109% |
| B | 6364 | 46 | 0.722816% |
| C | 6364 | 81 | 1.272784% |
| D | 6364 | 85 | 1.335638% |

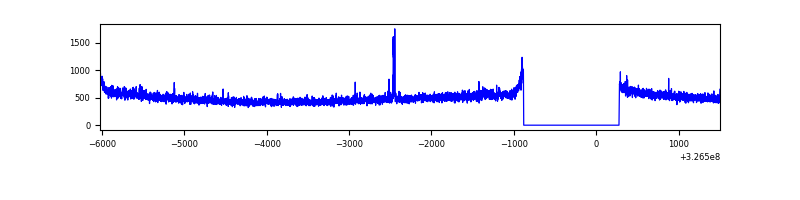

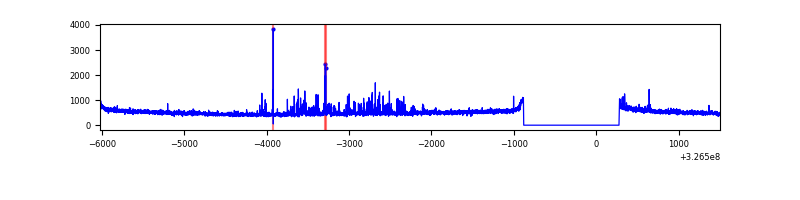

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7524 | 6365 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7524 | 6365 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7524 | 6365 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7524 | 6364 | 43 | 43 | 0.57% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 25950 | 156.32 | 806 | 790 | 161.0 |
| A | 13 | 254 | 9966 | 57.01 | 806 | 790 | 161.0 |
| A | 6 | 16 | 9835 | 56.2 | 806 | 790 | 161.0 |
| B | 12 | 111 | 18388 | 115.28 | 804 | 785 | 152.7 |
| B | 4 | 173 | 18291 | 114.65 | 804 | 785 | 152.7 |
| B | 11 | 111 | 17030 | 106.39 | 804 | 785 | 152.7 |
| C | 2 | 16 | 144601 | 793.95 | 772 | 778 | 181.1 |
| C | 14 | 238 | 123195 | 675.78 | 772 | 778 | 181.1 |
| C | 5 | 112 | 24696 | 132.03 | 772 | 778 | 181.1 |
| D | 1 | 52 | 1171282 | 6241.41 | 773 | 750 | 187.5 |
| D | 8 | 195 | 211143 | 1121.84 | 773 | 750 | 187.5 |
| D | 2 | 244 | 88594 | 468.39 | 773 | 750 | 187.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

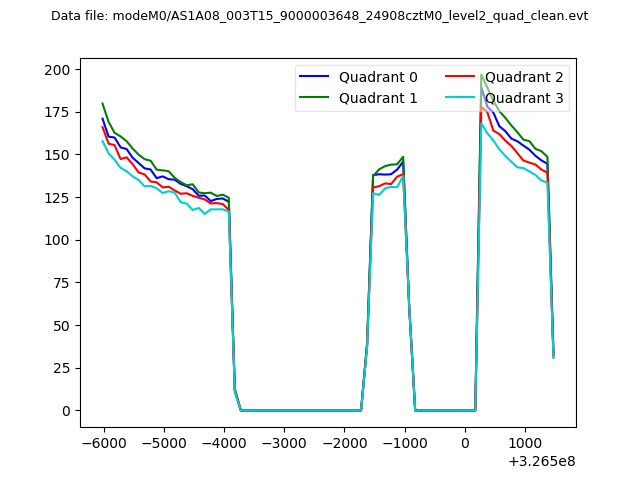

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

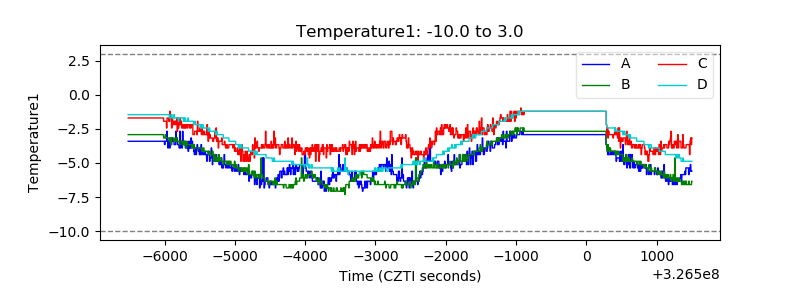

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

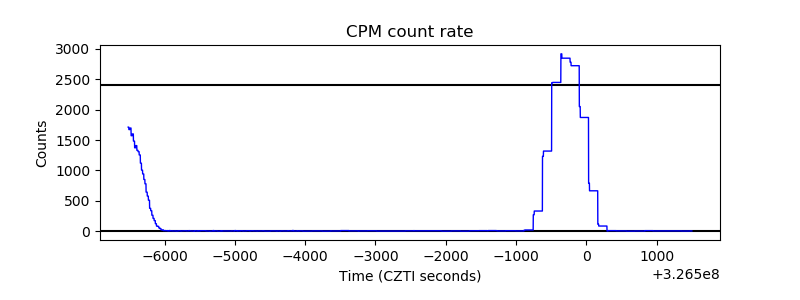

| _CPM_Rate |  |

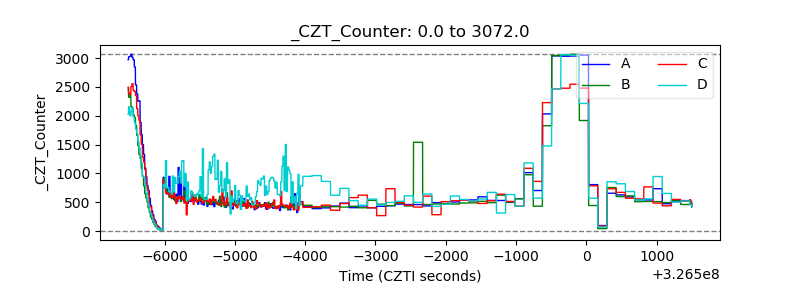

| CZT Counter |  |
| +2.5 Volts monitor |  |

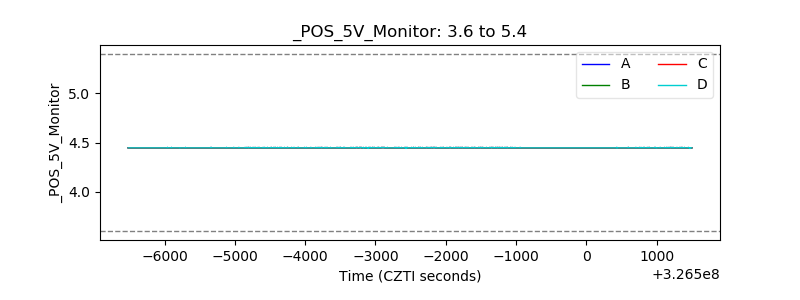

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
