| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_205T01_9000003652_24917cztM0_level2.evt | modeM0/AS1T03_205T01_9000003652_24917cztM0_level2_quad_clean.evt |
| Size (bytes) | 168,062,400 | 46,831,680 |
| Size | 160.3 MB | 44.7 MB |
| Events in quadrant A | 1,212,778 | 312,769 |
| Events in quadrant B | 1,250,235 | 317,615 |
| Events in quadrant C | 1,220,863 | 307,032 |
| Events in quadrant D | 1,237,544 | 304,977 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5103 | 1 |
| B | 0 | 5199 | 1 |
| C | 0 | 5122 | 1 |
| D | 0 | 5239 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2444 | 80 | 3.273322% |
| B | 2444 | 101 | 4.132570% |
| C | 2444 | 98 | 4.009820% |
| D | 2443 | 68 | 2.783463% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2834 | 2445 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2834 | 2445 | 2 | 2 | 0.07% | 0.08% |  |
| C | 2834 | 2445 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2833 | 2444 | 1 | 1 | 0.04% | 0.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 5855 | 86.25 | 312 | 305 | 64.3 |
| A | 13 | 254 | 4021 | 57.75 | 312 | 305 | 64.3 |
| A | 3 | 137 | 2992 | 41.76 | 312 | 305 | 64.3 |
| B | 0 | 189 | 23986 | 387.19 | 305 | 297 | 61.2 |
| B | 4 | 80 | 10275 | 163.09 | 305 | 297 | 61.2 |
| B | 12 | 111 | 7288 | 114.27 | 305 | 297 | 61.2 |
| C | 14 | 238 | 48021 | 667.23 | 298 | 299 | 71.5 |
| C | 7 | 247 | 8895 | 120.19 | 298 | 299 | 71.5 |
| C | 13 | 61 | 2002 | 23.81 | 298 | 299 | 71.5 |
| D | 2 | 244 | 35013 | 453.63 | 308 | 297 | 76.5 |
| D | 1 | 52 | 16633 | 213.46 | 308 | 297 | 76.5 |
| D | 8 | 195 | 11536 | 146.86 | 308 | 297 | 76.5 |

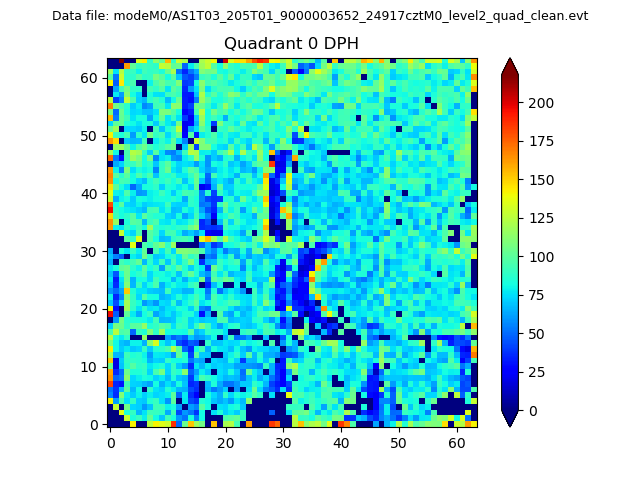

Histogram calculated using DETX and DETY for each event in the final _common_clean file

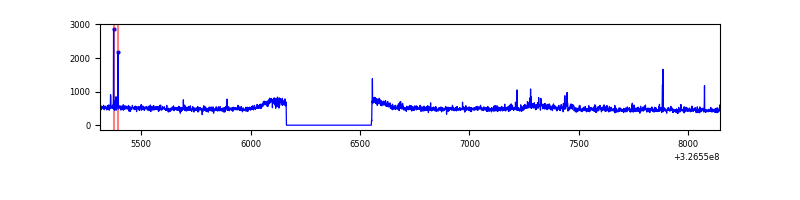

| Quadrant A |  |
 |

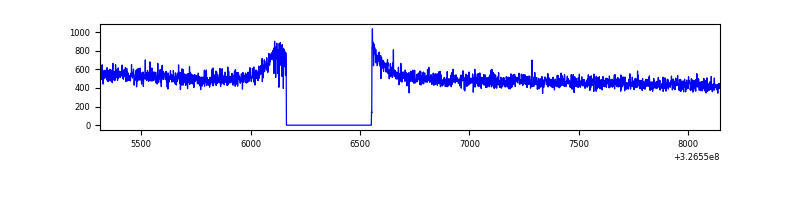

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

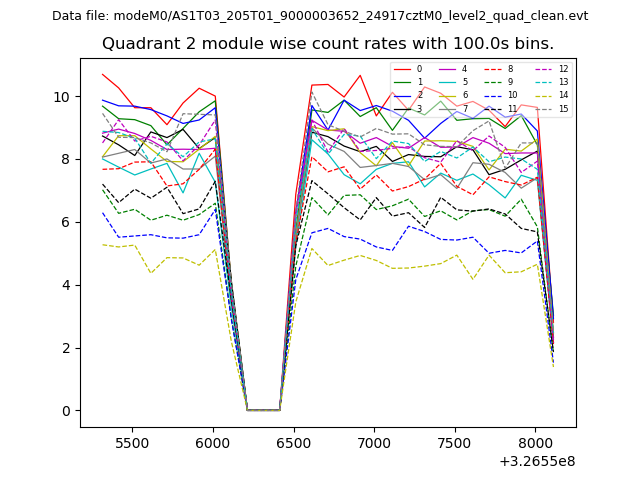

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

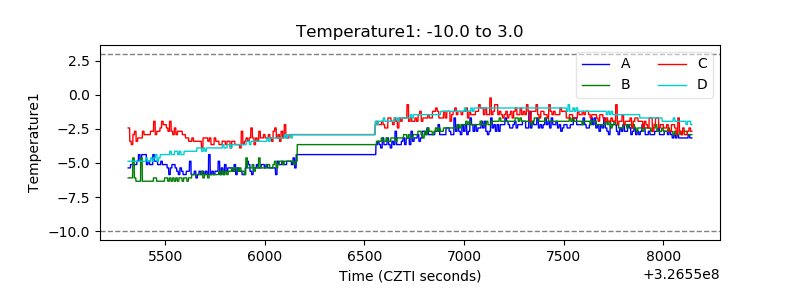

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

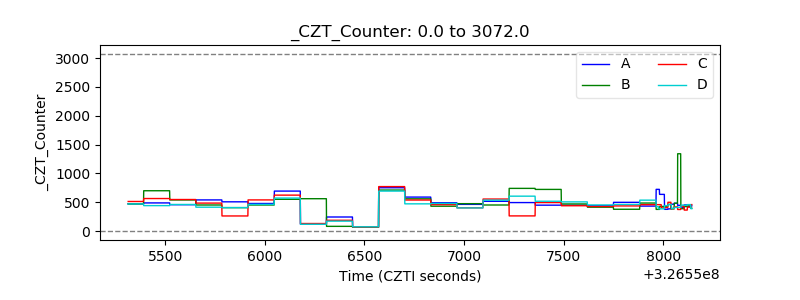

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

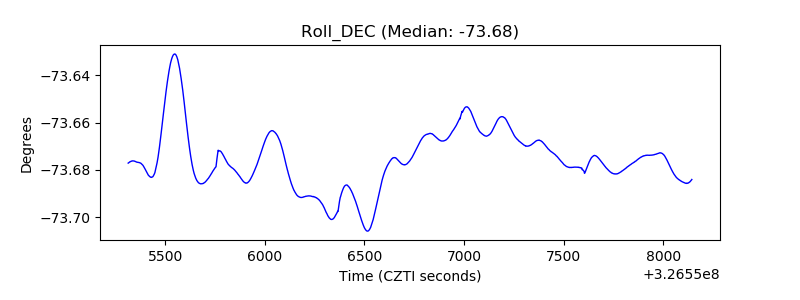

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
