| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_200T01_9000003654_24938cztM0_level2.evt | modeM0/AS1T03_200T01_9000003654_24938cztM0_level2_quad_clean.evt |
| Size (bytes) | 428,846,400 | 132,647,040 |
| Size | 409.0 MB | 126.5 MB |
| Events in quadrant A | 3,002,707 | 903,339 |
| Events in quadrant B | 3,306,539 | 929,388 |
| Events in quadrant C | 3,195,831 | 891,348 |
| Events in quadrant D | 3,060,814 | 860,760 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12956 | 2 |
| B | 0 | 13952 | 2 |
| C | 0 | 13510 | 2 |
| D | 0 | 13398 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6204 | 9 | 0.145068% |
| B | 6204 | 68 | 1.096067% |
| C | 6204 | 54 | 0.870406% |
| D | 6204 | 11 | 0.177305% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7489 | 6205 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7489 | 6205 | 35 | 35 | 0.47% | 0.56% |  |
| C | 7489 | 6205 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7489 | 6205 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9983 | 60.66 | 776 | 763 | 152.0 |
| A | 0 | 226 | 6644 | 38.69 | 776 | 763 | 152.0 |
| A | 3 | 137 | 6621 | 38.54 | 776 | 763 | 152.0 |
| B | 3 | 64 | 166657 | 1157.63 | 784 | 765 | 143.3 |
| B | 0 | 230 | 27642 | 187.55 | 784 | 765 | 143.3 |
| B | 12 | 111 | 16790 | 111.83 | 784 | 765 | 143.3 |
| C | 14 | 238 | 124282 | 704.98 | 759 | 763 | 175.2 |
| C | 7 | 247 | 93814 | 531.09 | 759 | 763 | 175.2 |
| C | 0 | 10 | 9040 | 47.24 | 759 | 763 | 175.2 |
| D | 1 | 52 | 77549 | 418.63 | 758 | 737 | 183.5 |
| D | 2 | 244 | 60680 | 326.69 | 758 | 737 | 183.5 |
| D | 8 | 195 | 48470 | 260.15 | 758 | 737 | 183.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

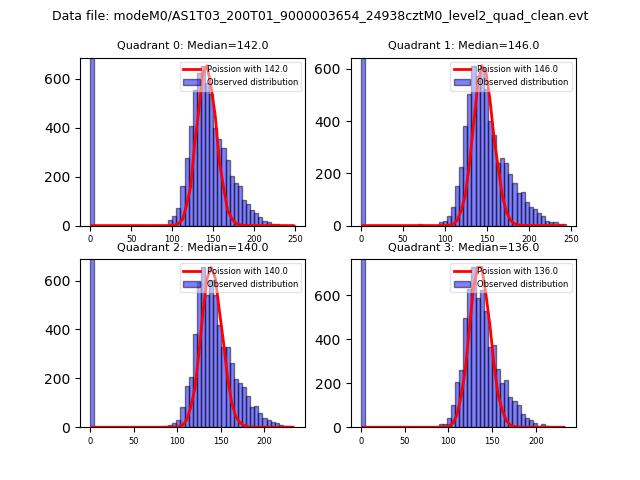

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
