| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_200T01_9000003654_24949cztM0_level2.evt | modeM0/AS1T03_200T01_9000003654_24949cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,992,960 | 126,524,160 |
| Size | 465.4 MB | 120.7 MB |
| Events in quadrant A | 3,147,633 | 856,717 |
| Events in quadrant B | 3,555,962 | 868,095 |
| Events in quadrant C | 3,267,785 | 832,057 |
| Events in quadrant D | 4,356,905 | 812,556 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13802 | 2 |
| B | 0 | 15029 | 2 |
| C | 0 | 14132 | 2 |
| D | 0 | 17451 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6635 | 36 | 0.542577% |
| B | 6636 | 72 | 1.084991% |
| C | 6635 | 94 | 1.416729% |
| D | 6635 | 90 | 1.356443% |

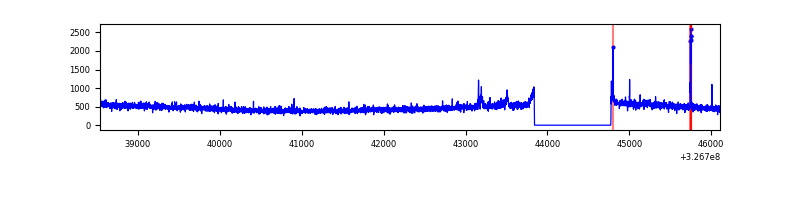

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7570 | 6636 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7571 | 6637 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7570 | 6636 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7570 | 6636 | 35 | 35 | 0.46% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 30008 | 182.62 | 795 | 778 | 160.1 |
| A | 4 | 2 | 28219 | 171.44 | 795 | 778 | 160.1 |
| A | 0 | 31 | 23424 | 141.48 | 795 | 778 | 160.1 |
| B | 15 | 33 | 196077 | 1297.0 | 794 | 774 | 150.6 |
| B | 4 | 80 | 119065 | 785.57 | 794 | 774 | 150.6 |
| B | 0 | 190 | 38847 | 252.84 | 794 | 774 | 150.6 |
| C | 14 | 238 | 122822 | 676.47 | 771 | 773 | 180.4 |
| C | 7 | 247 | 110767 | 609.66 | 771 | 773 | 180.4 |
| C | 2 | 16 | 18436 | 97.9 | 771 | 773 | 180.4 |
| D | 1 | 3 | 780424 | 4166.72 | 777 | 754 | 187.1 |
| D | 1 | 52 | 423226 | 2257.78 | 777 | 754 | 187.1 |
| D | 8 | 195 | 155680 | 827.96 | 777 | 754 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

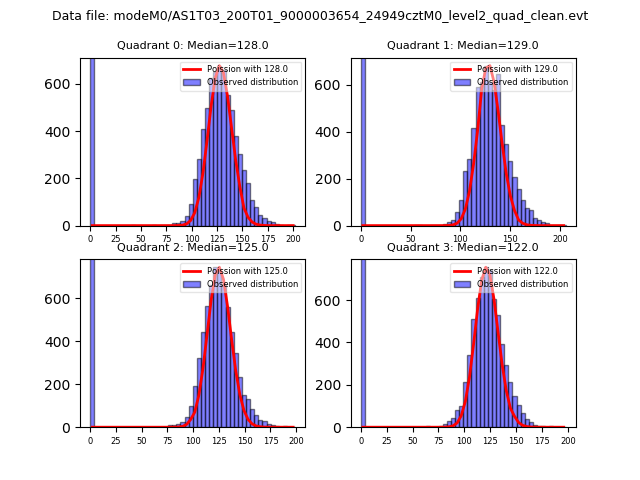

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

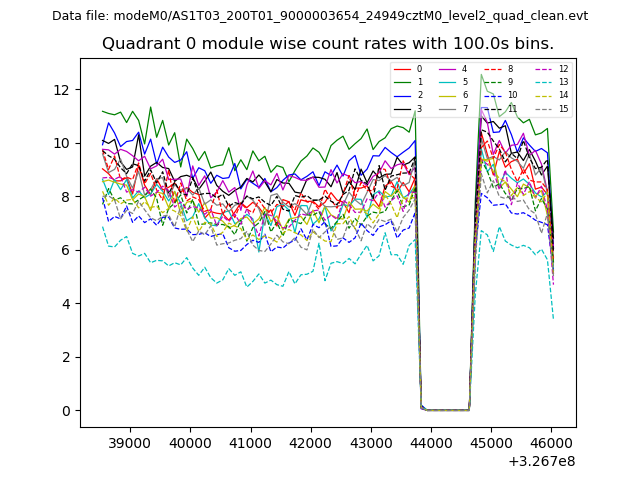

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

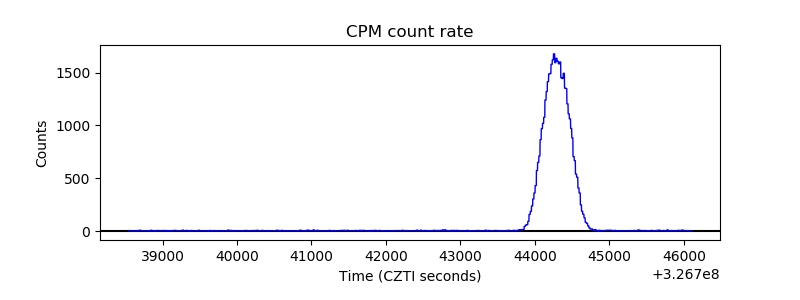

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
