| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_200T01_9000003654_24957cztM0_level2.evt | modeM0/AS1T03_200T01_9000003654_24957cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,832,000 | 129,260,160 |
| Size | 469.0 MB | 123.3 MB |
| Events in quadrant A | 3,105,240 | 884,892 |
| Events in quadrant B | 3,337,957 | 895,826 |
| Events in quadrant C | 3,338,715 | 851,213 |
| Events in quadrant D | 4,658,624 | 816,381 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13639 | 1 |
| B | 0 | 14144 | 1 |
| C | 0 | 14159 | 1 |
| D | 0 | 18369 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6690 | 114 | 1.704036% |
| B | 6690 | 143 | 2.137519% |
| C | 6690 | 166 | 2.481315% |
| D | 6691 | 319 | 4.767598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7490 | 6691 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7490 | 6691 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7490 | 6691 | 14 | 14 | 0.19% | 0.21% |  |
| D | 7491 | 6692 | 188 | 188 | 2.51% | 2.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10004 | 57.48 | 803 | 788 | 160.3 |
| A | 0 | 226 | 7012 | 38.82 | 803 | 788 | 160.3 |
| A | 3 | 137 | 6925 | 38.28 | 803 | 788 | 160.3 |
| B | 0 | 229 | 61214 | 404.05 | 799 | 779 | 149.6 |
| B | 5 | 172 | 47028 | 309.21 | 799 | 779 | 149.6 |
| B | 0 | 230 | 33530 | 218.96 | 799 | 779 | 149.6 |
| C | 7 | 247 | 132520 | 752.75 | 762 | 766 | 175.0 |
| C | 14 | 238 | 122768 | 697.04 | 762 | 766 | 175.0 |
| C | 0 | 207 | 83817 | 474.5 | 762 | 766 | 175.0 |
| D | 1 | 3 | 859675 | 4666.97 | 763 | 741 | 184.0 |
| D | 1 | 52 | 813476 | 4415.95 | 763 | 741 | 184.0 |
| D | 8 | 195 | 68468 | 367.99 | 763 | 741 | 184.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

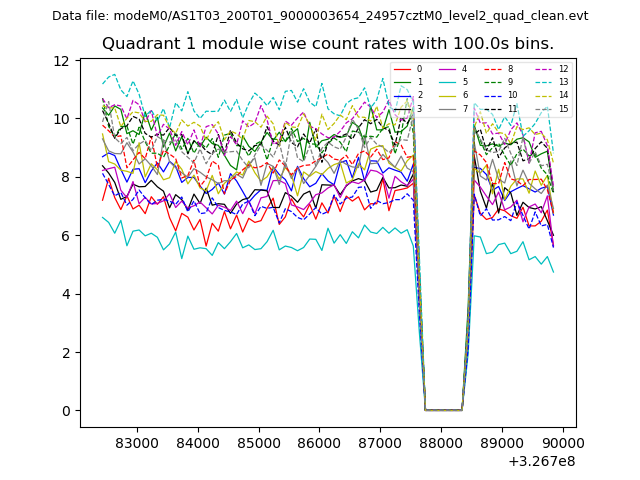

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

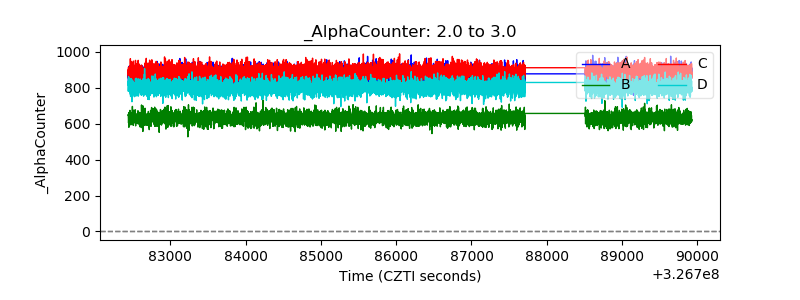

| Alpha Counter |  |

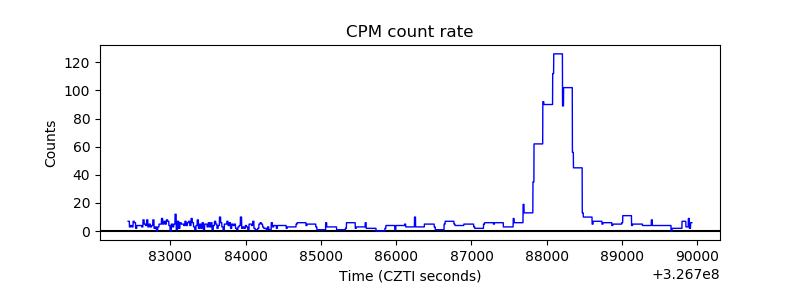

| _CPM_Rate |  |

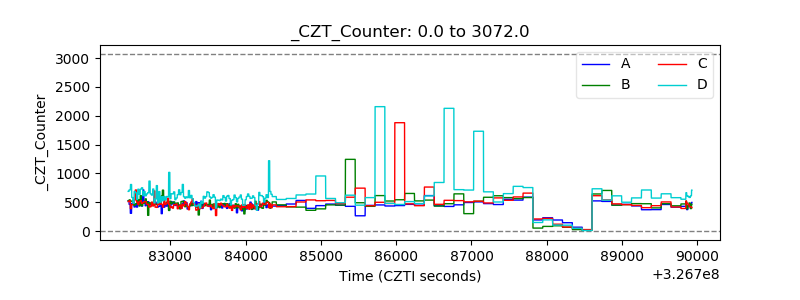

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

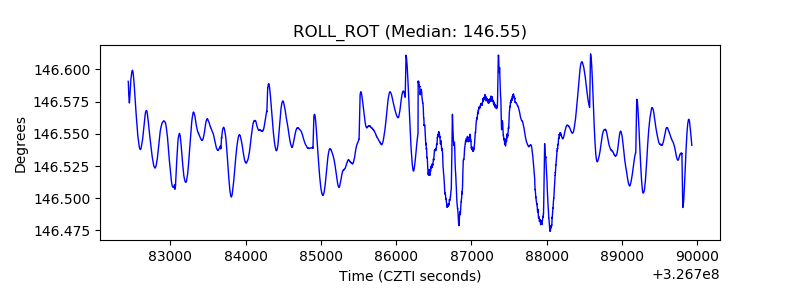

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

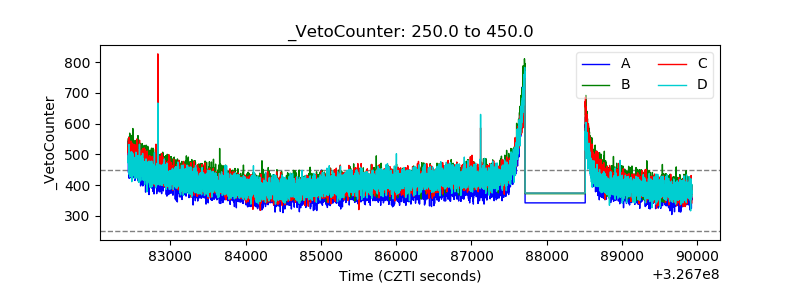

| Veto Counter |  |
