| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_200T01_9000003654_24962cztM0_level2.evt | modeM0/AS1T03_200T01_9000003654_24962cztM0_level2_quad_clean.evt |
| Size (bytes) | 752,719,680 | 181,316,160 |
| Size | 717.8 MB | 172.9 MB |
| Events in quadrant A | 4,420,477 | 1,233,969 |
| Events in quadrant B | 5,424,214 | 1,232,638 |
| Events in quadrant C | 4,810,237 | 1,183,283 |
| Events in quadrant D | 7,466,349 | 1,150,977 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 202 | 0 |
| B | 0 | 202 | 0 |
| C | 0 | 202 | 0 |
| D | 0 | 202 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20160 | 1 |
| B | 0 | 22674 | 1 |
| C | 0 | 20655 | 1 |
| D | 0 | 29333 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9969 | 40 | 0.401244% |
| B | 9970 | 181 | 1.815446% |
| C | 9970 | 88 | 0.882648% |
| D | 9970 | 356 | 3.570712% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10459 | 9970 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10460 | 9971 | 89 | 89 | 0.85% | 0.89% |  |
| C | 10460 | 9971 | 2 | 2 | 0.02% | 0.02% |  |
| D | 10460 | 9971 | 263 | 263 | 2.51% | 2.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 16283 | 65.82 | 1143 | 1118 | 230.4 |
| A | 3 | 137 | 10209 | 39.46 | 1143 | 1118 | 230.4 |
| A | 0 | 226 | 9988 | 38.5 | 1143 | 1118 | 230.4 |
| B | 0 | 229 | 307092 | 1440.87 | 1132 | 1105 | 212.4 |
| B | 10 | 246 | 196237 | 918.86 | 1132 | 1105 | 212.4 |
| B | 3 | 64 | 192941 | 903.34 | 1132 | 1105 | 212.4 |
| C | 7 | 247 | 286183 | 1114.79 | 1097 | 1103 | 255.7 |
| C | 14 | 238 | 175329 | 681.3 | 1097 | 1103 | 255.7 |
| C | 2 | 16 | 31696 | 119.63 | 1097 | 1103 | 255.7 |
| D | 1 | 52 | 1714764 | 6413.46 | 1104 | 1070 | 267.2 |
| D | 1 | 3 | 971227 | 3630.79 | 1104 | 1070 | 267.2 |
| D | 8 | 195 | 492296 | 1838.4 | 1104 | 1070 | 267.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

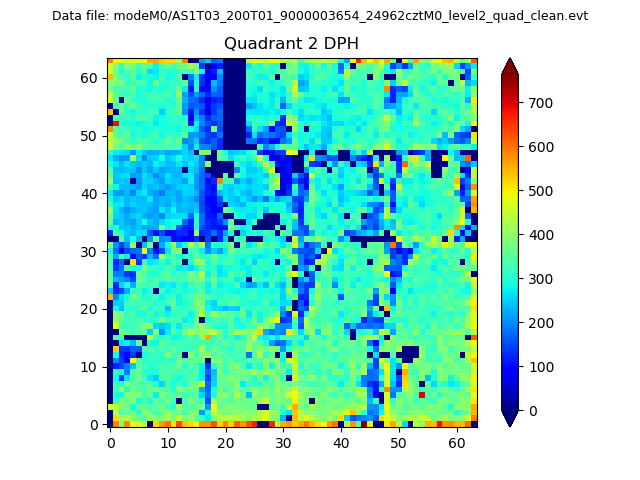

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

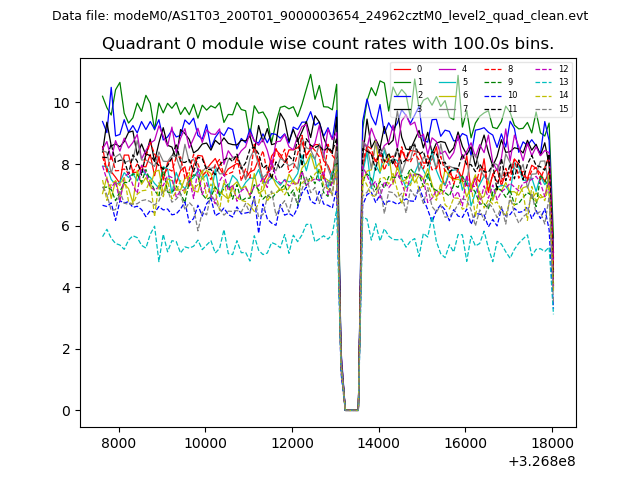

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

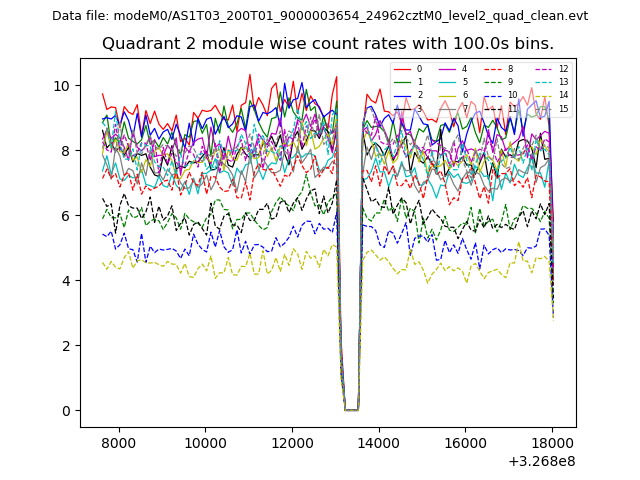

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

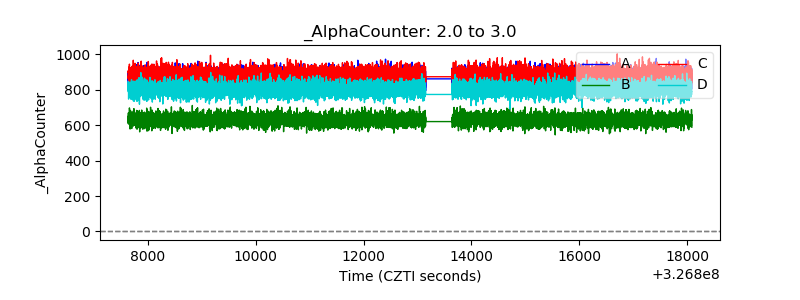

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

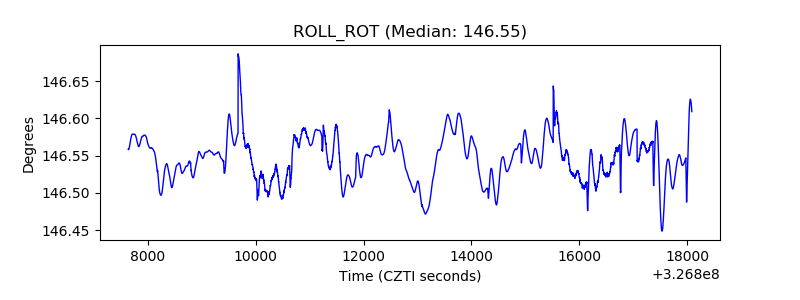

| _ROLL_ROT |  |

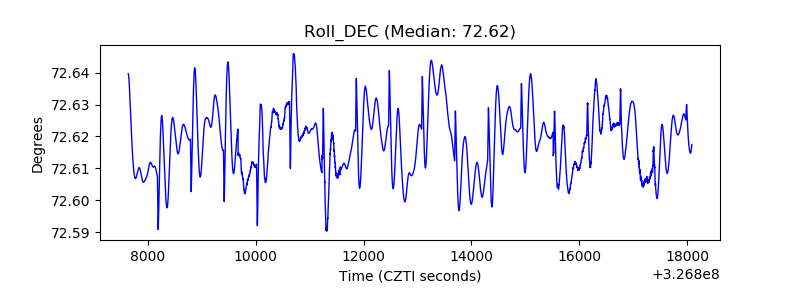

| _Roll_DEC |  |

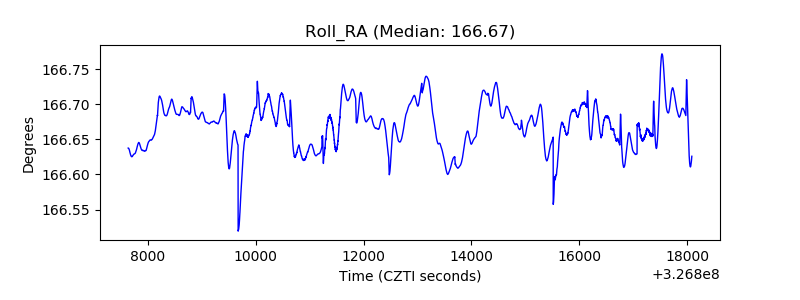

| _Roll_RA |  |
| Veto Counter |  |
