| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_200T01_9000003654_24963cztM0_level2.evt | modeM0/AS1T03_200T01_9000003654_24963cztM0_level2_quad_clean.evt |
| Size (bytes) | 664,704,000 | 164,940,480 |
| Size | 633.9 MB | 157.3 MB |
| Events in quadrant A | 4,095,726 | 1,121,890 |
| Events in quadrant B | 4,409,639 | 1,132,572 |
| Events in quadrant C | 5,048,052 | 1,070,633 |
| Events in quadrant D | 5,978,465 | 1,057,455 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 182 | 0 |
| B | 0 | 182 | 0 |
| C | 0 | 182 | 0 |
| D | 0 | 182 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18050 | 2 |
| B | 0 | 18874 | 2 |
| C | 0 | 20575 | 2 |
| D | 0 | 23916 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8831 | 59 | 0.668101% |
| B | 8832 | 86 | 0.973732% |
| C | 8832 | 360 | 4.076087% |
| D | 8832 | 284 | 3.215580% |

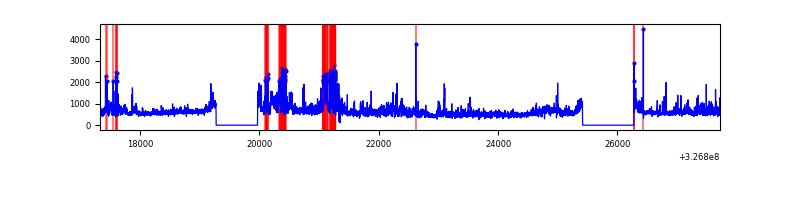

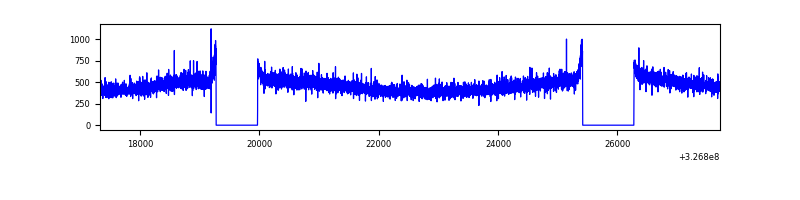

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10386 | 8833 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10387 | 8834 | 14 | 14 | 0.13% | 0.16% |  |
| C | 10387 | 8833 | 163 | 163 | 1.57% | 1.85% |  |
| D | 10387 | 8834 | 101 | 101 | 0.97% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14433 | 63.08 | 1057 | 1033 | 212.4 |
| A | 3 | 137 | 9807 | 41.3 | 1057 | 1033 | 212.4 |
| A | 0 | 226 | 9076 | 37.86 | 1057 | 1033 | 212.4 |
| B | 3 | 64 | 97019 | 477.56 | 1052 | 1023 | 201.0 |
| B | 0 | 190 | 51287 | 250.05 | 1052 | 1023 | 201.0 |
| B | 5 | 172 | 46921 | 228.33 | 1052 | 1023 | 201.0 |
| C | 7 | 247 | 844885 | 3609.33 | 1003 | 1010 | 233.8 |
| C | 14 | 238 | 157840 | 670.78 | 1003 | 1010 | 233.8 |
| C | 0 | 207 | 51277 | 215.0 | 1003 | 1010 | 233.8 |
| D | 1 | 52 | 1363938 | 5537.39 | 1020 | 990 | 246.1 |
| D | 1 | 3 | 353326 | 1431.47 | 1020 | 990 | 246.1 |
| D | 8 | 195 | 309883 | 1254.97 | 1020 | 990 | 246.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

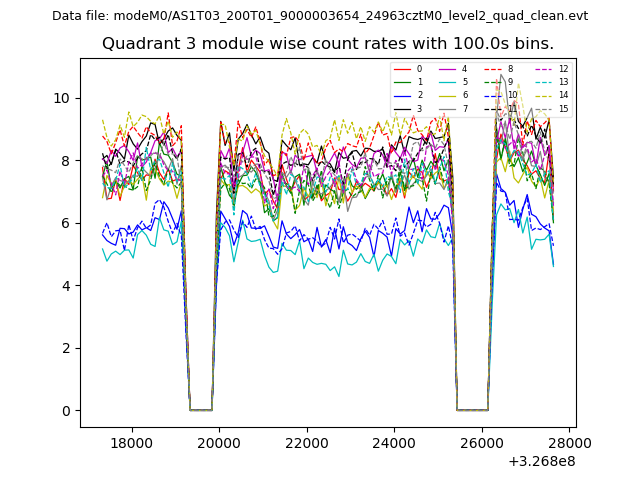

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

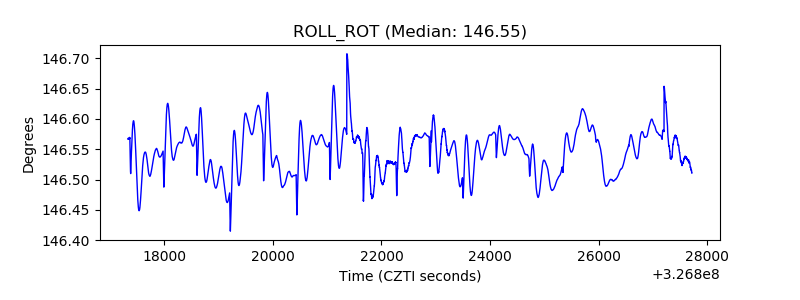

| _ROLL_ROT |  |

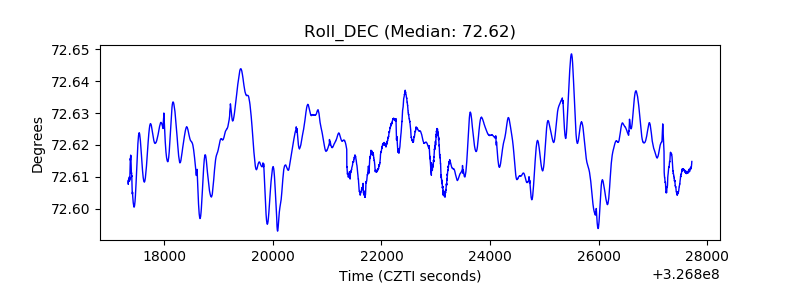

| _Roll_DEC |  |

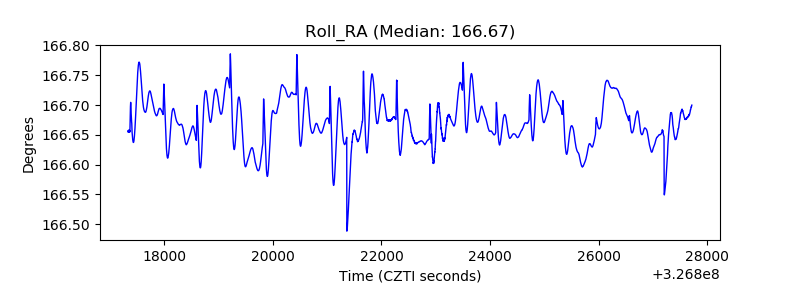

| _Roll_RA |  |

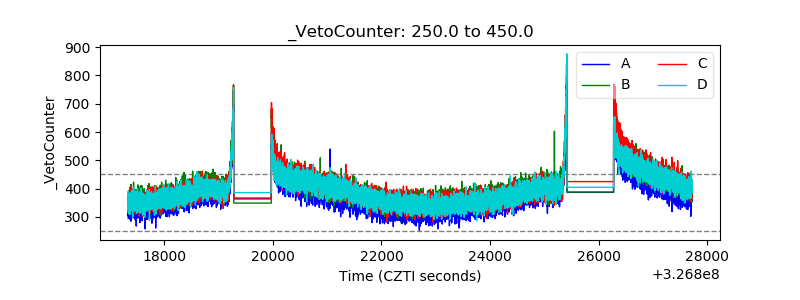

| Veto Counter |  |
