| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_200T01_9000003654_24971cztM0_level2.evt | modeM0/AS1T03_200T01_9000003654_24971cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,072,320 | 109,298,880 |
| Size | 433.0 MB | 104.2 MB |
| Events in quadrant A | 2,622,031 | 757,557 |
| Events in quadrant B | 3,233,371 | 758,025 |
| Events in quadrant C | 2,774,493 | 728,393 |
| Events in quadrant D | 4,738,419 | 671,758 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11469 | 1 |
| B | 0 | 13243 | 1 |
| C | 0 | 11977 | 1 |
| D | 0 | 18018 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5631 | 41 | 0.728112% |
| B | 5632 | 253 | 4.492188% |
| C | 5632 | 73 | 1.296165% |
| D | 5632 | 692 | 12.286932% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6706 | 5632 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6707 | 5633 | 125 | 125 | 1.86% | 2.22% |  |
| C | 6707 | 5633 | 3 | 3 | 0.04% | 0.05% |  |
| D | 6707 | 5633 | 605 | 605 | 9.02% | 10.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8835 | 60.45 | 679 | 666 | 135.1 |
| A | 3 | 137 | 5897 | 38.71 | 679 | 666 | 135.1 |
| A | 0 | 226 | 5834 | 38.24 | 679 | 666 | 135.1 |
| B | 5 | 172 | 296843 | 2389.24 | 667 | 650 | 124.0 |
| B | 3 | 64 | 142544 | 1144.59 | 667 | 650 | 124.0 |
| B | 10 | 246 | 101435 | 812.98 | 667 | 650 | 124.0 |
| C | 7 | 247 | 144480 | 962.9 | 645 | 648 | 149.4 |
| C | 14 | 238 | 105692 | 703.23 | 645 | 648 | 149.4 |
| C | 0 | 207 | 7563 | 46.29 | 645 | 648 | 149.4 |
| D | 7 | 238 | 1412398 | 9350.96 | 627 | 610 | 151.0 |
| D | 1 | 52 | 472043 | 3122.53 | 627 | 610 | 151.0 |
| D | 8 | 195 | 326834 | 2160.74 | 627 | 610 | 151.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

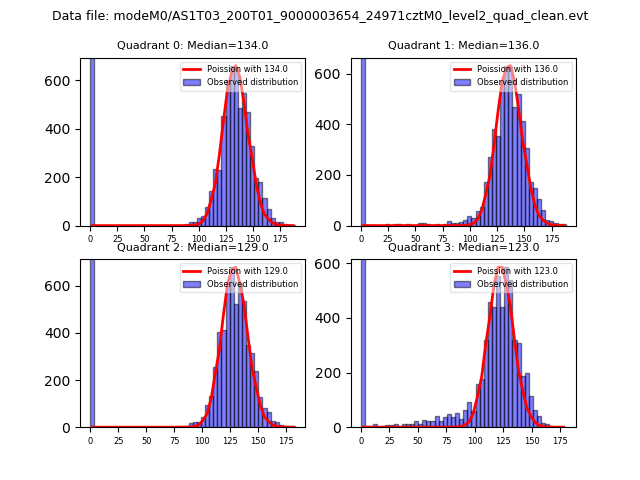

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

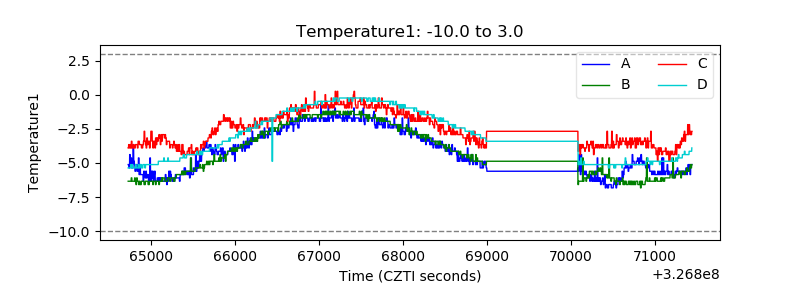

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

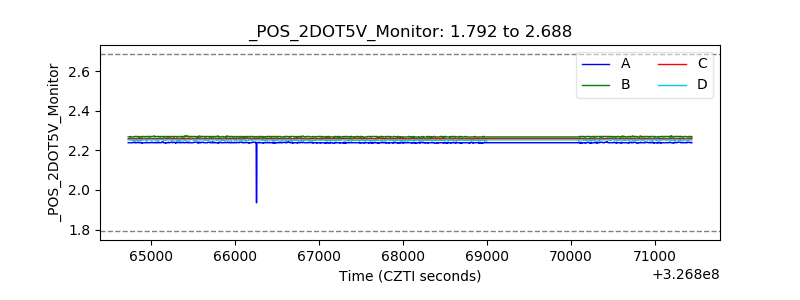

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

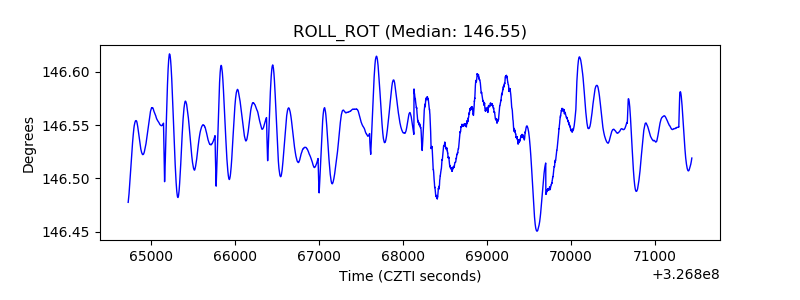

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
