| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T18_9000003658_24986cztM0_level2.evt | modeM0/AS1A08_003T18_9000003658_24986cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,431,360 | 74,165,760 |
| Size | 507.8 MB | 70.7 MB |
| Events in quadrant A | 3,251,634 | 458,918 |
| Events in quadrant B | 3,335,824 | 467,291 |
| Events in quadrant C | 4,124,065 | 434,868 |
| Events in quadrant D | 4,962,267 | 420,683 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13692 | 2 |
| B | 0 | 13835 | 3 |
| C | 0 | 16470 | 2 |
| D | 0 | 19324 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6658 | 48 | 0.720937% |
| B | 6657 | 77 | 1.156677% |
| C | 6657 | 150 | 2.253267% |
| D | 6657 | 137 | 2.057984% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

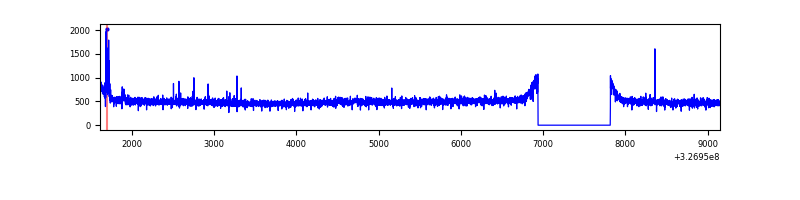

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7538 | 6659 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7537 | 6658 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7537 | 6658 | 22 | 22 | 0.29% | 0.33% |  |
| D | 7537 | 6658 | 99 | 99 | 1.31% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9449 | 50.42 | 843 | 826 | 171.0 |
| A | 3 | 137 | 7699 | 40.19 | 843 | 826 | 171.0 |
| A | 0 | 226 | 7370 | 38.27 | 843 | 826 | 171.0 |
| B | 3 | 64 | 27516 | 163.64 | 841 | 820 | 163.1 |
| B | 12 | 111 | 20007 | 117.61 | 841 | 820 | 163.1 |
| B | 11 | 111 | 18122 | 106.05 | 841 | 820 | 163.1 |
| C | 7 | 247 | 700209 | 3699.93 | 802 | 811 | 189.0 |
| C | 2 | 16 | 142308 | 748.54 | 802 | 811 | 189.0 |
| C | 14 | 238 | 128300 | 674.44 | 802 | 811 | 189.0 |
| D | 7 | 238 | 1569807 | 7987.48 | 802 | 779 | 196.4 |
| D | 10 | 70 | 123911 | 626.83 | 802 | 779 | 196.4 |
| D | 2 | 244 | 92540 | 467.13 | 802 | 779 | 196.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

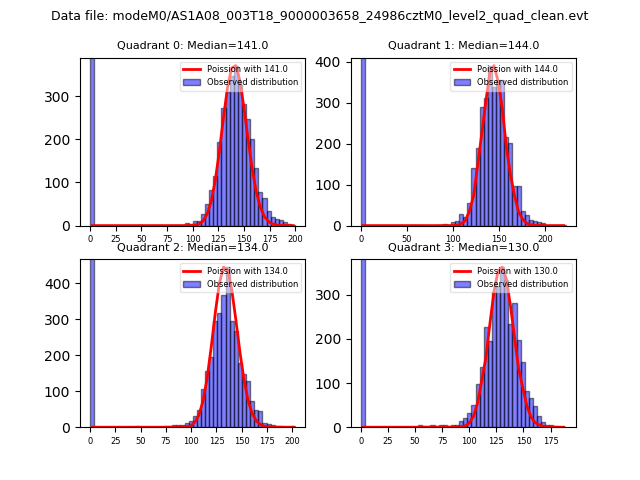

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

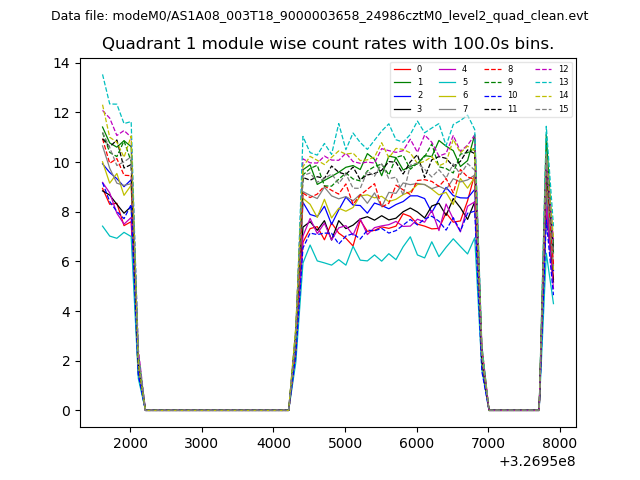

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

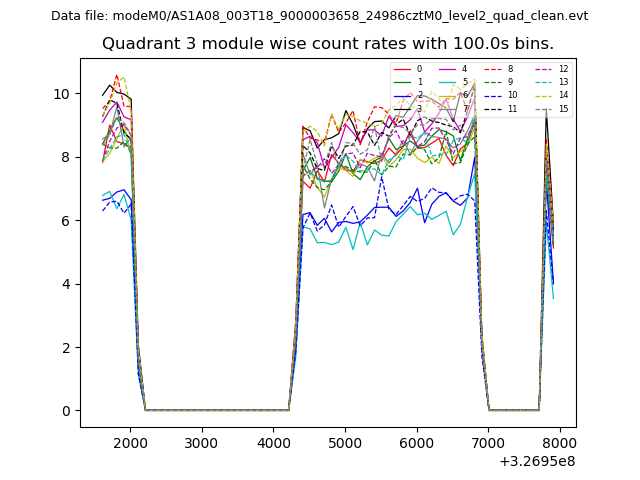

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

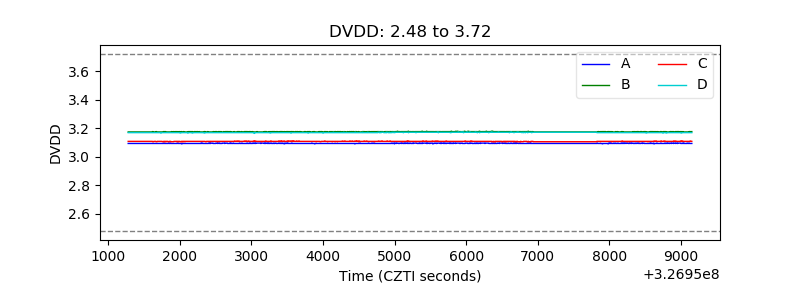

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

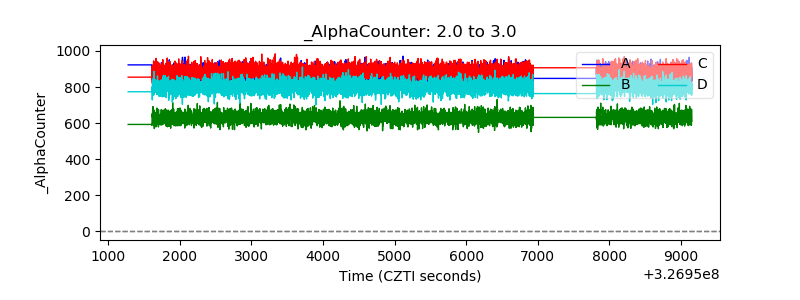

| Alpha Counter |  |

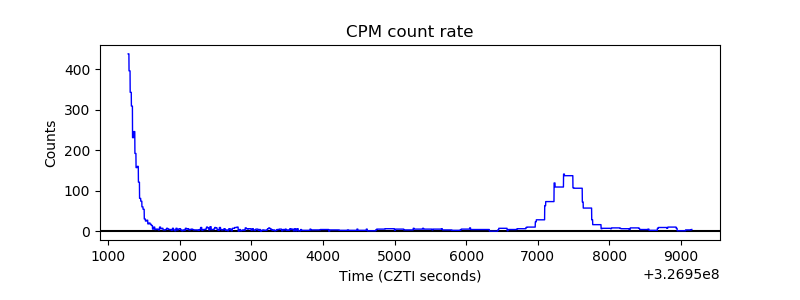

| _CPM_Rate |  |

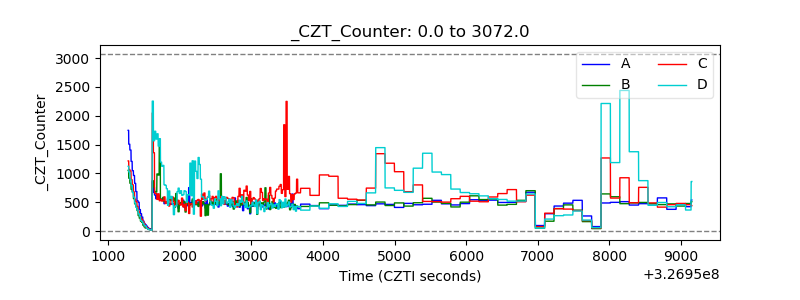

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
