| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_127T03_9000003662_24996cztM0_level2.evt | modeM0/AS1A07_127T03_9000003662_24996cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,182,400 | 87,701,760 |
| Size | 483.7 MB | 83.6 MB |
| Events in quadrant A | 3,339,082 | 565,960 |
| Events in quadrant B | 3,649,267 | 572,798 |
| Events in quadrant C | 4,459,556 | 547,133 |
| Events in quadrant D | 3,493,033 | 538,880 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14013 | 2 |
| B | 0 | 14907 | 2 |
| C | 0 | 17250 | 2 |
| D | 0 | 14466 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6175 | 67 | 1.085020% |
| B | 6175 | 150 | 2.429150% |
| C | 6175 | 581 | 9.408907% |
| D | 6174 | 57 | 0.923226% |

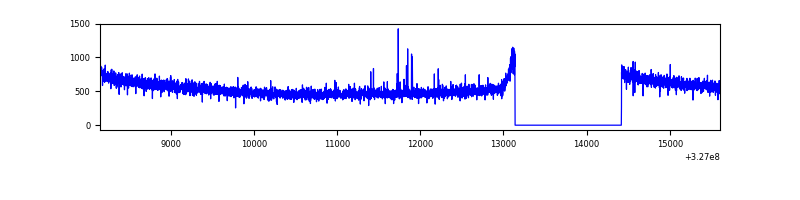

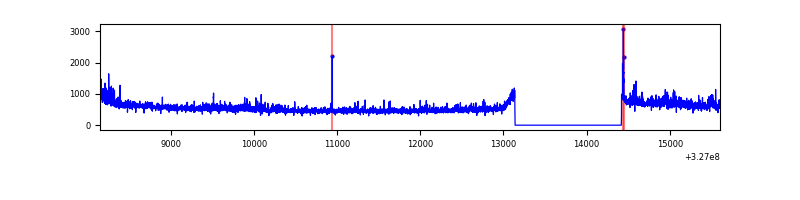

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

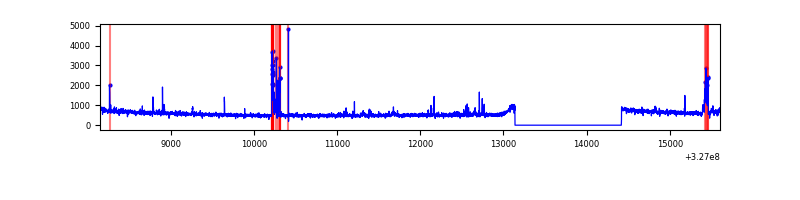

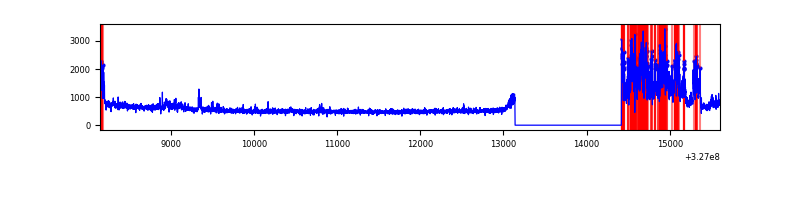

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7455 | 6176 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7455 | 6176 | 26 | 26 | 0.35% | 0.42% |  |
| C | 7455 | 6176 | 226 | 226 | 3.03% | 3.66% |  |
| D | 7454 | 6175 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 13193 | 72.96 | 863 | 847 | 169.2 |
| A | 13 | 254 | 9191 | 49.31 | 863 | 847 | 169.2 |
| A | 0 | 226 | 7434 | 38.92 | 863 | 847 | 169.2 |
| B | 3 | 64 | 253495 | 1591.79 | 858 | 840 | 158.7 |
| B | 5 | 172 | 22365 | 135.61 | 858 | 840 | 158.7 |
| B | 12 | 111 | 18538 | 111.5 | 858 | 840 | 158.7 |
| C | 7 | 247 | 1064851 | 5675.47 | 813 | 821 | 187.5 |
| C | 14 | 238 | 131883 | 699.07 | 813 | 821 | 187.5 |
| C | 0 | 10 | 83176 | 439.27 | 813 | 821 | 187.5 |
| D | 8 | 195 | 269031 | 1322.24 | 846 | 825 | 202.8 |
| D | 2 | 234 | 24559 | 117.01 | 846 | 825 | 202.8 |
| D | 2 | 153 | 14067 | 65.28 | 846 | 825 | 202.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

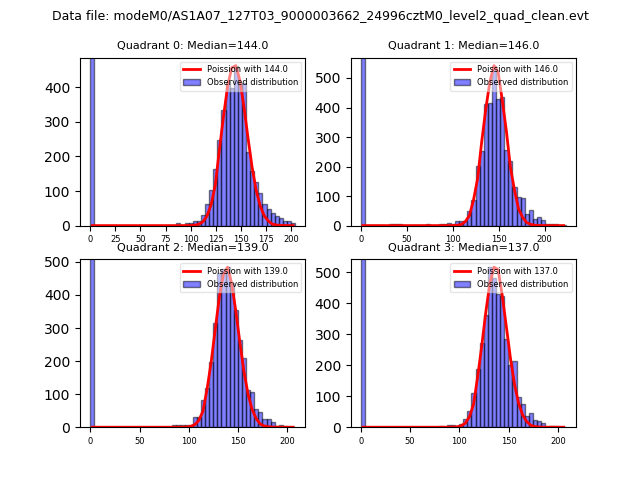

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

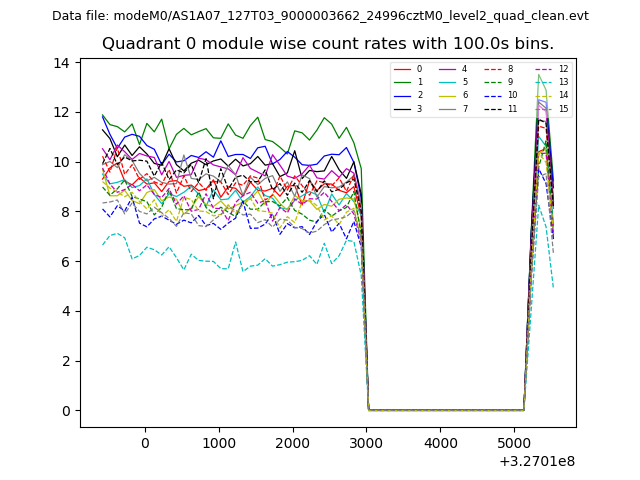

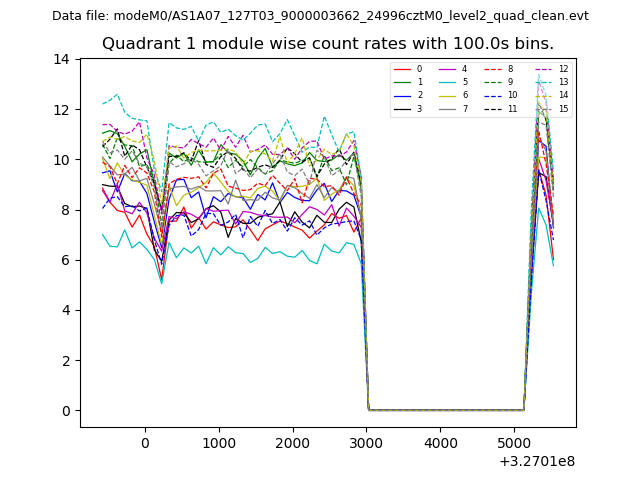

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

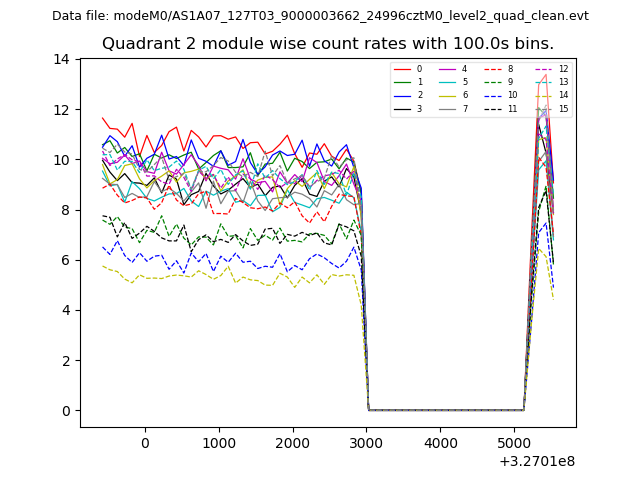

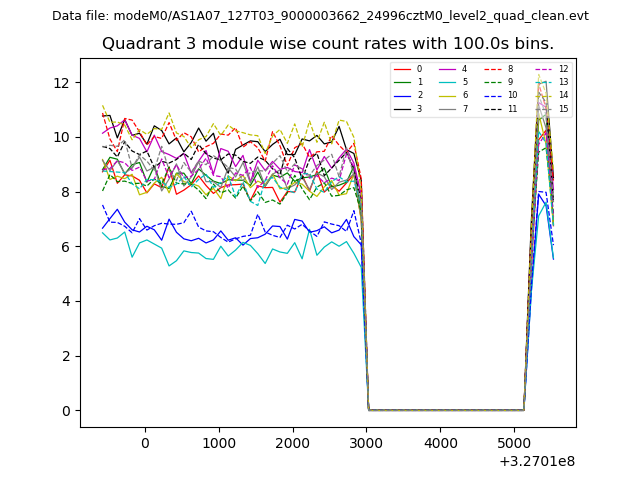

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

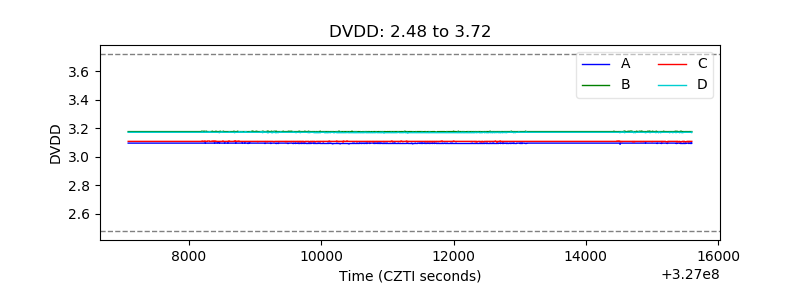

| D_VDD |  |

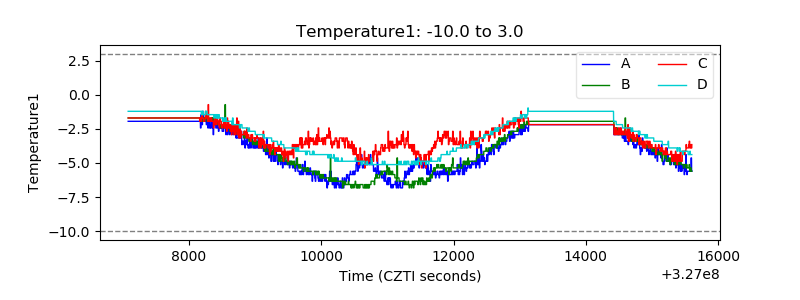

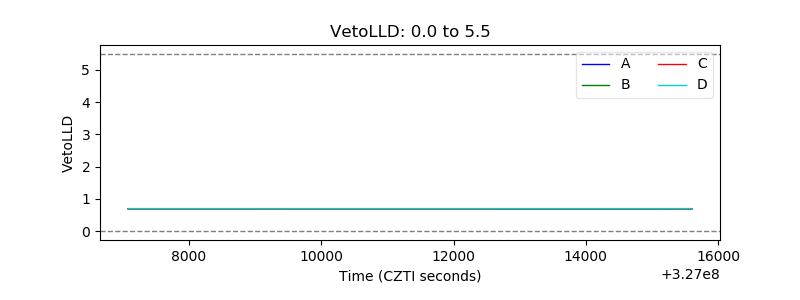

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

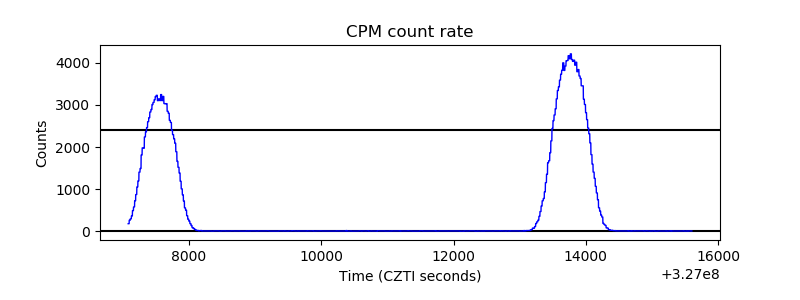

| _CPM_Rate |  |

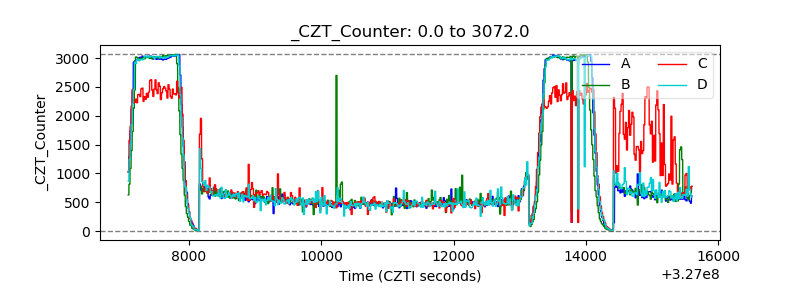

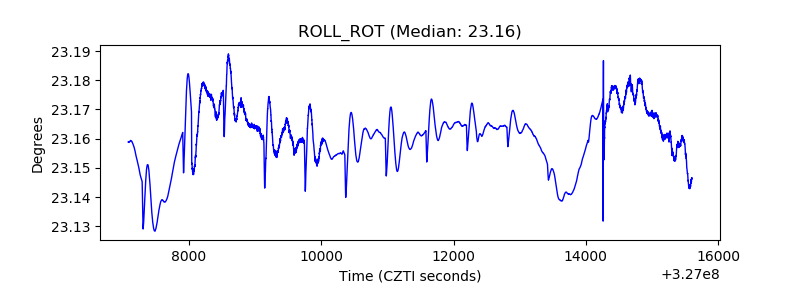

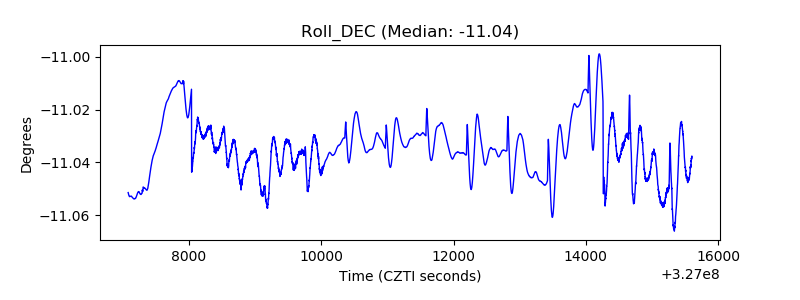

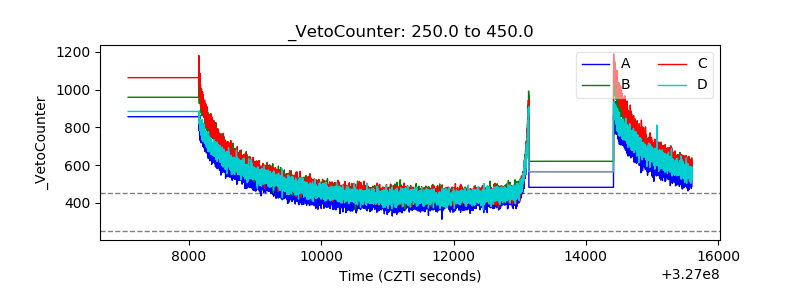

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
