| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T16_9000003666_25017cztM0_level2.evt | modeM0/AS1A07_027T16_9000003666_25017cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,450,607,040 | 194,232,960 |
| Size | 1.4 GB | 185.2 MB |
| Events in quadrant A | 6,587,934 | 1,293,067 |
| Events in quadrant B | 6,719,618 | 1,321,389 |
| Events in quadrant C | 21,103,778 | 1,112,363 |
| Events in quadrant D | 8,579,694 | 1,191,514 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 280 | 0 |
| B | 0 | 280 | 0 |
| C | 0 | 280 | 0 |
| D | 0 | 280 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28749 | 3 |
| B | 0 | 29034 | 3 |
| C | 0 | 72106 | 3 |
| D | 0 | 34626 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13937 | 352 | 2.525651% |
| B | 13937 | 355 | 2.547177% |
| C | 13937 | 6338 | 45.476071% |
| D | 13937 | 994 | 7.132094% |

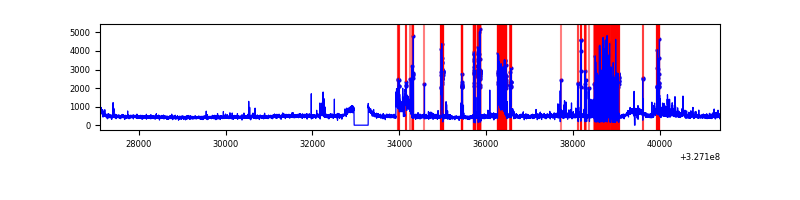

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14277 | 13939 | 0 | 0 | 0.00% | 0.00% |  |
| B | 14277 | 13939 | 2 | 2 | 0.01% | 0.01% |  |
| C | 14277 | 13939 | 4757 | 4757 | 33.32% | 34.13% |  |
| D | 14277 | 13939 | 484 | 484 | 3.39% | 3.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 18297 | 48.27 | 1706 | 1664 | 344.5 |
| A | 3 | 137 | 15888 | 41.28 | 1706 | 1664 | 344.5 |
| A | 0 | 226 | 14481 | 37.2 | 1706 | 1664 | 344.5 |
| B | 4 | 173 | 40382 | 119.83 | 1692 | 1645 | 323.3 |
| B | 12 | 111 | 39927 | 118.42 | 1692 | 1645 | 323.3 |
| B | 11 | 111 | 36634 | 108.23 | 1692 | 1645 | 323.3 |
| C | 7 | 247 | 14998880 | 43397.2 | 1491 | 1502 | 345.6 |
| C | 14 | 238 | 229640 | 660.15 | 1491 | 1502 | 345.6 |
| C | 7 | 226 | 48172 | 135.05 | 1491 | 1502 | 345.6 |
| D | 1 | 52 | 2114446 | 5406.53 | 1622 | 1572 | 390.8 |
| D | 8 | 195 | 199004 | 505.2 | 1622 | 1572 | 390.8 |
| D | 10 | 70 | 65722 | 164.15 | 1622 | 1572 | 390.8 |

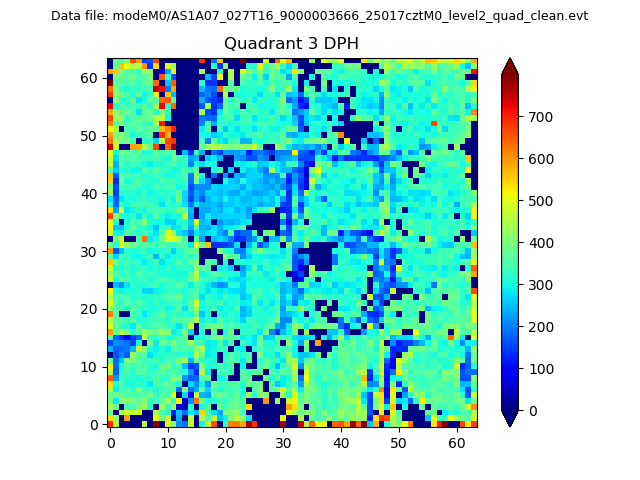

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

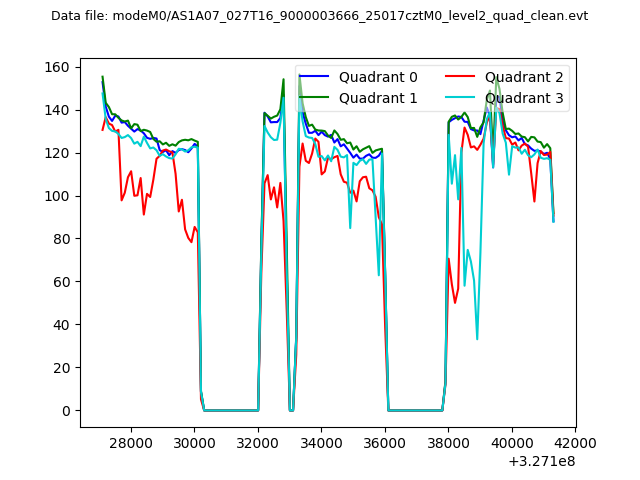

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

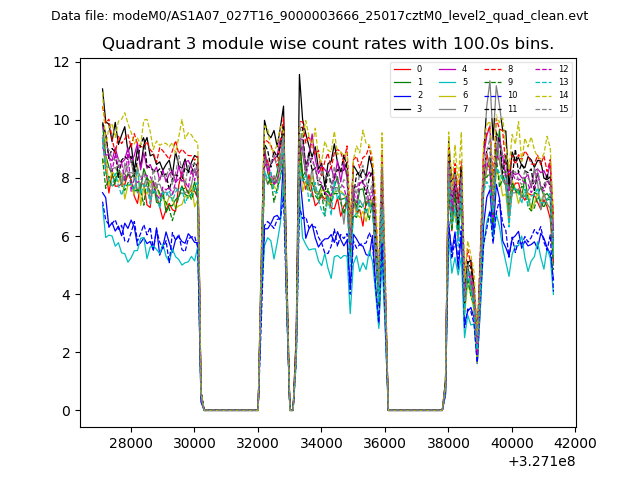

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

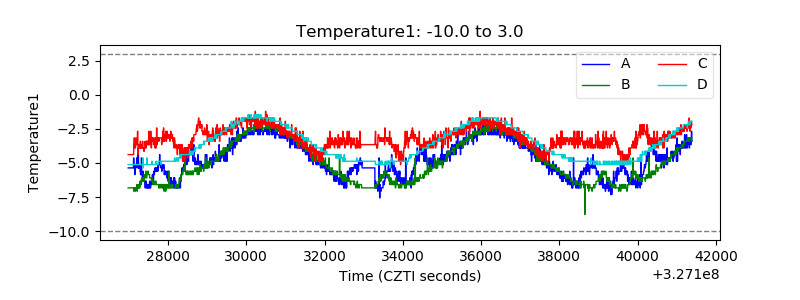

| Temperature 1 |  |

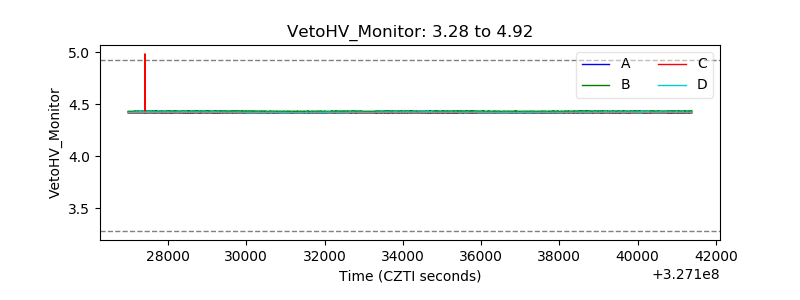

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

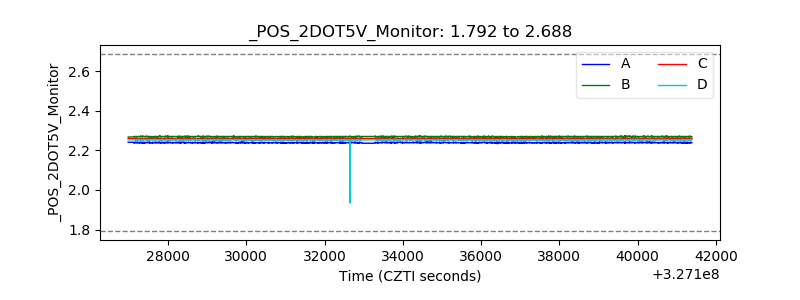

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

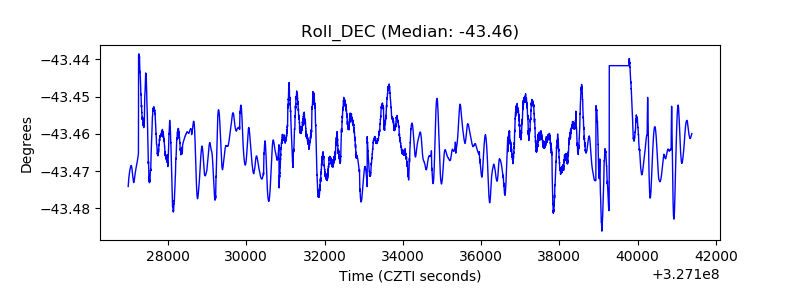

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
