| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T11_9000003668_25022cztM0_level2.evt | modeM0/AS1A07_027T11_9000003668_25022cztM0_level2_quad_clean.evt |
| Size (bytes) | 234,547,200 | 29,217,600 |
| Size | 223.7 MB | 27.9 MB |
| Events in quadrant A | 1,135,838 | 199,791 |
| Events in quadrant B | 1,213,769 | 204,619 |
| Events in quadrant C | 2,013,863 | 185,742 |
| Events in quadrant D | 2,595,804 | 141,909 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4617 | 1 |
| B | 0 | 4901 | 1 |
| C | 0 | 7494 | 5 |
| D | 0 | 9095 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2095 | 31 | 1.479714% |
| B | 2095 | 43 | 2.052506% |
| C | 2094 | 279 | 13.323782% |
| D | 2094 | 597 | 28.510029% |

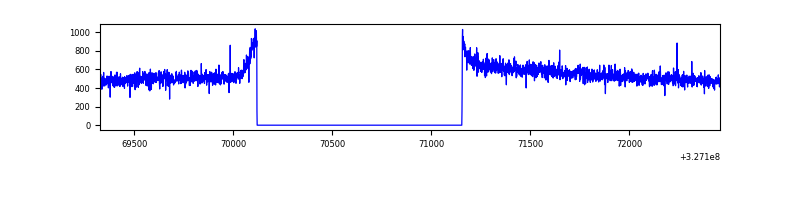

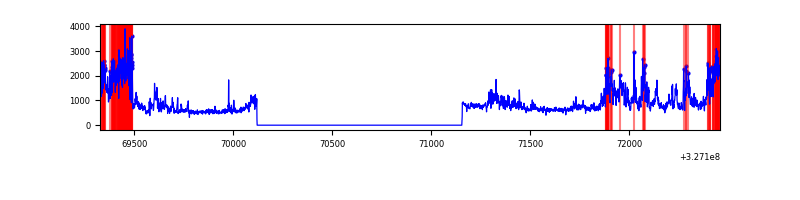

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3130 | 2096 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3130 | 2096 | 2 | 2 | 0.06% | 0.10% |  |
| C | 3129 | 2095 | 139 | 139 | 4.44% | 6.63% |  |
| D | 3129 | 2095 | 513 | 513 | 16.40% | 24.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2965 | 43.93 | 294 | 287 | 61.0 |
| A | 3 | 137 | 2627 | 38.39 | 294 | 287 | 61.0 |
| A | 0 | 226 | 2525 | 36.71 | 294 | 287 | 61.0 |
| B | 0 | 245 | 25535 | 435.97 | 289 | 281 | 57.9 |
| B | 4 | 80 | 21671 | 369.26 | 289 | 281 | 57.9 |
| B | 4 | 173 | 19594 | 333.41 | 289 | 281 | 57.9 |
| C | 7 | 247 | 898387 | 13724.37 | 273 | 273 | 65.4 |
| C | 14 | 238 | 42436 | 644.31 | 273 | 273 | 65.4 |
| C | 7 | 226 | 2806 | 38.71 | 273 | 273 | 65.4 |
| D | 7 | 238 | 1408363 | 22604.75 | 252 | 245 | 62.3 |
| D | 8 | 195 | 224361 | 3597.77 | 252 | 245 | 62.3 |
| D | 2 | 234 | 7853 | 122.13 | 252 | 245 | 62.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

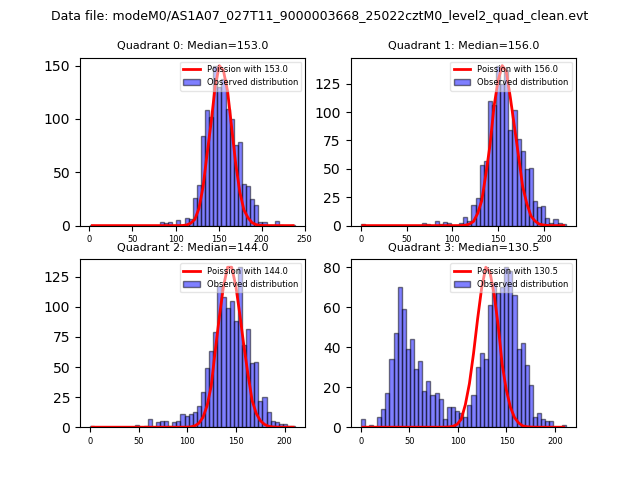

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

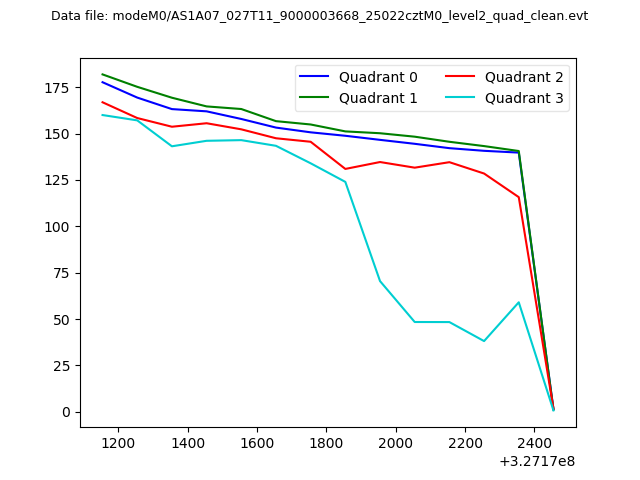

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

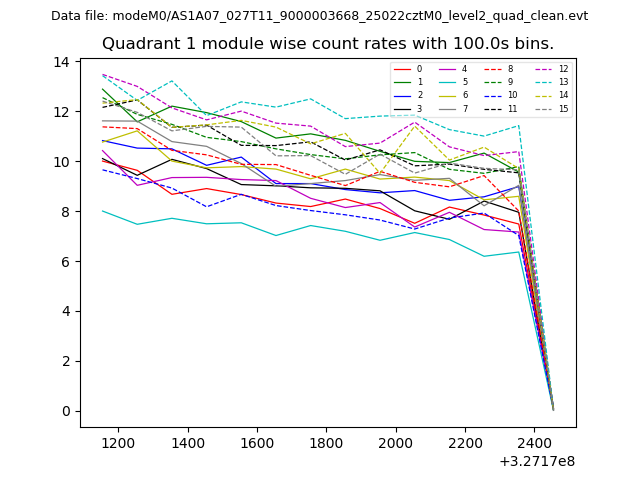

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

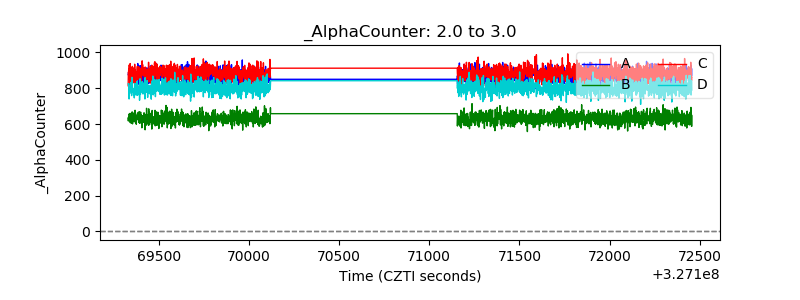

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

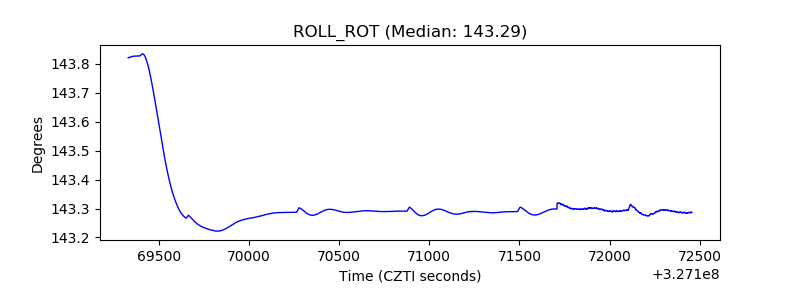

| _ROLL_ROT |  |
| _Roll_DEC |  |

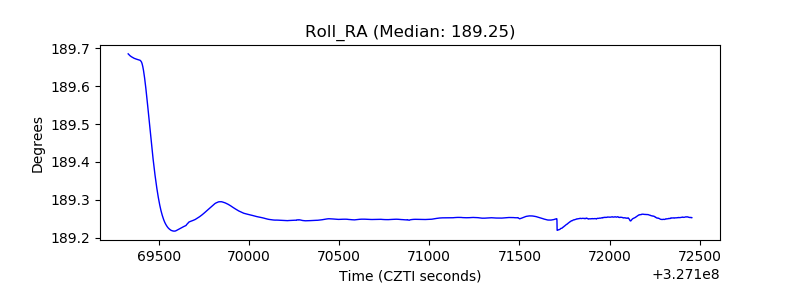

| _Roll_RA |  |
