| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_134T03_9000003670_25032cztM0_level2.evt | modeM0/AS1A07_134T03_9000003670_25032cztM0_level2_quad_clean.evt |
| Size (bytes) | 327,049,920 | 34,548,480 |
| Size | 311.9 MB | 32.9 MB |
| Events in quadrant A | 1,755,517 | 197,086 |
| Events in quadrant B | 1,765,054 | 201,666 |
| Events in quadrant C | 1,852,114 | 192,721 |
| Events in quadrant D | 4,272,514 | 184,831 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7655 | 0 |
| B | 0 | 7659 | 0 |
| C | 0 | 7881 | 0 |
| D | 0 | 15393 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3810 | 3 | 0.078740% |
| B | 3811 | 2 | 0.052480% |
| C | 3811 | 22 | 0.577276% |
| D | 3811 | 185 | 4.854369% |

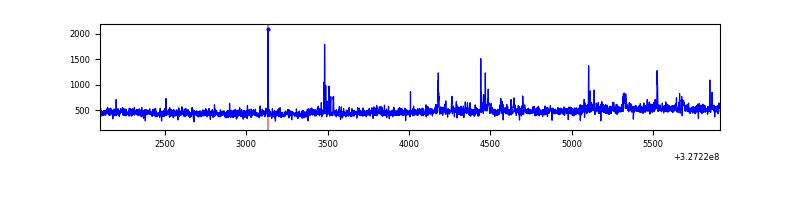

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3810 | 3810 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3811 | 3811 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3811 | 3811 | 1 | 1 | 0.03% | 0.03% |  |
| D | 3811 | 3811 | 164 | 164 | 4.30% | 4.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 208 | 13727 | 142.29 | 452 | 442 | 93.4 |
| A | 13 | 254 | 5029 | 49.13 | 452 | 442 | 93.4 |
| A | 3 | 137 | 4234 | 40.61 | 452 | 442 | 93.4 |
| B | 12 | 111 | 10642 | 117.41 | 447 | 436 | 86.9 |
| B | 11 | 111 | 9848 | 108.28 | 447 | 436 | 86.9 |
| B | 14 | 111 | 8723 | 95.33 | 447 | 436 | 86.9 |
| C | 7 | 247 | 86285 | 830.05 | 432 | 434 | 103.4 |
| C | 14 | 238 | 69529 | 668.04 | 432 | 434 | 103.4 |
| C | 0 | 239 | 8569 | 78.65 | 432 | 434 | 103.4 |
| D | 8 | 195 | 2180117 | 20278.79 | 434 | 421 | 107.5 |
| D | 1 | 52 | 405360 | 3767.35 | 434 | 421 | 107.5 |
| D | 10 | 70 | 17008 | 154.32 | 434 | 421 | 107.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

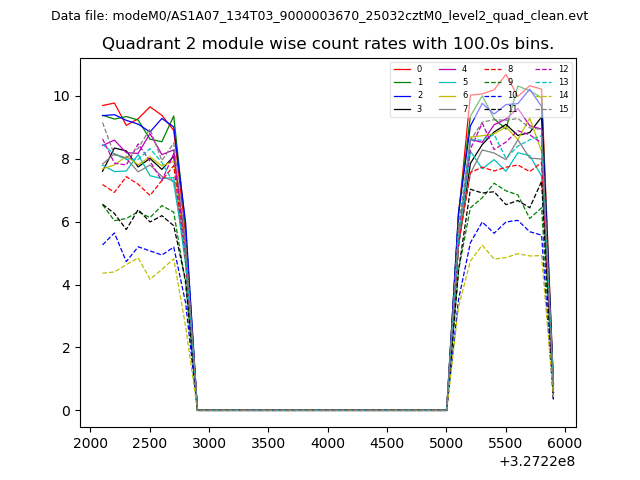

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

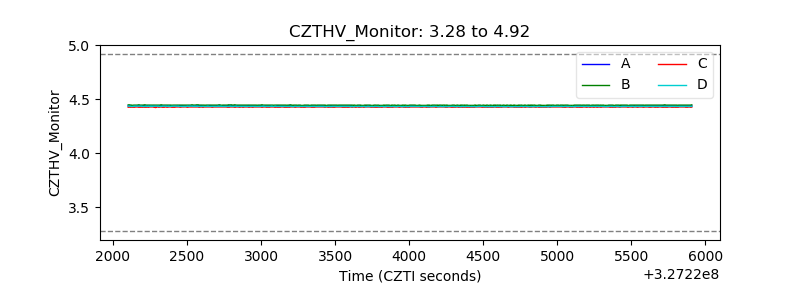

| CZT HV Monitor |  |
| D_VDD |  |

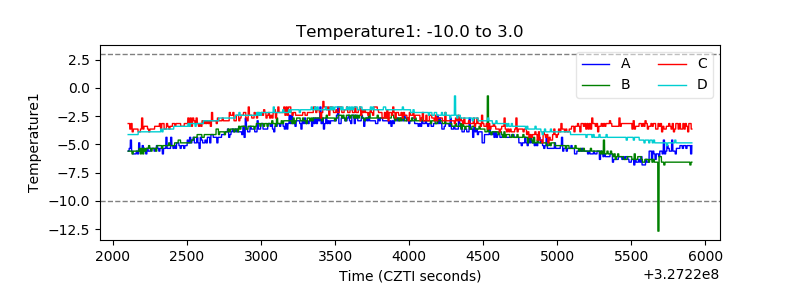

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

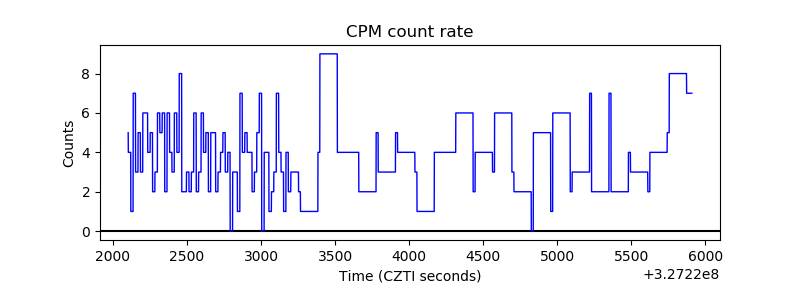

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

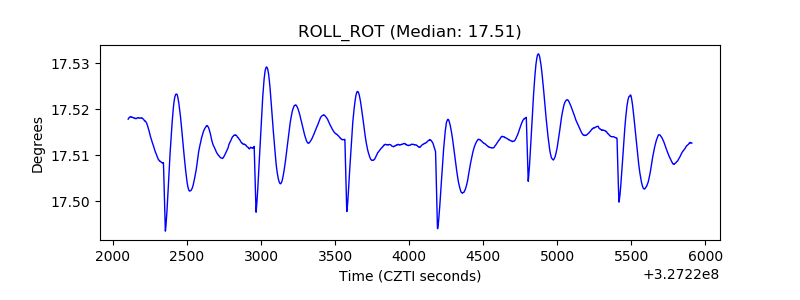

| _ROLL_ROT |  |

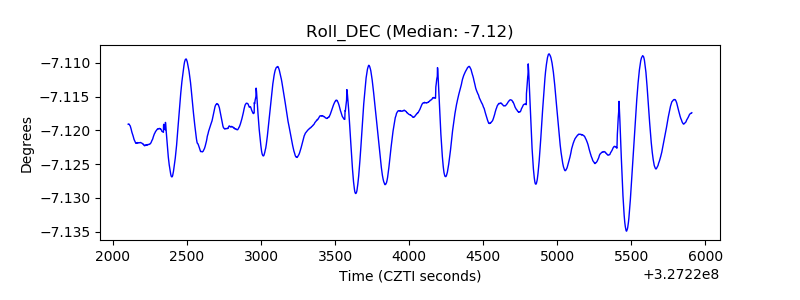

| _Roll_DEC |  |
| _Roll_RA |  |

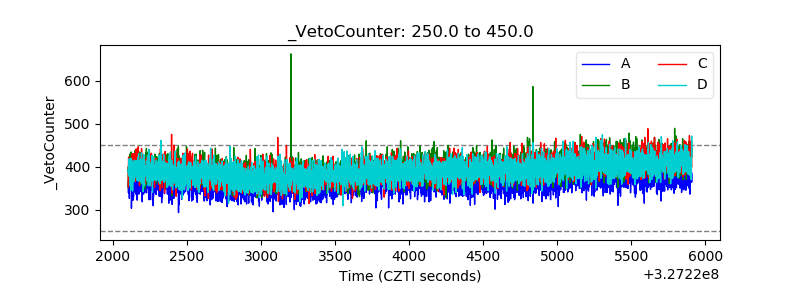

| Veto Counter |  |
