| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_206T01_9000003672_25036cztM0_level2.evt | modeM0/AS1T03_206T01_9000003672_25036cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,061,702,720 | 300,029,760 |
| Size | 1.9 GB | 286.1 MB |
| Events in quadrant A | 11,382,147 | 1,926,066 |
| Events in quadrant B | 11,846,318 | 1,942,238 |
| Events in quadrant C | 11,835,060 | 1,860,475 |
| Events in quadrant D | 25,762,753 | 1,710,298 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 486 | 0 |
| B | 0 | 486 | 0 |
| C | 0 | 486 | 0 |
| D | 0 | 486 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49496 | 4 |
| B | 0 | 50487 | 4 |
| C | 0 | 49989 | 4 |
| D | 0 | 93114 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23950 | 228 | 0.951983% |
| B | 23950 | 311 | 1.298539% |
| C | 23949 | 358 | 1.494843% |
| D | 23949 | 2394 | 9.996242% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

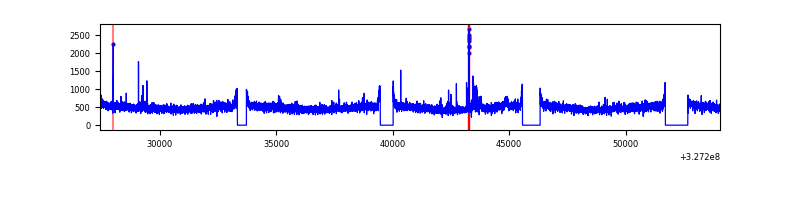

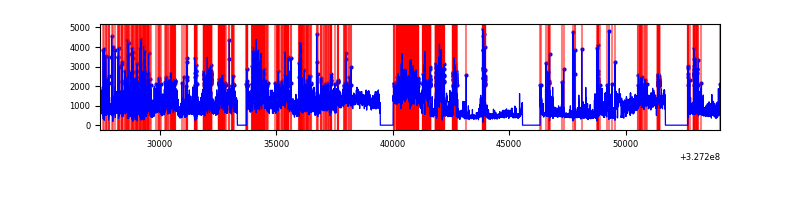

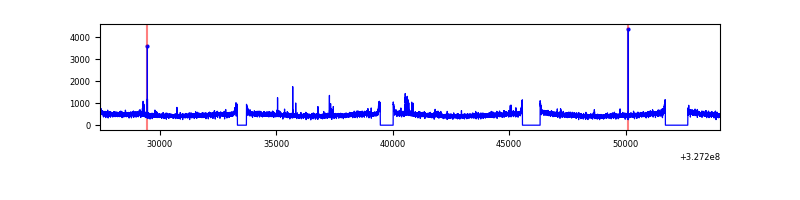

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26620 | 23954 | 2 | 2 | 0.01% | 0.01% |  |
| B | 26620 | 23952 | 25 | 25 | 0.09% | 0.10% |  |
| C | 26619 | 23953 | 9 | 9 | 0.03% | 0.04% |  |
| D | 26619 | 23951 | 1700 | 1700 | 6.39% | 7.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 208 | 92388 | 152.43 | 2902 | 2834 | 587.5 |
| A | 4 | 2 | 68212 | 111.28 | 2902 | 2834 | 587.5 |
| A | 15 | 174 | 42567 | 67.63 | 2902 | 2834 | 587.5 |
| B | 0 | 245 | 159435 | 286.73 | 2884 | 2811 | 546.2 |
| B | 3 | 64 | 92108 | 163.47 | 2884 | 2811 | 546.2 |
| B | 15 | 33 | 88473 | 156.82 | 2884 | 2811 | 546.2 |
| C | 7 | 247 | 464599 | 702.83 | 2787 | 2802 | 657.1 |
| C | 14 | 238 | 440844 | 666.68 | 2787 | 2802 | 657.1 |
| C | 0 | 239 | 31325 | 43.41 | 2787 | 2802 | 657.1 |
| D | 7 | 238 | 6806240 | 10258.84 | 2734 | 2662 | 663.2 |
| D | 8 | 195 | 5387167 | 8119.08 | 2734 | 2662 | 663.2 |
| D | 1 | 52 | 2374008 | 3575.66 | 2734 | 2662 | 663.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

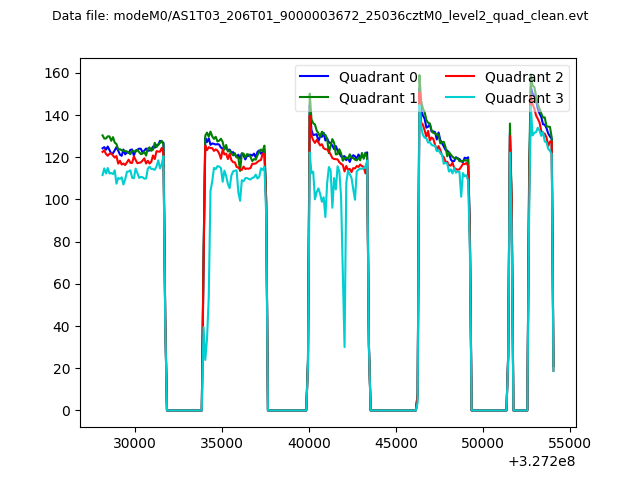

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

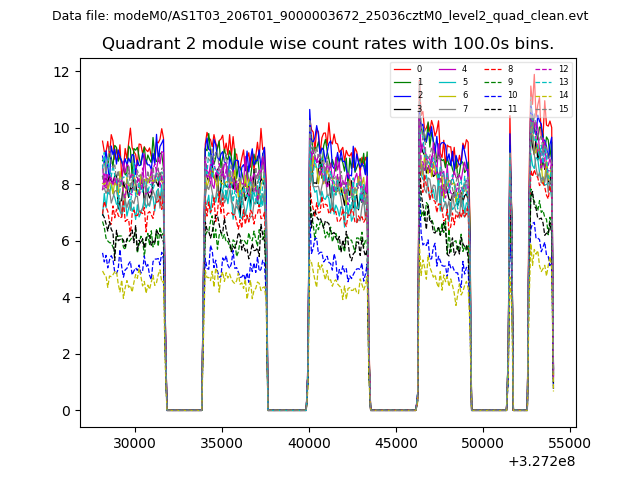

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

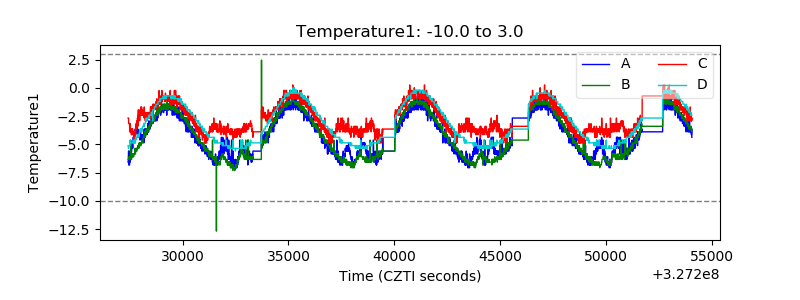

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

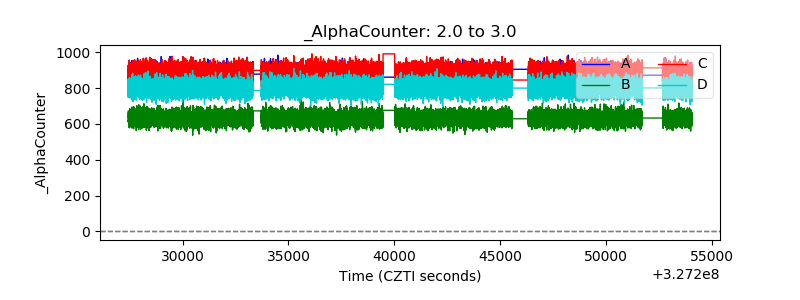

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

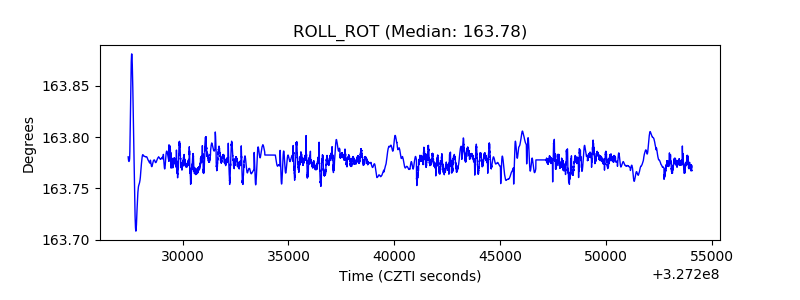

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
