| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_206T01_9000003672_25055cztM0_level2.evt | modeM0/AS1T03_206T01_9000003672_25055cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,525,760 | 92,643,840 |
| Size | 465.9 MB | 88.4 MB |
| Events in quadrant A | 3,156,800 | 614,475 |
| Events in quadrant B | 3,321,023 | 636,889 |
| Events in quadrant C | 3,447,781 | 584,219 |
| Events in quadrant D | 4,455,564 | 543,853 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13010 | 1 |
| B | 0 | 13597 | 1 |
| C | 0 | 14004 | 1 |
| D | 0 | 17284 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6111 | 13 | 0.212731% |
| B | 6111 | 27 | 0.441826% |
| C | 6111 | 68 | 1.112748% |
| D | 6111 | 189 | 3.092784% |

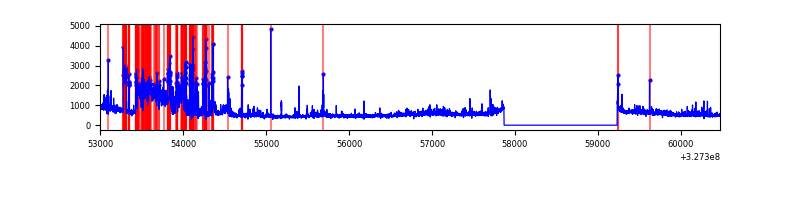

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7476 | 6112 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7476 | 6112 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7476 | 6112 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7476 | 6112 | 214 | 214 | 2.86% | 3.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10654 | 60.09 | 819 | 805 | 163.9 |
| A | 0 | 226 | 7113 | 38.48 | 819 | 805 | 163.9 |
| A | 3 | 137 | 7024 | 37.94 | 819 | 805 | 163.9 |
| B | 0 | 190 | 29823 | 191.5 | 824 | 807 | 151.5 |
| B | 5 | 172 | 20824 | 132.11 | 824 | 807 | 151.5 |
| B | 12 | 111 | 17684 | 111.38 | 824 | 807 | 151.5 |
| C | 3 | 233 | 247223 | 1355.43 | 781 | 791 | 181.8 |
| C | 14 | 238 | 126767 | 692.9 | 781 | 791 | 181.8 |
| C | 7 | 247 | 20253 | 107.05 | 781 | 791 | 181.8 |
| D | 1 | 52 | 885676 | 4712.54 | 772 | 750 | 187.8 |
| D | 8 | 195 | 330137 | 1754.1 | 772 | 750 | 187.8 |
| D | 2 | 153 | 100712 | 532.33 | 772 | 750 | 187.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

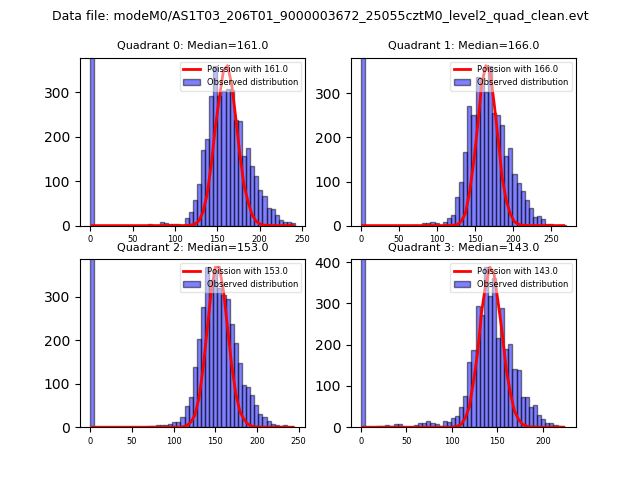

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

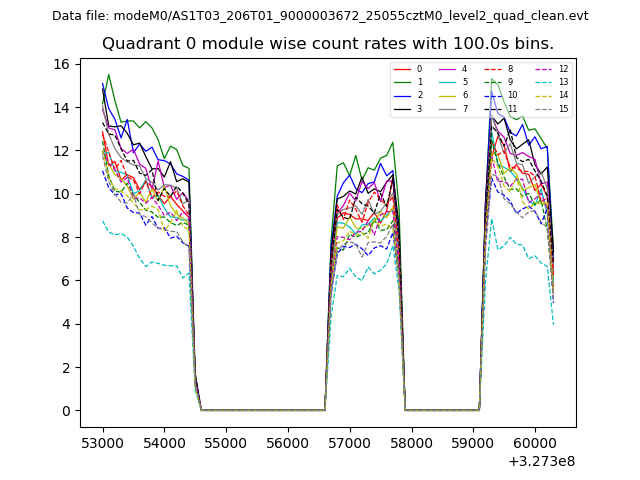

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

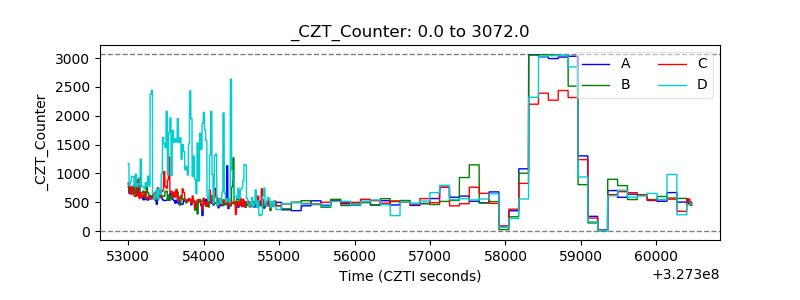

| CZT Counter |  |
| +2.5 Volts monitor |  |

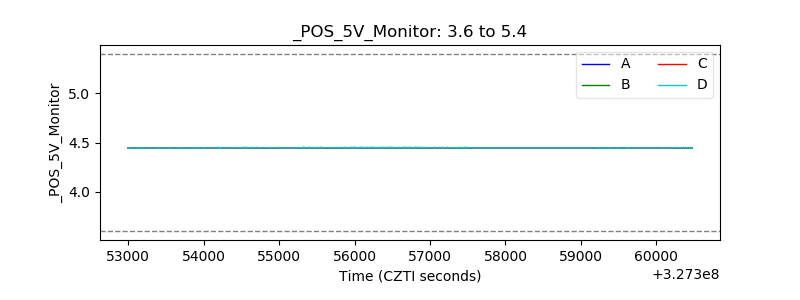

| +5 Volts monitor |  |
| _ROLL_ROT |  |

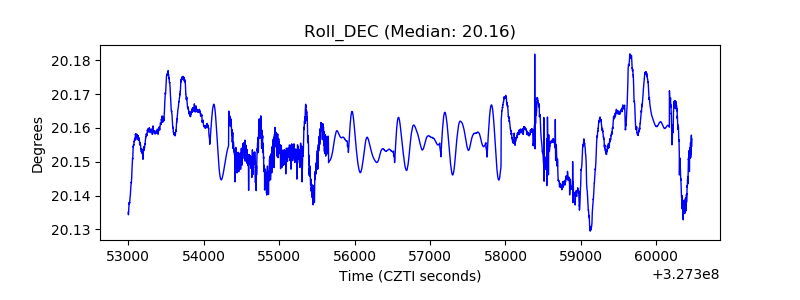

| _Roll_DEC |  |

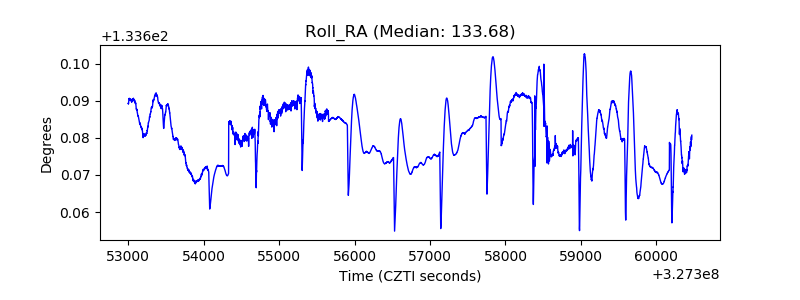

| _Roll_RA |  |

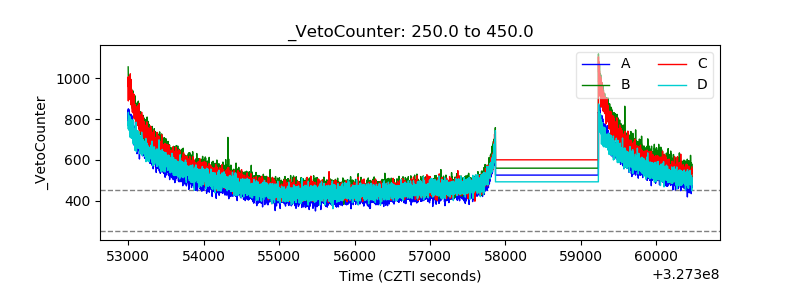

| Veto Counter |  |
