| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_206T01_9000003672_25058cztM0_level2.evt | modeM0/AS1T03_206T01_9000003672_25058cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,773,760 | 70,395,840 |
| Size | 478.5 MB | 67.1 MB |
| Events in quadrant A | 3,360,397 | 429,580 |
| Events in quadrant B | 3,557,369 | 437,049 |
| Events in quadrant C | 3,383,625 | 406,426 |
| Events in quadrant D | 4,441,359 | 392,473 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13948 | 2 |
| B | 0 | 14461 | 3 |
| C | 0 | 13945 | 2 |
| D | 0 | 17635 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6683 | 84 | 1.256921% |
| B | 6682 | 127 | 1.900629% |
| C | 6682 | 107 | 1.601317% |
| D | 6682 | 169 | 2.529183% |

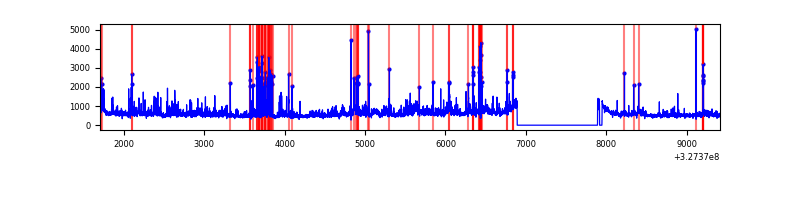

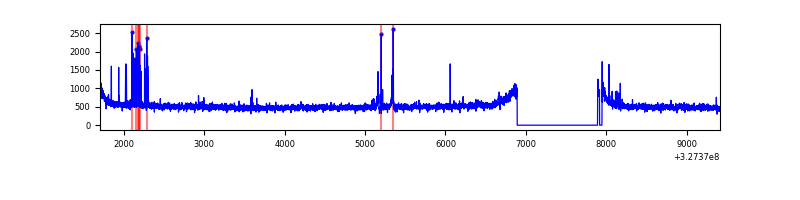

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7713 | 6685 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7712 | 6684 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7712 | 6684 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7712 | 6684 | 88 | 88 | 1.14% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11394 | 59.99 | 871 | 854 | 175.7 |
| A | 3 | 137 | 7749 | 39.25 | 871 | 854 | 175.7 |
| A | 0 | 226 | 7233 | 36.31 | 871 | 854 | 175.7 |
| B | 4 | 80 | 90917 | 539.69 | 872 | 854 | 166.9 |
| B | 0 | 190 | 24181 | 139.78 | 872 | 854 | 166.9 |
| B | 12 | 111 | 20120 | 115.45 | 872 | 854 | 166.9 |
| C | 14 | 238 | 133031 | 688.18 | 827 | 835 | 192.1 |
| C | 7 | 247 | 14373 | 70.48 | 827 | 835 | 192.1 |
| C | 3 | 233 | 14094 | 69.02 | 827 | 835 | 192.1 |
| D | 1 | 52 | 579357 | 2857.8 | 828 | 803 | 202.4 |
| D | 8 | 195 | 386296 | 1904.17 | 828 | 803 | 202.4 |
| D | 7 | 238 | 123680 | 606.96 | 828 | 803 | 202.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

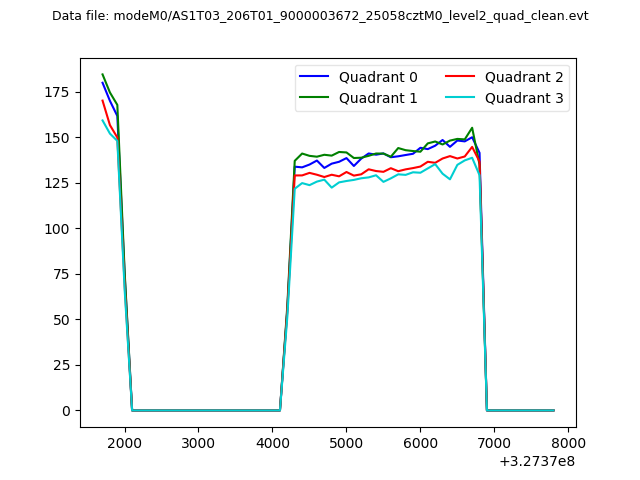

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

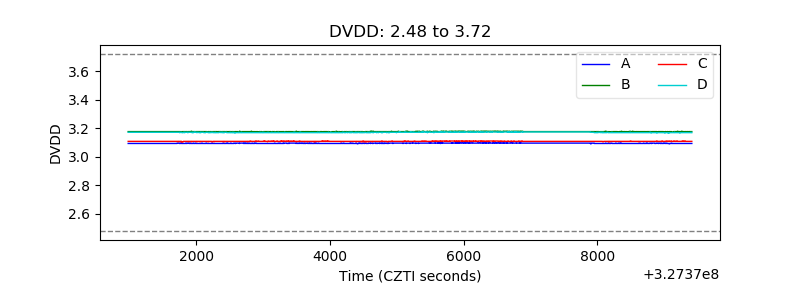

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

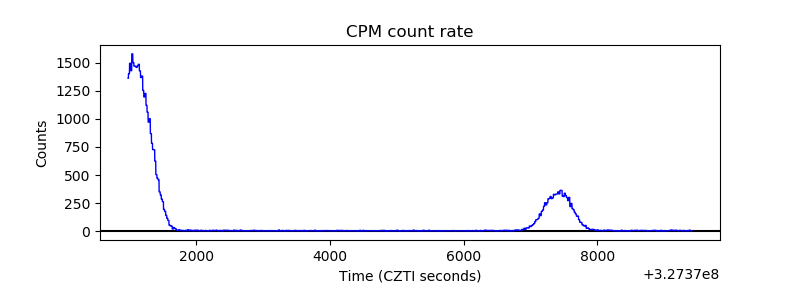

| _CPM_Rate |  |

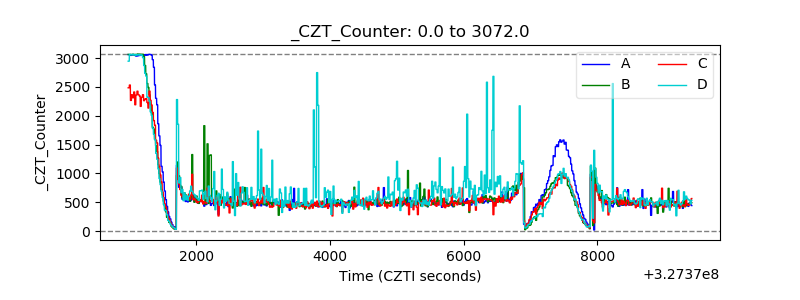

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

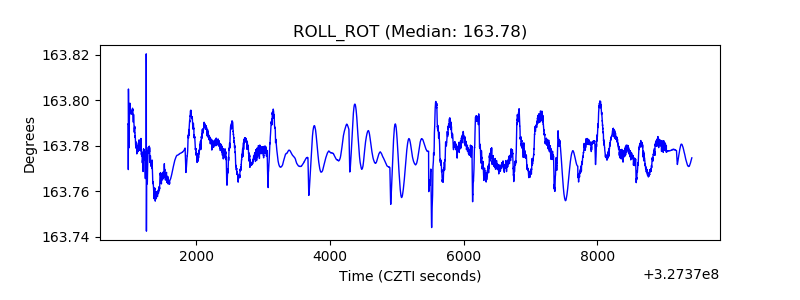

| _ROLL_ROT |  |

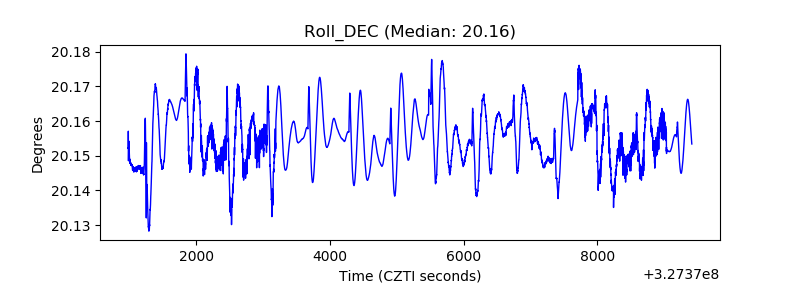

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
