| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_206T01_9000003672_25060cztM0_level2.evt | modeM0/AS1T03_206T01_9000003672_25060cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,810,880 | 80,176,320 |
| Size | 534.8 MB | 76.5 MB |
| Events in quadrant A | 3,677,861 | 486,975 |
| Events in quadrant B | 3,770,084 | 493,061 |
| Events in quadrant C | 3,730,749 | 467,140 |
| Events in quadrant D | 5,289,266 | 451,359 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15754 | 2 |
| B | 0 | 15898 | 2 |
| C | 0 | 15800 | 2 |
| D | 0 | 20785 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7609 | 234 | 3.075306% |
| B | 7609 | 268 | 3.522145% |
| C | 7609 | 272 | 3.574714% |
| D | 7609 | 259 | 3.403864% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

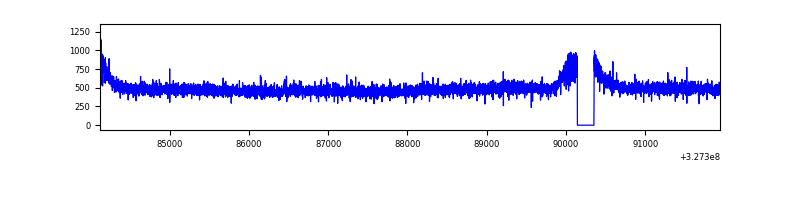

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7819 | 7610 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7819 | 7609 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7819 | 7609 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7819 | 7610 | 49 | 49 | 0.63% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12242 | 58.71 | 953 | 932 | 192.6 |
| A | 3 | 137 | 9050 | 42.14 | 953 | 932 | 192.6 |
| A | 0 | 226 | 8275 | 38.12 | 953 | 932 | 192.6 |
| B | 12 | 111 | 23064 | 120.91 | 949 | 923 | 183.1 |
| B | 5 | 172 | 21167 | 110.55 | 949 | 923 | 183.1 |
| B | 11 | 111 | 20456 | 106.67 | 949 | 923 | 183.1 |
| C | 14 | 238 | 142970 | 655.92 | 910 | 914 | 216.6 |
| C | 3 | 233 | 19657 | 86.54 | 910 | 914 | 216.6 |
| C | 7 | 247 | 18507 | 81.23 | 910 | 914 | 216.6 |
| D | 7 | 238 | 726871 | 3254.34 | 916 | 888 | 223.1 |
| D | 8 | 195 | 640822 | 2868.61 | 916 | 888 | 223.1 |
| D | 1 | 52 | 281106 | 1256.12 | 916 | 888 | 223.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

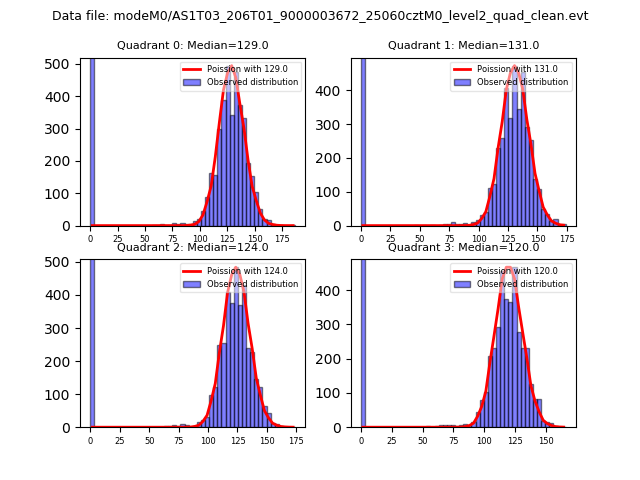

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

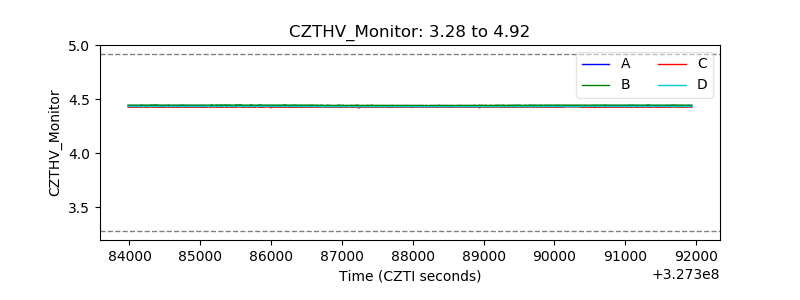

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

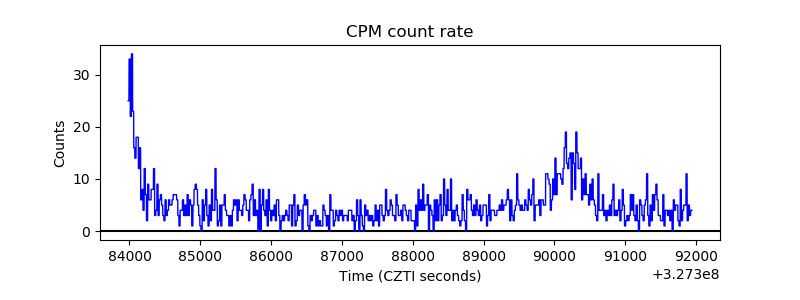

| _CPM_Rate |  |

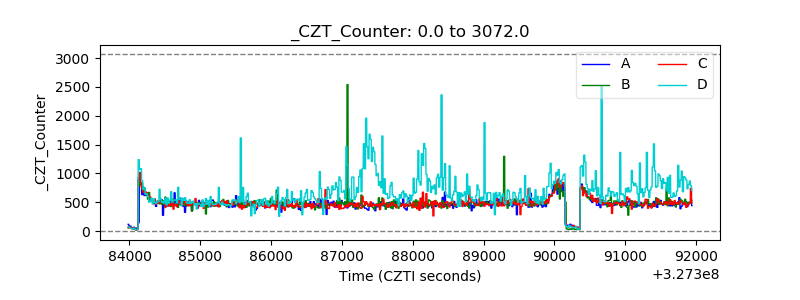

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

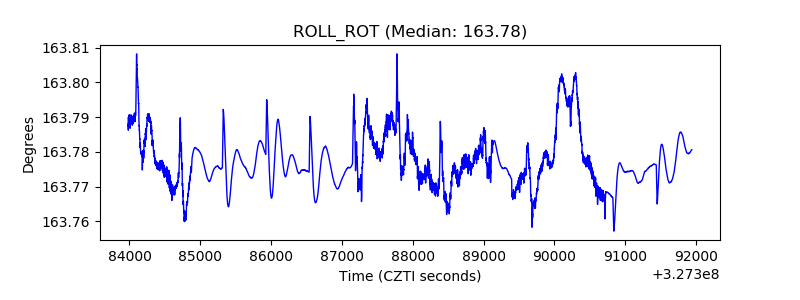

| _ROLL_ROT |  |

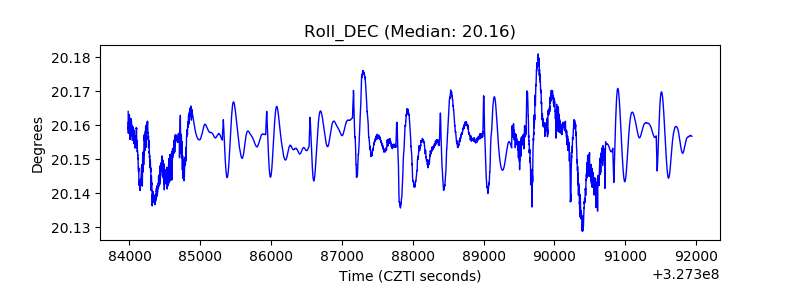

| _Roll_DEC |  |
| _Roll_RA |  |

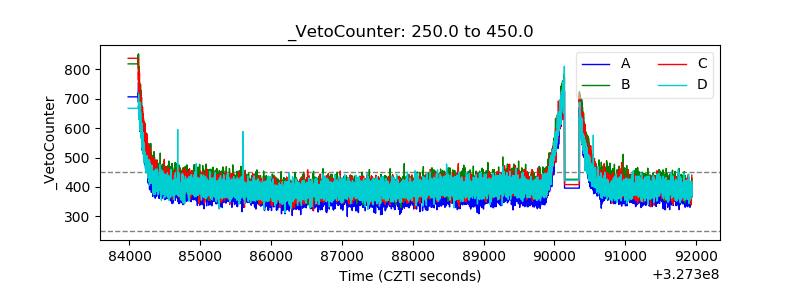

| Veto Counter |  |
