| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_206T01_9000003672_25088cztM0_level2.evt | modeM0/AS1T03_206T01_9000003672_25088cztM0_level2_quad_clean.evt |
| Size (bytes) | 772,266,240 | 69,059,520 |
| Size | 736.5 MB | 65.9 MB |
| Events in quadrant A | 3,666,467 | 429,093 |
| Events in quadrant B | 3,427,810 | 438,402 |
| Events in quadrant C | 10,614,891 | 349,183 |
| Events in quadrant D | 5,214,491 | 395,113 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 70 |
| B | 0 | 140 | 70 |
| C | 0 | 140 | 70 |
| D | 0 | 140 | 70 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15160 | 0 |
| B | 0 | 14309 | 0 |
| C | 0 | 36162 | 0 |
| D | 0 | 20213 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6868 | 238 | 3.465347% |
| B | 6868 | 127 | 1.849156% |
| C | 6868 | 3149 | 45.850320% |
| D | 6868 | 148 | 2.154921% |

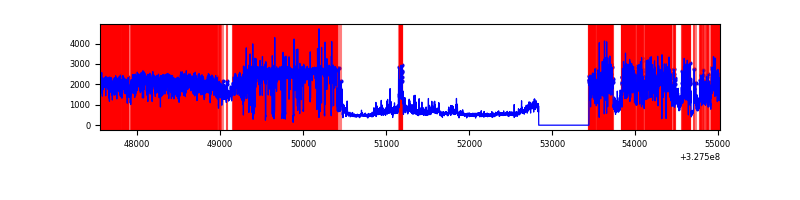

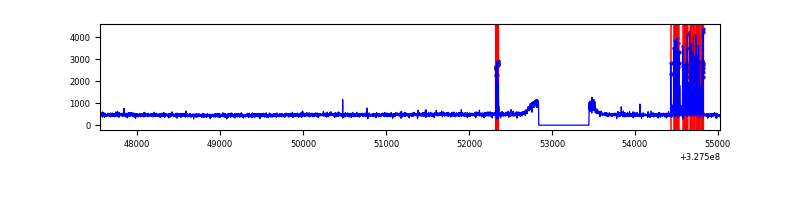

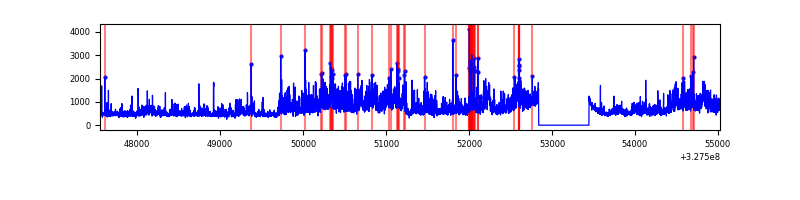

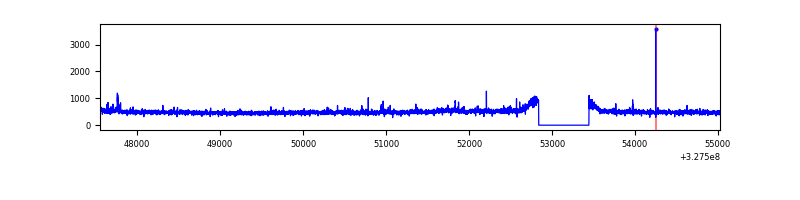

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7474 | 6868 | 106 | 106 | 1.42% | 1.54% |  |
| B | 7474 | 6868 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7474 | 6868 | 2534 | 2534 | 33.90% | 36.90% |  |
| D | 7474 | 6868 | 62 | 62 | 0.83% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 331978 | 1920.91 | 847 | 829 | 172.4 |
| A | 13 | 170 | 52784 | 301.38 | 847 | 829 | 172.4 |
| A | 10 | 17 | 14582 | 79.78 | 847 | 829 | 172.4 |
| B | 3 | 64 | 32083 | 188.94 | 855 | 832 | 165.4 |
| B | 12 | 111 | 20058 | 116.24 | 855 | 832 | 165.4 |
| B | 11 | 111 | 17924 | 103.34 | 855 | 832 | 165.4 |
| C | 7 | 247 | 7751450 | 47085.76 | 700 | 706 | 164.6 |
| C | 14 | 238 | 108164 | 652.8 | 700 | 706 | 164.6 |
| C | 7 | 226 | 20899 | 122.67 | 700 | 706 | 164.6 |
| D | 8 | 195 | 1338119 | 6582.24 | 821 | 795 | 203.2 |
| D | 1 | 52 | 601386 | 2956.08 | 821 | 795 | 203.2 |
| D | 2 | 244 | 60796 | 295.32 | 821 | 795 | 203.2 |

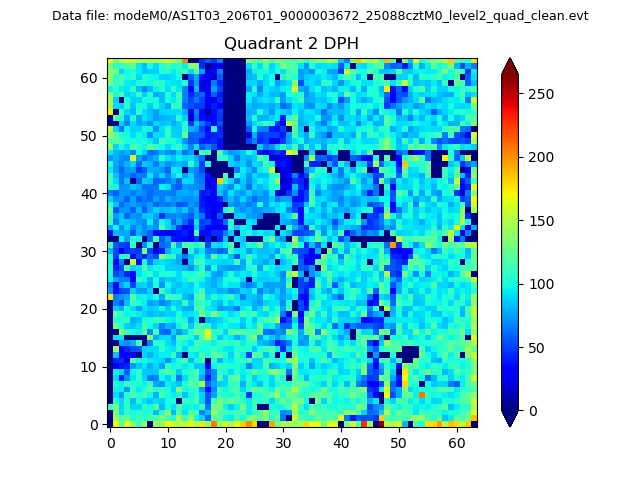

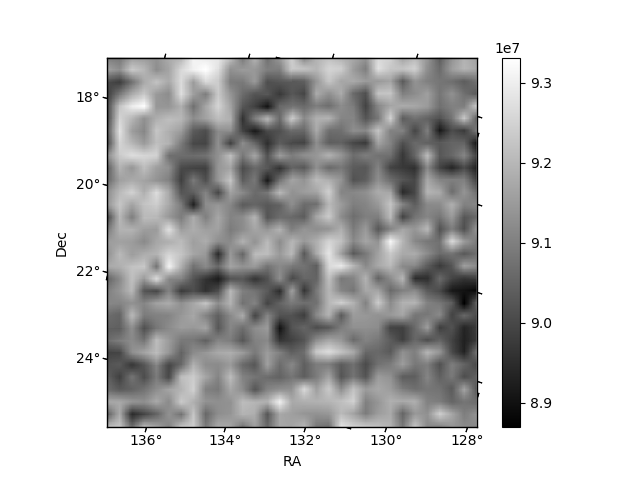

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

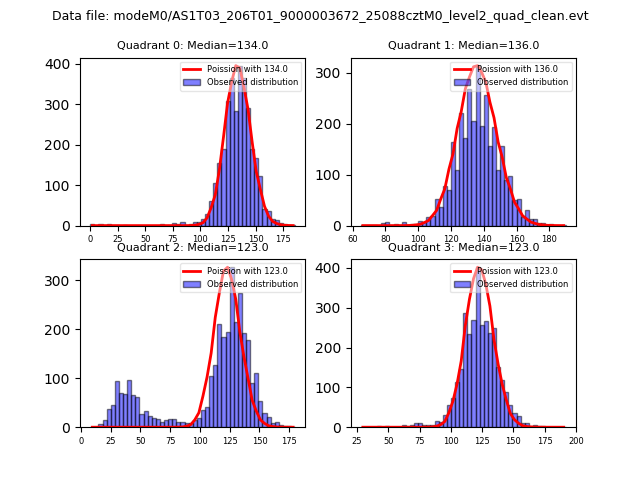

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

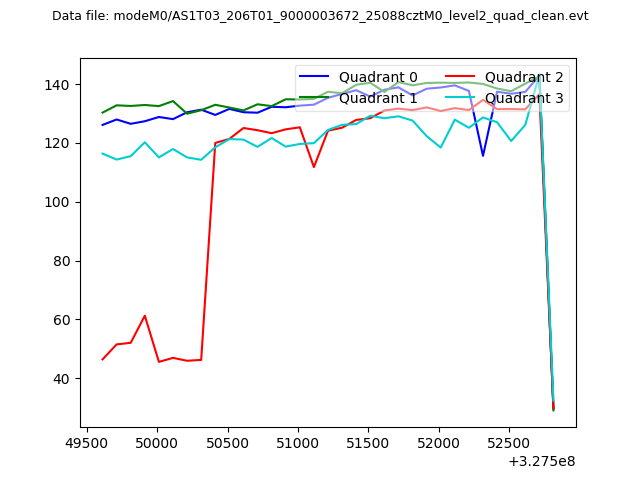

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

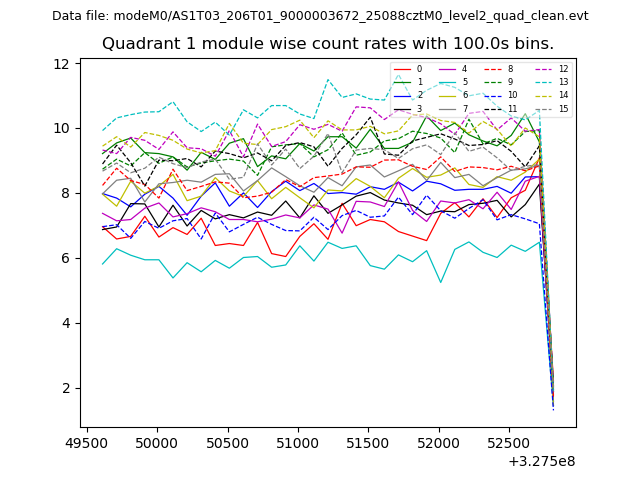

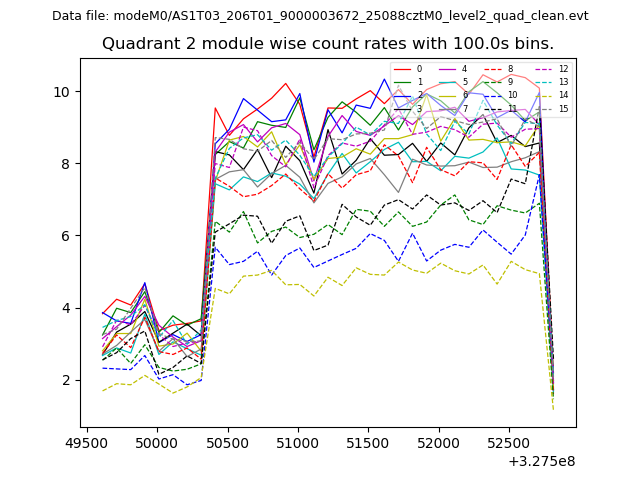

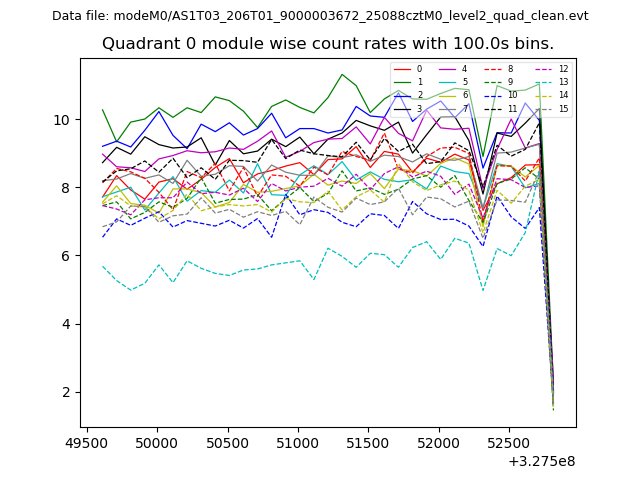

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

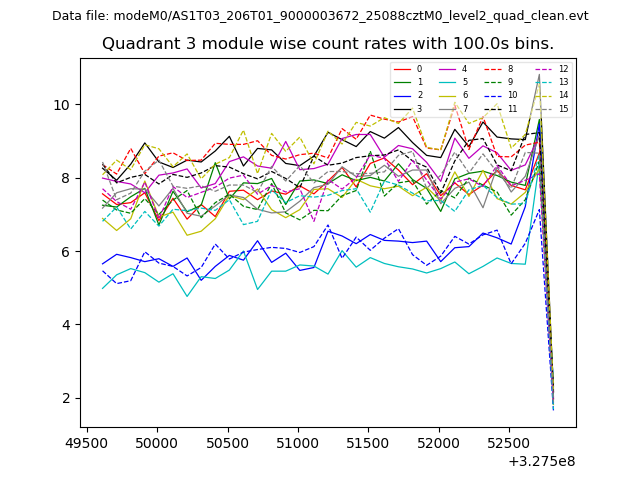

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

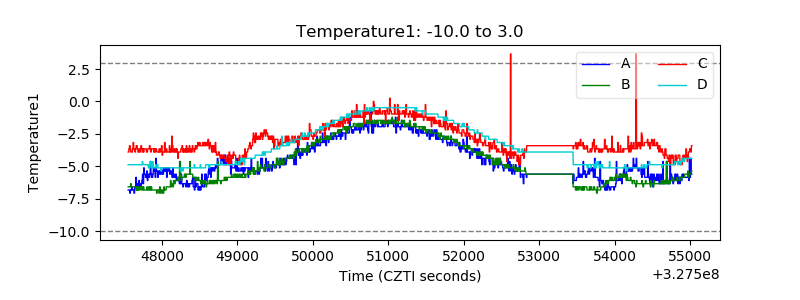

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

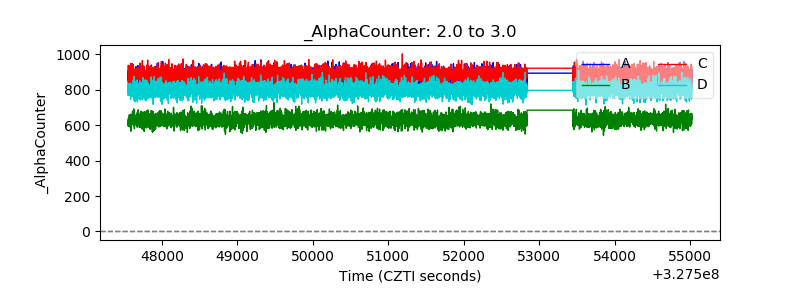

| Alpha Counter |  |

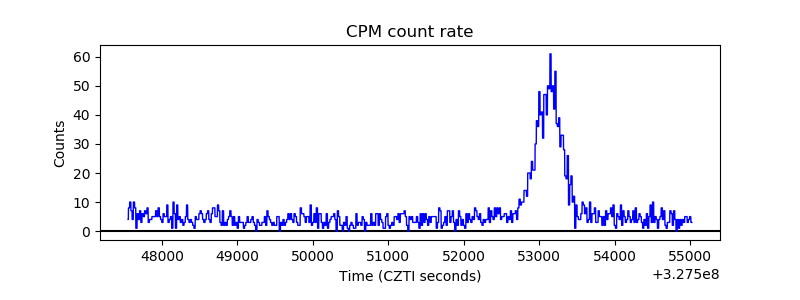

| _CPM_Rate |  |

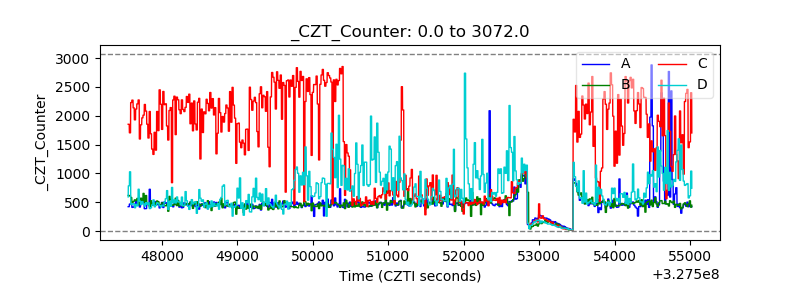

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

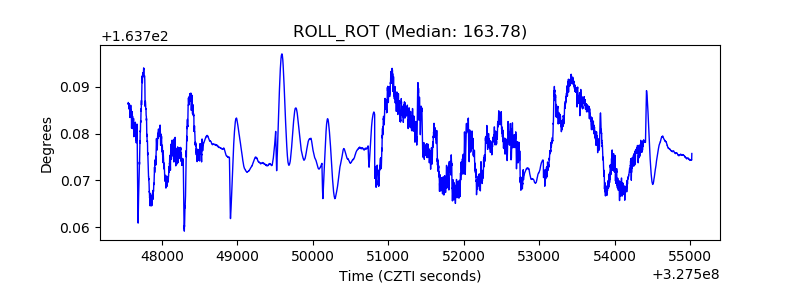

| _ROLL_ROT |  |

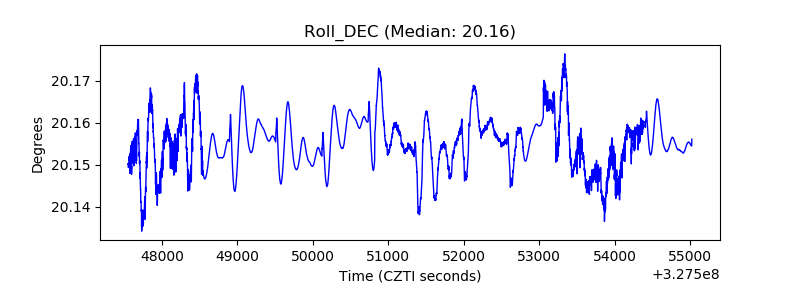

| _Roll_DEC |  |

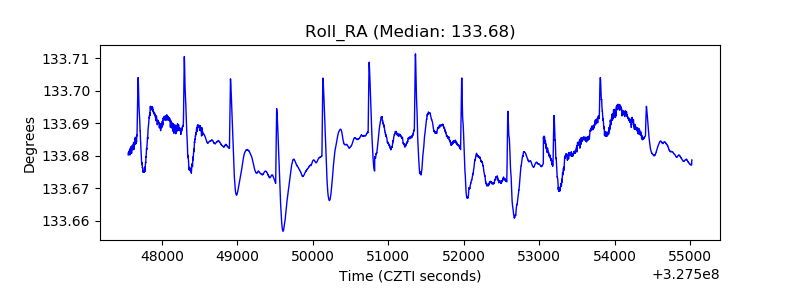

| _Roll_RA |  |

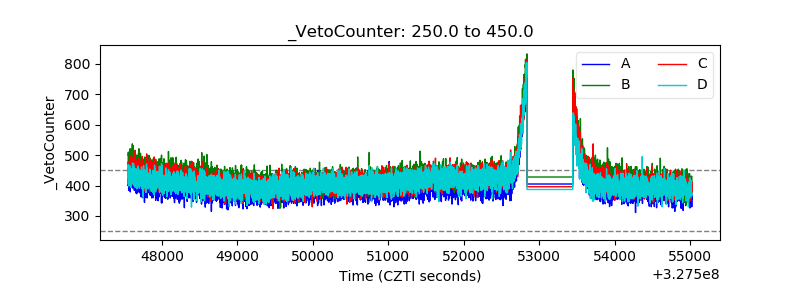

| Veto Counter |  |
