| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T06_9000003674cztM0_level2.fits | modeM0/AS1C05_012T06_9000003674cztM0_level2_quad_clean.evt |
| Size (bytes) | 916,787,520 | 1,022,313,600 |
| Size | 874.3 MB | 975.0 MB |
| Events in quadrant A | 5,719,498 | 6,664,690 |
| Events in quadrant B | 5,515,840 | 6,687,809 |
| Events in quadrant C | 5,581,518 | 6,309,406 |
| Events in quadrant D | 4,273,236 | 4,634,624 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1980 | 0 |
| B | 0 | 1980 | 0 |
| C | 0 | 1980 | 0 |
| D | 0 | 1980 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 199233 | 0 |
| B | 0 | 203696 | 0 |
| C | 0 | 229218 | 0 |
| D | 0 | 410392 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 97267 | 872 | 0.896501% |
| B | 97267 | 1265 | 1.300544% |
| C | 97267 | 1815 | 1.865998% |
| D | 97267 | 19826 | 20.383069% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 115341 | 97261 | 0 | 0 | 0.00% | 0.00% |  |
| B | 115341 | 97255 | 0 | 0 | 0.00% | 0.00% |  |
| C | 115341 | 97260 | 0 | 0 | 0.00% | 0.00% |  |
| D | 115341 | 96601 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 29 | 5492 | 11.13 | 1490 | 1399 | 367.9 |
| A | 7 | 110 | 4579 | 8.64 | 1490 | 1399 | 367.9 |
| A | 0 | 30 | 4355 | 8.04 | 1490 | 1399 | 367.9 |
| B | 2 | 9 | 4457 | 10.86 | 1459 | 1397 | 281.8 |
| B | 2 | 8 | 3798 | 8.52 | 1459 | 1397 | 281.8 |
| B | 3 | 17 | 3672 | 8.07 | 1459 | 1397 | 281.8 |
| C | 1 | 81 | 4447 | 8.25 | 1473 | 1382 | 371.7 |
| C | 1 | 80 | 4399 | 8.12 | 1473 | 1382 | 371.7 |
| C | 12 | 241 | 3954 | 6.92 | 1473 | 1382 | 371.7 |
| D | 3 | 14 | 3200 | 6.48 | 1220 | 1113 | 321.9 |
| D | 6 | 67 | 3030 | 5.96 | 1220 | 1113 | 321.9 |
| D | 10 | 189 | 3022 | 5.93 | 1220 | 1113 | 321.9 |

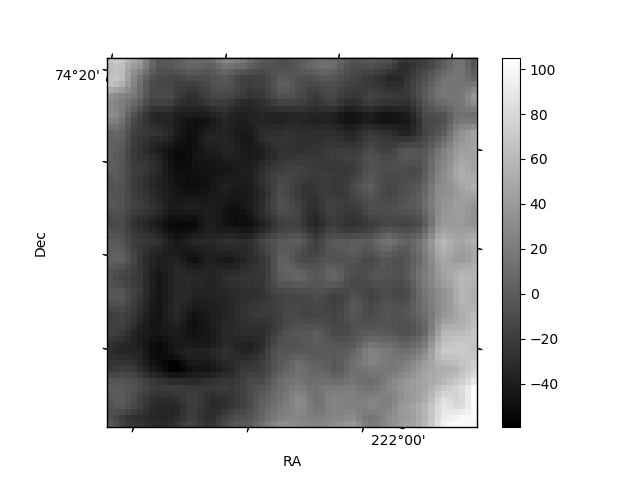

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

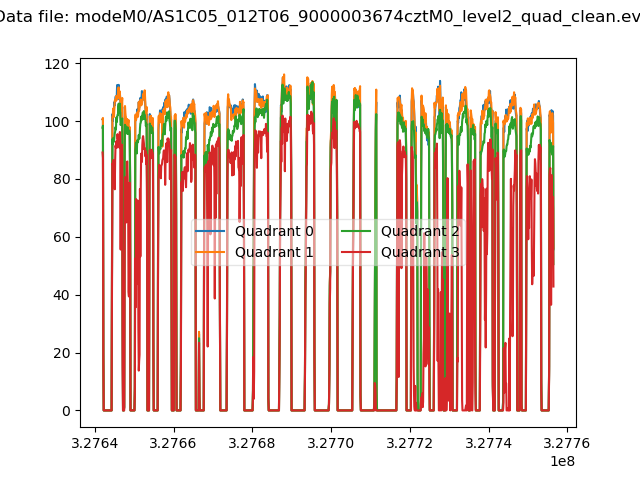

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

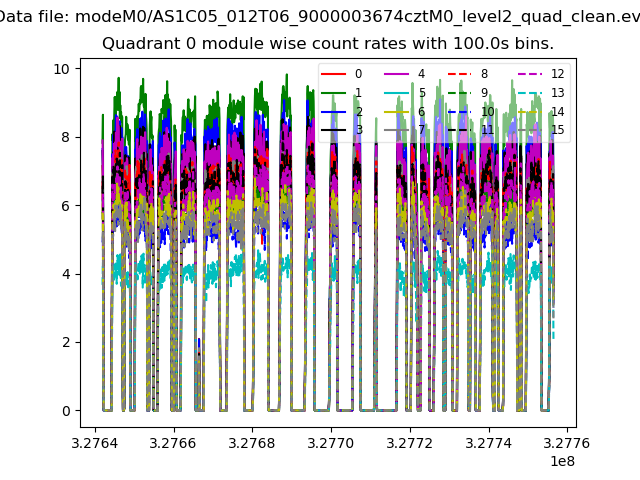

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

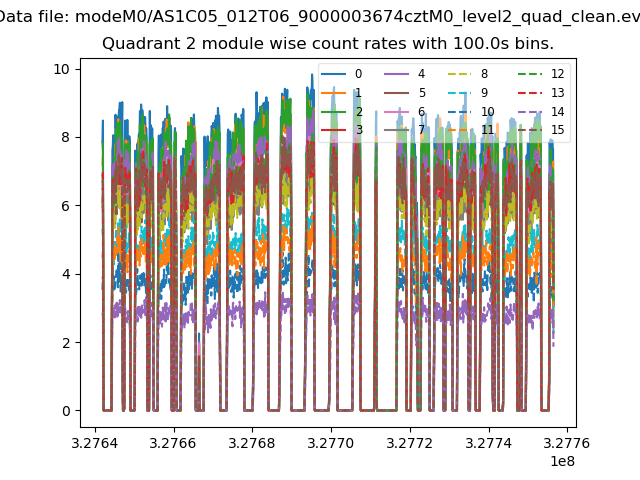

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

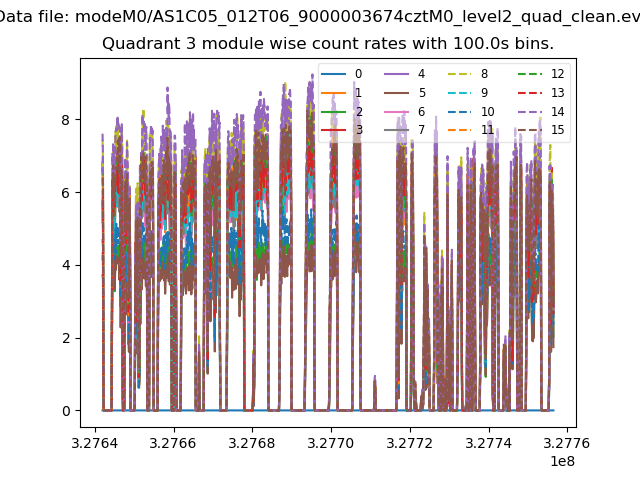

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

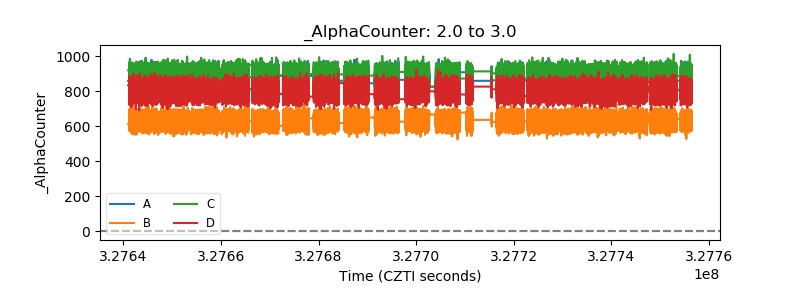

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

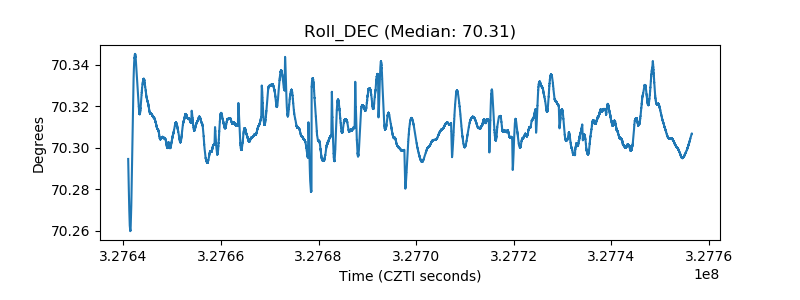

| _Roll_DEC |  |
| _Roll_RA |  |

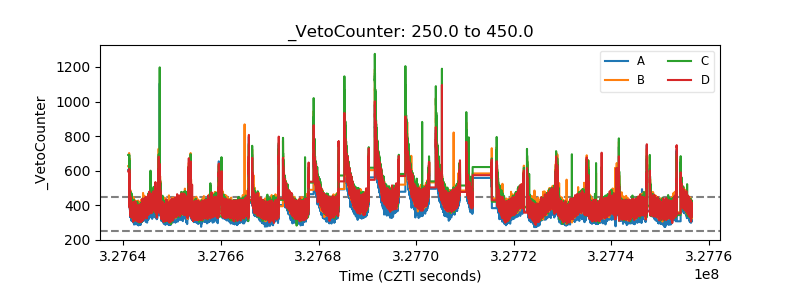

| Veto Counter |  |
