| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T01_9000003690_25201cztM0_level2.evt | modeM0/AS1A07_027T01_9000003690_25201cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,306,560 | 79,873,920 |
| Size | 453.3 MB | 76.2 MB |
| Events in quadrant A | 3,360,379 | 511,224 |
| Events in quadrant B | 3,477,529 | 518,322 |
| Events in quadrant C | 3,376,858 | 480,202 |
| Events in quadrant D | 3,755,986 | 472,848 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13688 | 0 |
| B | 0 | 14049 | 0 |
| C | 0 | 13721 | 0 |
| D | 0 | 15086 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6250 | 63 | 1.008000% |
| B | 6250 | 77 | 1.232000% |
| C | 6250 | 87 | 1.392000% |
| D | 6250 | 51 | 0.816000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 6251 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7575 | 6251 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7575 | 6251 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7575 | 6251 | 15 | 15 | 0.20% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9352 | 49.81 | 872 | 857 | 170.6 |
| A | 0 | 226 | 7798 | 40.7 | 872 | 857 | 170.6 |
| A | 3 | 137 | 7299 | 37.77 | 872 | 857 | 170.6 |
| B | 0 | 190 | 50424 | 314.3 | 860 | 842 | 157.8 |
| B | 3 | 64 | 39138 | 242.76 | 860 | 842 | 157.8 |
| B | 12 | 111 | 18649 | 112.88 | 860 | 842 | 157.8 |
| C | 14 | 238 | 135620 | 727.65 | 811 | 818 | 185.3 |
| C | 7 | 247 | 50592 | 268.68 | 811 | 818 | 185.3 |
| C | 2 | 16 | 25504 | 133.25 | 811 | 818 | 185.3 |
| D | 8 | 195 | 251398 | 1271.52 | 828 | 805 | 197.1 |
| D | 12 | 233 | 128581 | 648.34 | 828 | 805 | 197.1 |
| D | 1 | 52 | 116421 | 586.64 | 828 | 805 | 197.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

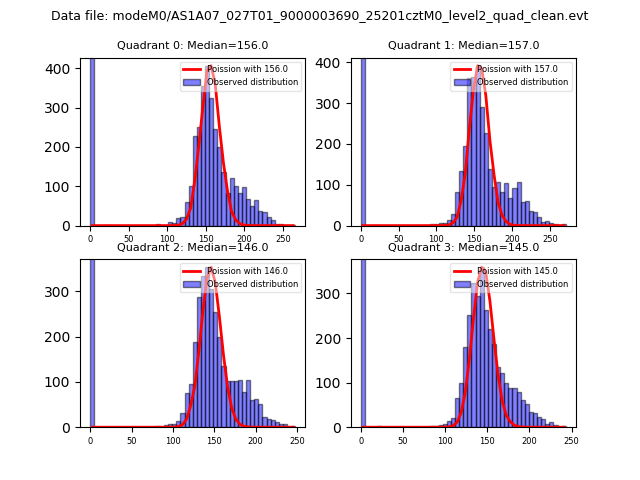

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

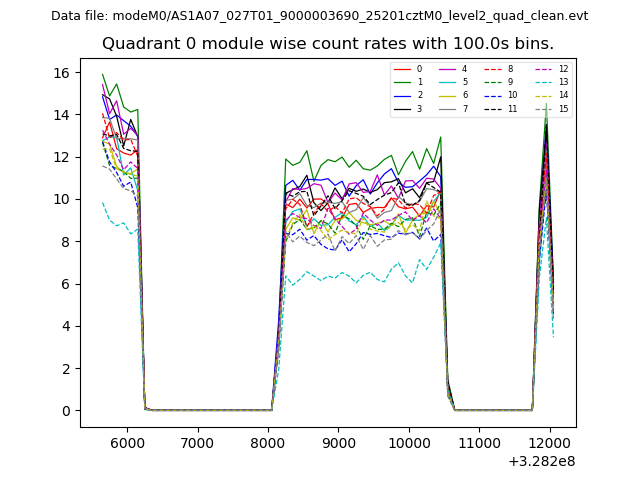

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

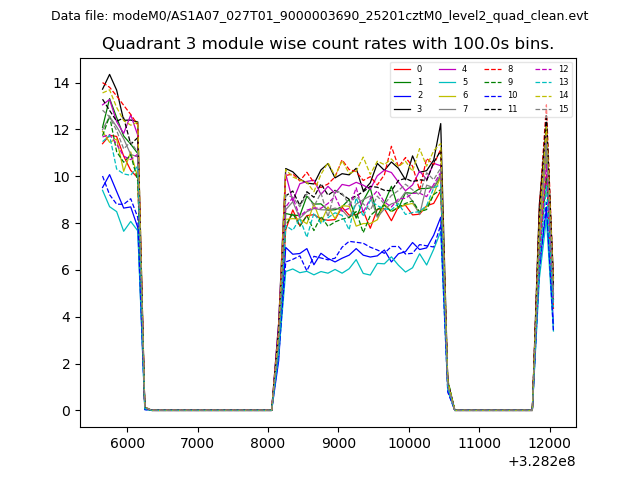

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
