| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_097T01_9000003692_25225cztM0_level2.evt | modeM0/AS1A07_097T01_9000003692_25225cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,745,579,520 | 279,322,560 |
| Size | 1.6 GB | 266.4 MB |
| Events in quadrant A | 10,916,227 | 1,763,286 |
| Events in quadrant B | 11,264,952 | 1,779,158 |
| Events in quadrant C | 13,034,273 | 1,691,232 |
| Events in quadrant D | 16,109,178 | 1,654,704 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46794 | 0 |
| B | 0 | 47917 | 0 |
| C | 0 | 53200 | 0 |
| D | 0 | 63488 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 22841 | 158 | 0.691739% |
| B | 22842 | 208 | 0.910603% |
| C | 22842 | 394 | 1.724893% |
| D | 22842 | 1007 | 4.408546% |

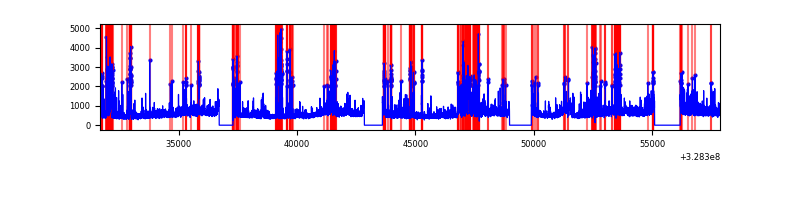

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26201 | 22845 | 0 | 0 | 0.00% | 0.00% |  |
| B | 26202 | 22846 | 7 | 7 | 0.03% | 0.03% |  |
| C | 26202 | 22846 | 0 | 0 | 0.00% | 0.00% |  |
| D | 26202 | 22846 | 644 | 644 | 2.46% | 2.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 33337 | 53.84 | 2832 | 2775 | 567.6 |
| A | 3 | 137 | 25697 | 40.38 | 2832 | 2775 | 567.6 |
| A | 0 | 226 | 24377 | 38.06 | 2832 | 2775 | 567.6 |
| B | 3 | 64 | 222946 | 411.89 | 2802 | 2732 | 534.6 |
| B | 12 | 111 | 66628 | 119.51 | 2802 | 2732 | 534.6 |
| B | 11 | 111 | 59258 | 105.73 | 2802 | 2732 | 534.6 |
| C | 7 | 247 | 2038294 | 3240.56 | 2686 | 2704 | 628.2 |
| C | 14 | 238 | 430600 | 681.19 | 2686 | 2704 | 628.2 |
| C | 2 | 16 | 61466 | 93.55 | 2686 | 2704 | 628.2 |
| D | 10 | 70 | 2560756 | 3651.8 | 2689 | 2630 | 700.5 |
| D | 1 | 52 | 1415114 | 2016.37 | 2689 | 2630 | 700.5 |
| D | 8 | 195 | 1241831 | 1769.0 | 2689 | 2630 | 700.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

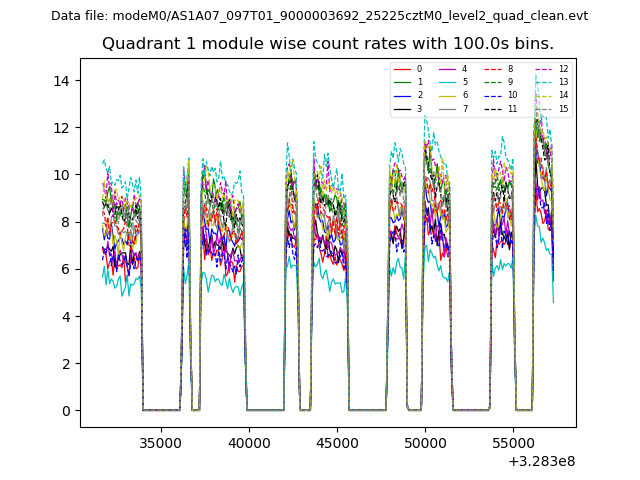

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

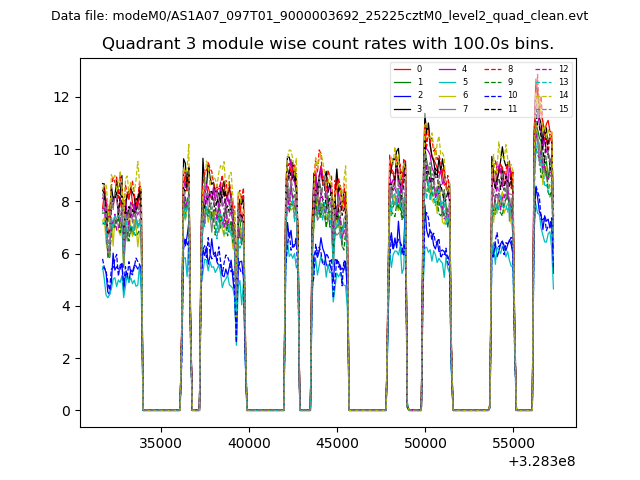

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

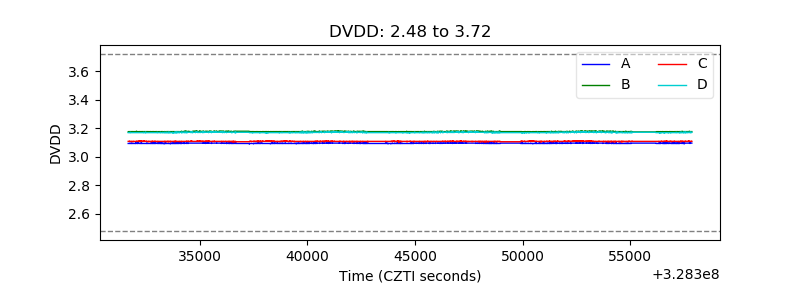

| D_VDD |  |

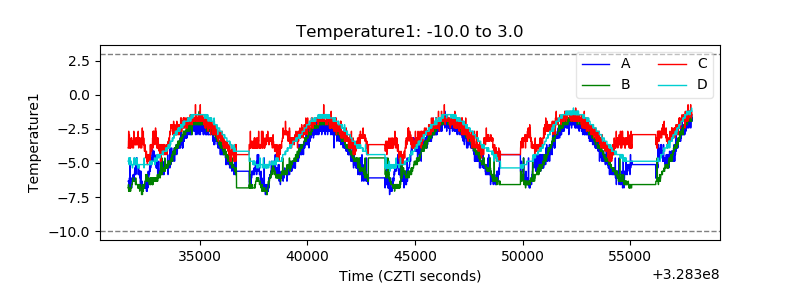

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

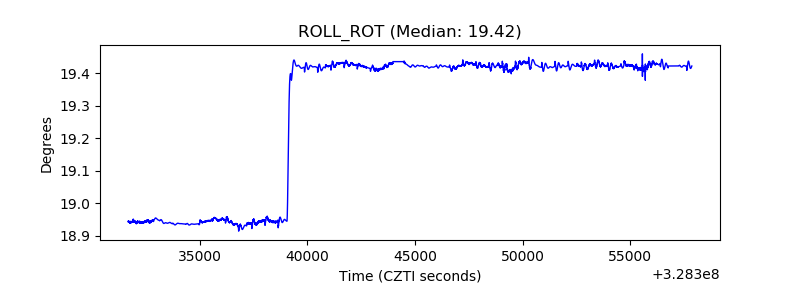

| _ROLL_ROT |  |

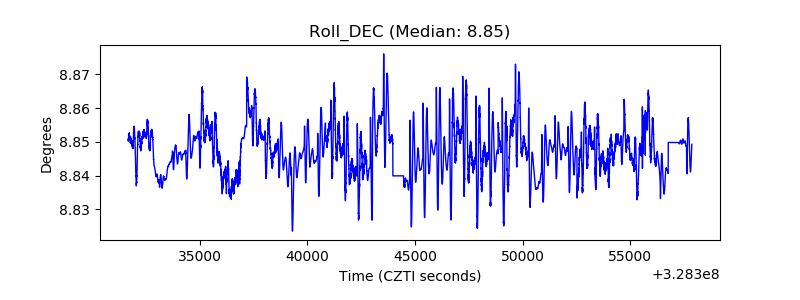

| _Roll_DEC |  |

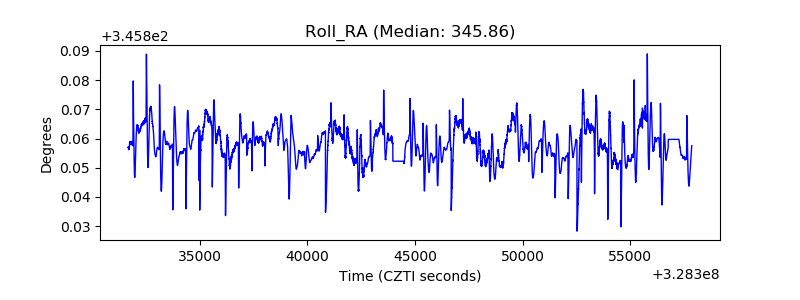

| _Roll_RA |  |
| Veto Counter |  |
