| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_006T01_9000003700_25285cztM0_level2.evt | modeM0/AS1A09_006T01_9000003700_25285cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,369,280 | 65,304,000 |
| Size | 394.2 MB | 62.3 MB |
| Events in quadrant A | 2,417,815 | 439,601 |
| Events in quadrant B | 3,036,361 | 429,877 |
| Events in quadrant C | 2,476,670 | 415,976 |
| Events in quadrant D | 4,265,114 | 358,115 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9925 | 0 |
| B | 0 | 11952 | 0 |
| C | 0 | 10175 | 0 |
| D | 0 | 15520 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4749 | 8 | 0.168457% |
| B | 4749 | 193 | 4.064013% |
| C | 4749 | 48 | 1.010739% |
| D | 4749 | 768 | 16.171826% |

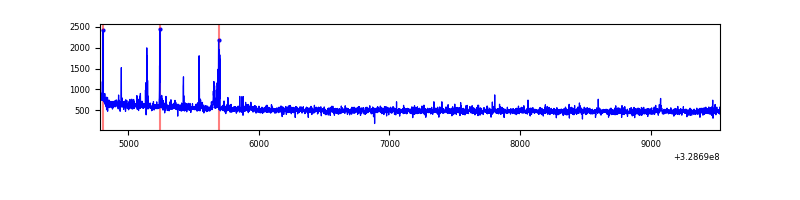

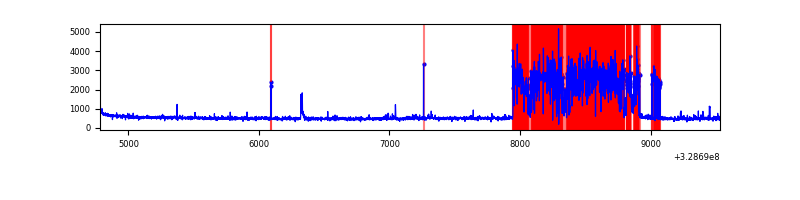

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4749 | 4749 | 2 | 2 | 0.04% | 0.04% |  |
| B | 4749 | 4749 | 129 | 129 | 2.72% | 2.72% |  |
| C | 4749 | 4749 | 3 | 3 | 0.06% | 0.06% |  |
| D | 4749 | 4749 | 717 | 717 | 15.10% | 15.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7715 | 56.99 | 624 | 613 | 124.6 |
| A | 13 | 170 | 6281 | 45.48 | 624 | 613 | 124.6 |
| A | 0 | 226 | 5291 | 37.54 | 624 | 613 | 124.6 |
| B | 3 | 64 | 641667 | 5598.59 | 608 | 594 | 114.5 |
| B | 12 | 111 | 13423 | 112.04 | 608 | 594 | 114.5 |
| B | 11 | 111 | 11967 | 99.32 | 608 | 594 | 114.5 |
| C | 14 | 238 | 96048 | 700.47 | 588 | 591 | 136.3 |
| C | 0 | 207 | 56951 | 413.57 | 588 | 591 | 136.3 |
| C | 2 | 16 | 19775 | 140.77 | 588 | 591 | 136.3 |
| D | 1 | 52 | 1949101 | 14390.13 | 560 | 546 | 135.4 |
| D | 8 | 195 | 141299 | 1039.46 | 560 | 546 | 135.4 |
| D | 12 | 233 | 36493 | 265.47 | 560 | 546 | 135.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

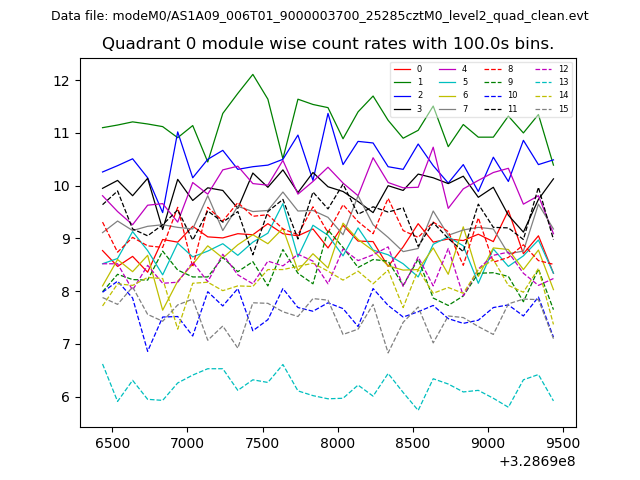

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

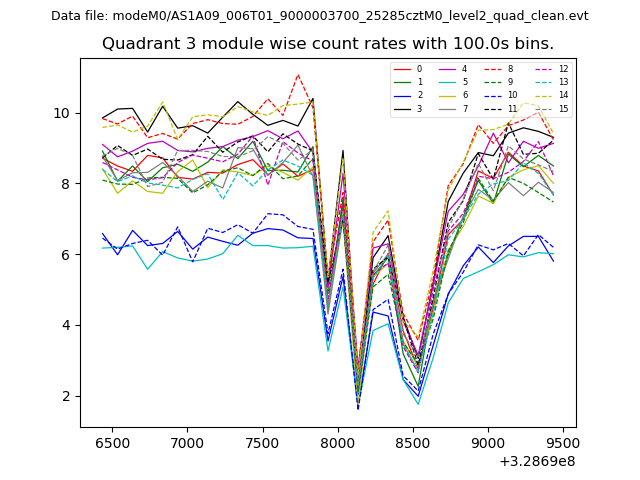

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

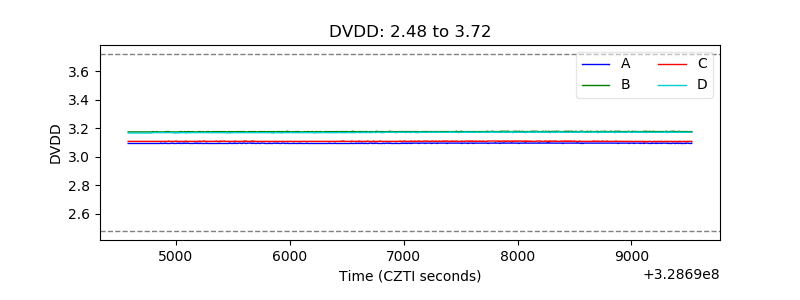

| D_VDD |  |

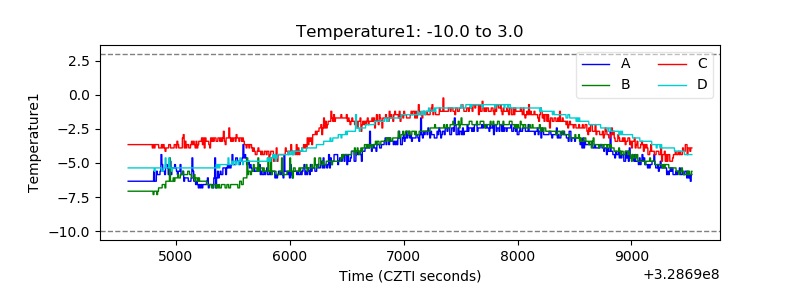

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

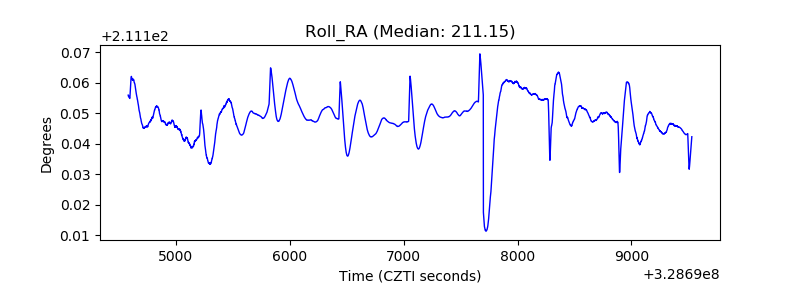

| _Roll_RA |  |

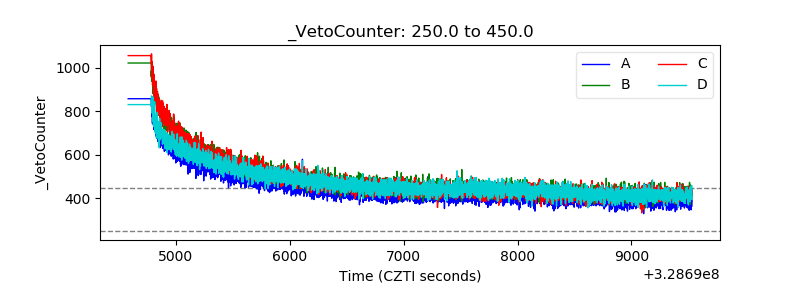

| Veto Counter |  |
