| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_147T01_9000003722_25516cztM0_level2.evt | modeM0/AS1A07_147T01_9000003722_25516cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,875,520 | 83,358,720 |
| Size | 421.4 MB | 79.5 MB |
| Events in quadrant A | 3,154,450 | 532,597 |
| Events in quadrant B | 3,232,891 | 544,998 |
| Events in quadrant C | 3,184,194 | 506,029 |
| Events in quadrant D | 3,374,670 | 493,112 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13265 | 0 |
| B | 0 | 13472 | 0 |
| C | 0 | 13343 | 0 |
| D | 0 | 14115 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6422 | 24 | 0.373715% |
| B | 6422 | 29 | 0.451573% |
| C | 6422 | 66 | 1.027717% |
| D | 6422 | 61 | 0.949860% |

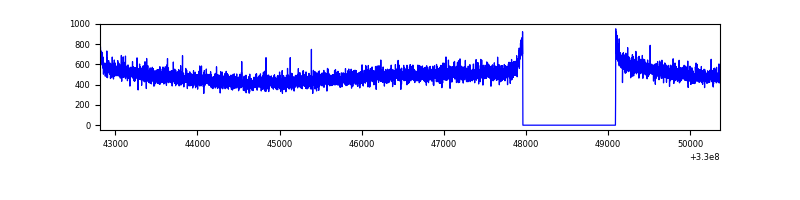

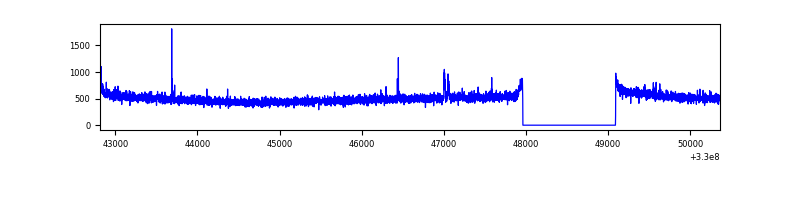

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7552 | 6423 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7552 | 6423 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7552 | 6423 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7552 | 6423 | 25 | 25 | 0.33% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10357 | 57.82 | 818 | 801 | 165.3 |
| A | 3 | 137 | 7463 | 40.31 | 818 | 801 | 165.3 |
| A | 0 | 226 | 6844 | 36.56 | 818 | 801 | 165.3 |
| B | 12 | 111 | 18636 | 114.08 | 819 | 799 | 156.4 |
| B | 11 | 111 | 16875 | 102.81 | 819 | 799 | 156.4 |
| B | 14 | 111 | 15559 | 94.4 | 819 | 799 | 156.4 |
| C | 14 | 238 | 127169 | 691.24 | 780 | 785 | 182.8 |
| C | 9 | 54 | 7896 | 38.89 | 780 | 785 | 182.8 |
| C | 2 | 16 | 7087 | 34.47 | 780 | 785 | 182.8 |
| D | 1 | 52 | 302054 | 1588.98 | 783 | 762 | 189.6 |
| D | 8 | 195 | 96987 | 507.48 | 783 | 762 | 189.6 |
| D | 2 | 234 | 25823 | 132.17 | 783 | 762 | 189.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

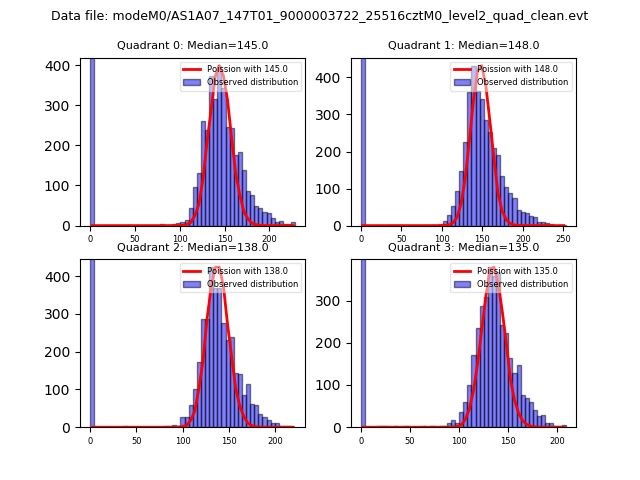

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

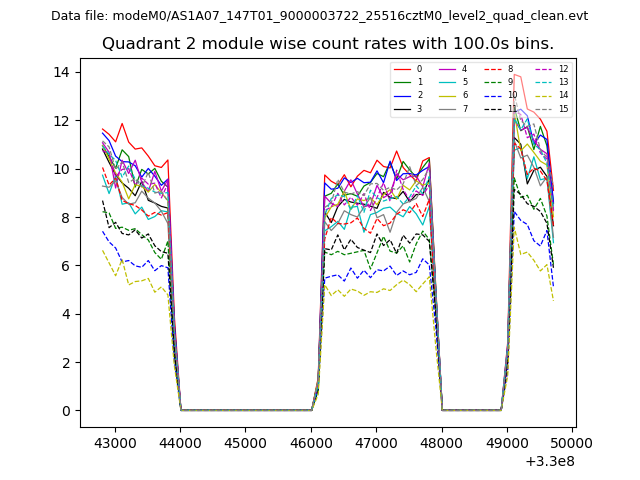

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

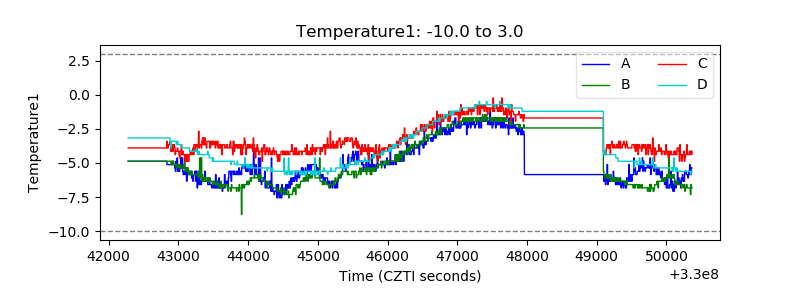

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

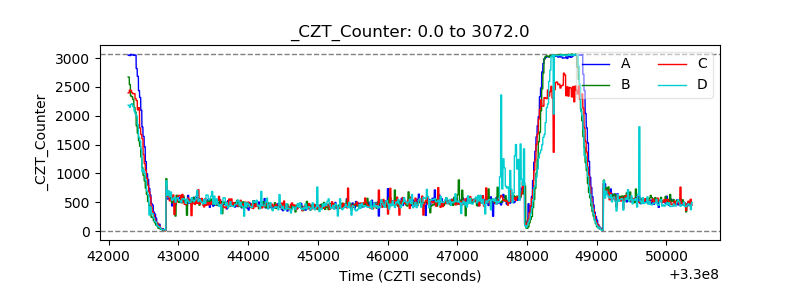

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

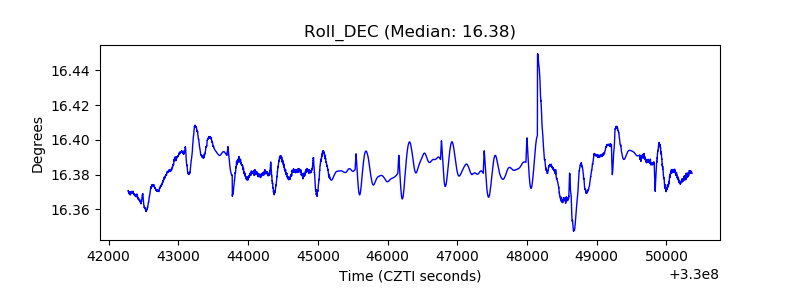

| _Roll_DEC |  |

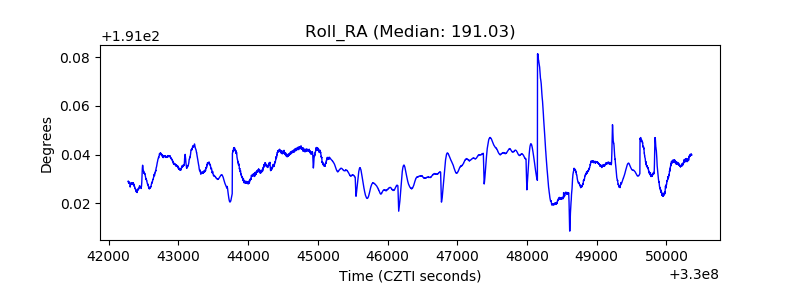

| _Roll_RA |  |
| Veto Counter |  |
