| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_013T02_9000003734_25634cztM0_level2.evt | modeM0/AS1A09_013T02_9000003734_25634cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,229,440 | 107,418,240 |
| Size | 460.8 MB | 102.4 MB |
| Events in quadrant A | 3,229,140 | 720,265 |
| Events in quadrant B | 4,250,748 | 724,384 |
| Events in quadrant C | 3,173,307 | 707,543 |
| Events in quadrant D | 3,563,833 | 671,335 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13353 | 0 |
| B | 0 | 16559 | 0 |
| C | 0 | 13273 | 0 |
| D | 0 | 14577 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6151 | 17 | 0.276378% |
| B | 6150 | 436 | 7.089431% |
| C | 6150 | 58 | 0.943089% |
| D | 6150 | 79 | 1.284553% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7511 | 6152 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7509 | 6150 | 298 | 298 | 3.97% | 4.85% |  |
| C | 7510 | 6151 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7510 | 6151 | 56 | 56 | 0.75% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 152212 | 966.2 | 797 | 784 | 156.7 |
| A | 13 | 254 | 10009 | 58.86 | 797 | 784 | 156.7 |
| A | 0 | 226 | 6834 | 38.6 | 797 | 784 | 156.7 |
| B | 3 | 64 | 1115300 | 7795.73 | 788 | 772 | 143.0 |
| B | 15 | 33 | 22390 | 151.21 | 788 | 772 | 143.0 |
| B | 0 | 190 | 18382 | 123.17 | 788 | 772 | 143.0 |
| C | 14 | 238 | 127127 | 700.24 | 779 | 784 | 180.4 |
| C | 3 | 233 | 9814 | 50.05 | 779 | 784 | 180.4 |
| C | 13 | 61 | 5427 | 25.73 | 779 | 784 | 180.4 |
| D | 8 | 195 | 407366 | 2216.93 | 766 | 747 | 183.4 |
| D | 13 | 104 | 160502 | 871.0 | 766 | 747 | 183.4 |
| D | 15 | 145 | 62932 | 339.04 | 766 | 747 | 183.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

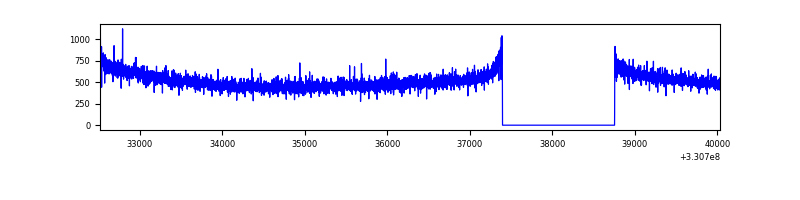

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

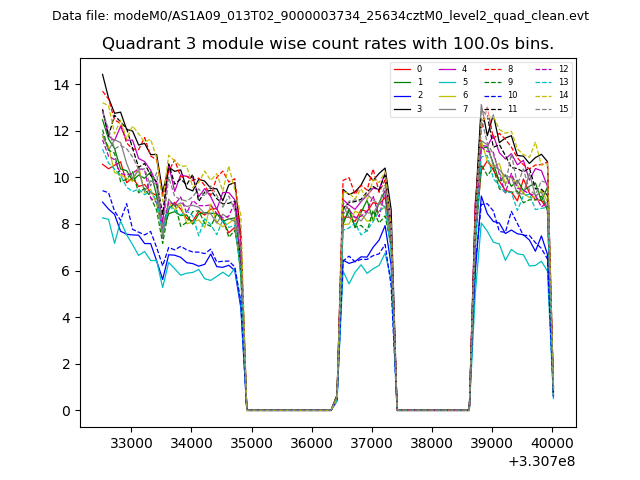

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

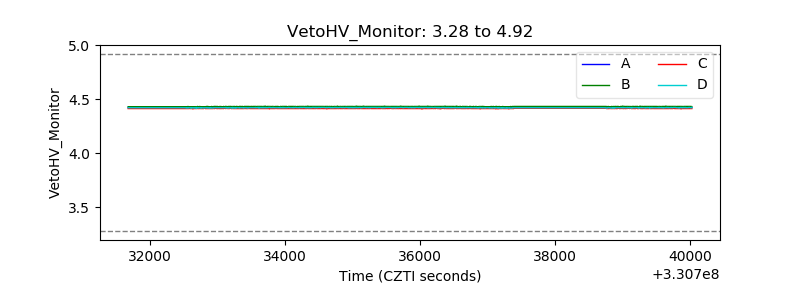

| Veto HV Monitor |  |
| Veto LLD |  |

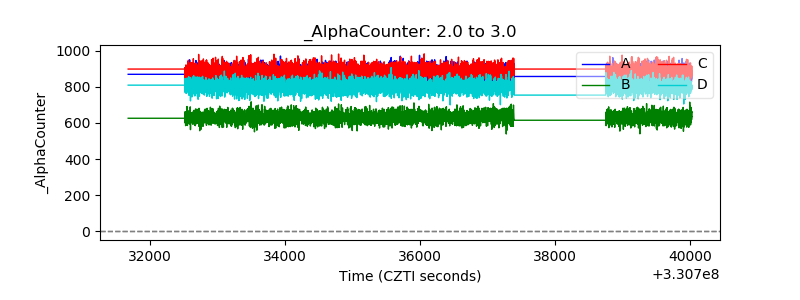

| Alpha Counter |  |

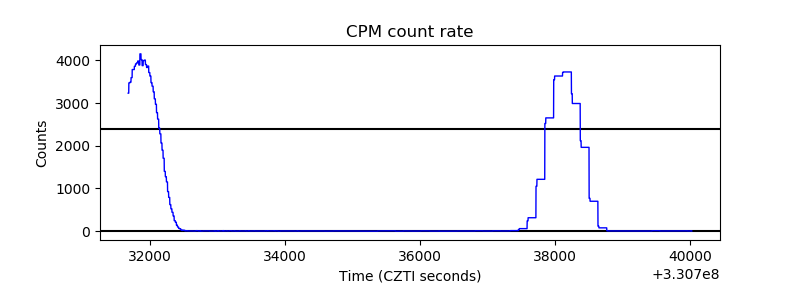

| _CPM_Rate |  |

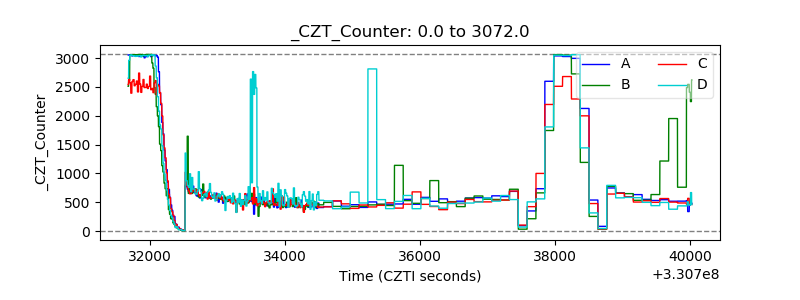

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

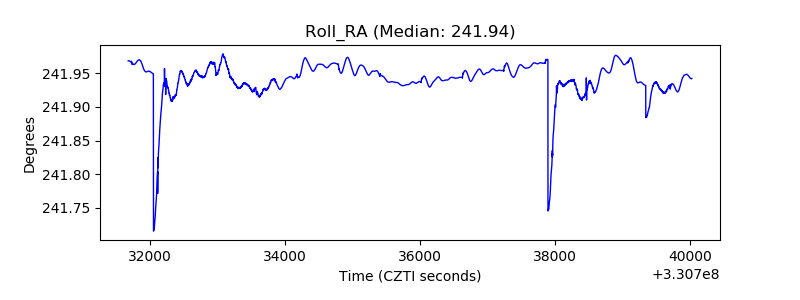

| _Roll_RA |  |

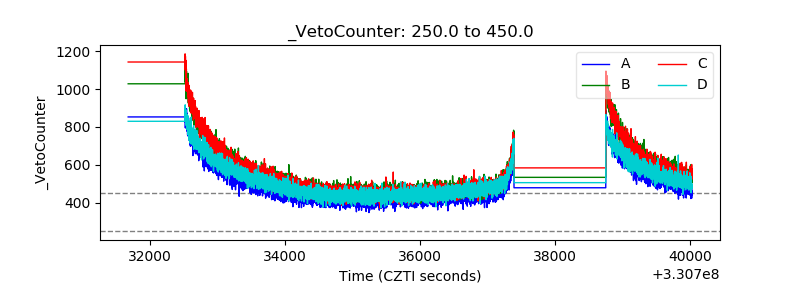

| Veto Counter |  |
