| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_068T01_9000003756_25797cztM0_level2.evt | modeM0/AS1A07_068T01_9000003756_25797cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,031,360 | 87,540,480 |
| Size | 476.9 MB | 83.5 MB |
| Events in quadrant A | 3,548,044 | 557,364 |
| Events in quadrant B | 3,389,849 | 565,973 |
| Events in quadrant C | 3,312,622 | 533,356 |
| Events in quadrant D | 4,424,083 | 512,902 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14769 | 0 |
| B | 0 | 14311 | 0 |
| C | 0 | 14197 | 0 |
| D | 0 | 17538 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6901 | 53 | 0.768005% |
| B | 6900 | 50 | 0.724638% |
| C | 6900 | 64 | 0.927536% |
| D | 6900 | 231 | 3.347826% |

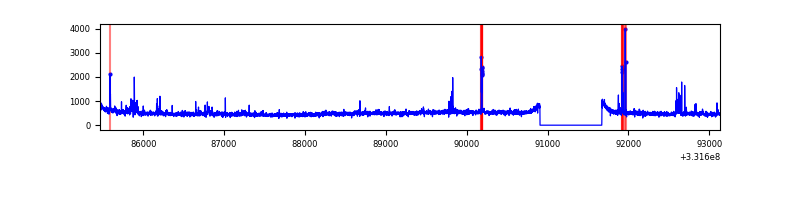

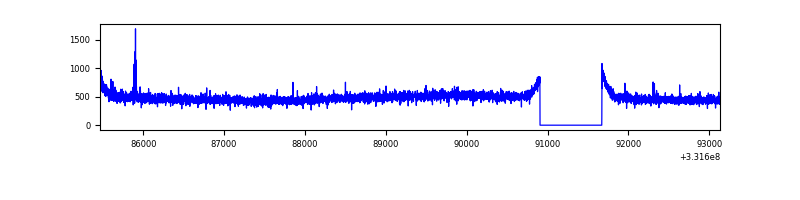

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 6902 | 16 | 16 | 0.21% | 0.23% |  |
| B | 7665 | 6901 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7665 | 6900 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7665 | 6901 | 198 | 198 | 2.58% | 2.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 249273 | 1443.9 | 854 | 838 | 172.1 |
| A | 13 | 254 | 9716 | 51.6 | 854 | 838 | 172.1 |
| A | 3 | 137 | 8004 | 41.65 | 854 | 838 | 172.1 |
| B | 12 | 111 | 20188 | 118.23 | 850 | 828 | 163.7 |
| B | 4 | 171 | 19714 | 115.33 | 850 | 828 | 163.7 |
| B | 0 | 219 | 19559 | 114.39 | 850 | 828 | 163.7 |
| C | 14 | 238 | 129815 | 682.29 | 809 | 812 | 189.1 |
| C | 3 | 233 | 26374 | 135.2 | 809 | 812 | 189.1 |
| C | 13 | 61 | 5581 | 25.22 | 809 | 812 | 189.1 |
| D | 1 | 52 | 511416 | 2649.71 | 805 | 787 | 192.7 |
| D | 8 | 195 | 417062 | 2160.1 | 805 | 787 | 192.7 |
| D | 13 | 104 | 313102 | 1620.64 | 805 | 787 | 192.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

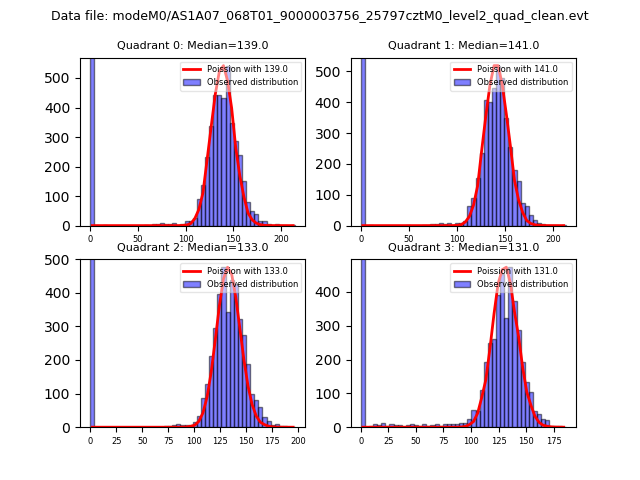

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

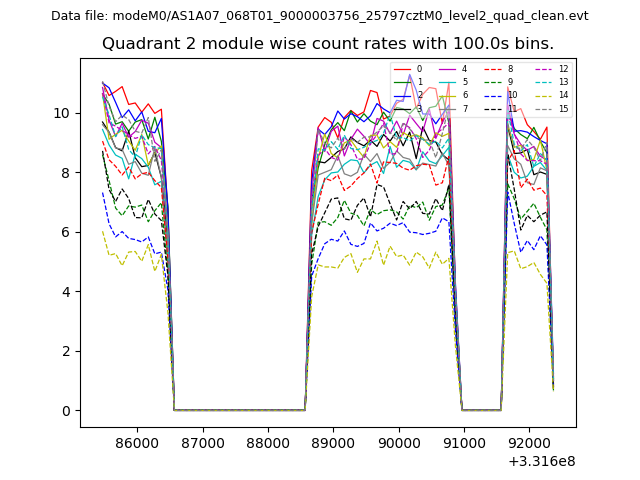

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

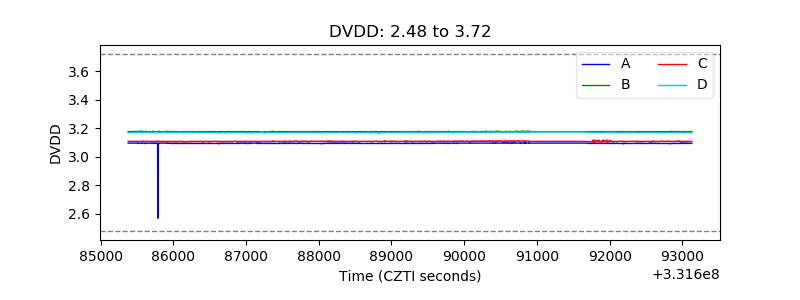

| D_VDD |  |
| Temperature 1 |  |

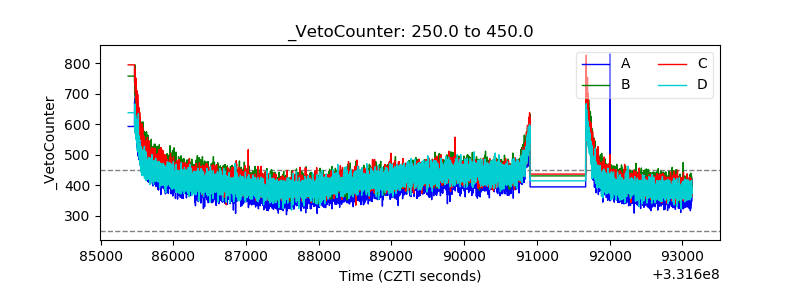

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

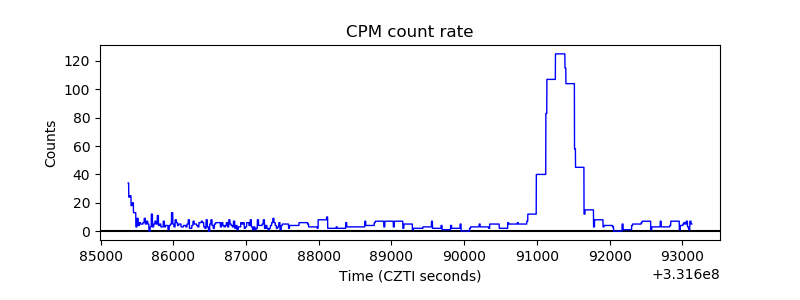

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

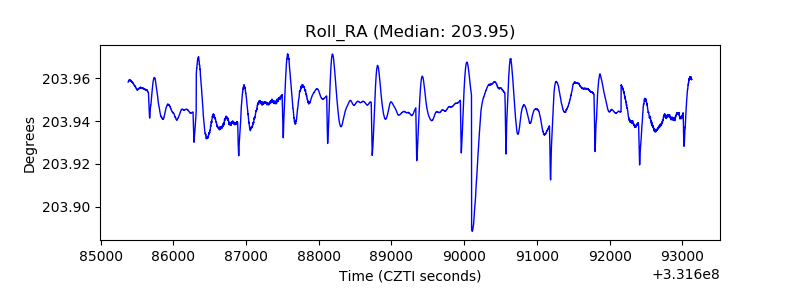

| _Roll_RA |  |
| Veto Counter |  |
