| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_068T01_9000003756_25823cztM0_level2.evt | modeM0/AS1A07_068T01_9000003756_25823cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,900,160 | 96,223,680 |
| Size | 517.7 MB | 91.8 MB |
| Events in quadrant A | 3,246,361 | 663,110 |
| Events in quadrant B | 3,366,952 | 663,350 |
| Events in quadrant C | 3,190,935 | 614,007 |
| Events in quadrant D | 6,221,668 | 544,764 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13470 | 2 |
| B | 0 | 13942 | 2 |
| C | 0 | 13293 | 2 |
| D | 0 | 22648 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6133 | 48 | 0.782651% |
| B | 6134 | 68 | 1.108575% |
| C | 6134 | 90 | 1.467232% |
| D | 6133 | 868 | 14.152943% |

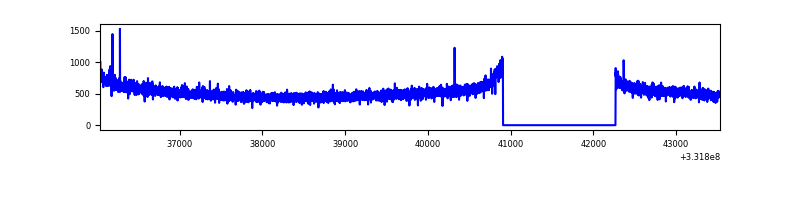

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7493 | 6133 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7494 | 6135 | 4 | 4 | 0.05% | 0.07% |  |
| C | 7494 | 6134 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7493 | 6133 | 894 | 894 | 11.93% | 14.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9325 | 51.03 | 839 | 828 | 166.5 |
| A | 0 | 226 | 7494 | 40.03 | 839 | 828 | 166.5 |
| A | 6 | 16 | 7347 | 39.15 | 839 | 828 | 166.5 |
| B | 0 | 219 | 60322 | 386.36 | 824 | 808 | 154.0 |
| B | 0 | 190 | 25530 | 160.49 | 824 | 808 | 154.0 |
| B | 5 | 172 | 21202 | 132.4 | 824 | 808 | 154.0 |
| C | 14 | 238 | 126017 | 690.31 | 779 | 784 | 181.4 |
| C | 3 | 233 | 24982 | 133.38 | 779 | 784 | 181.4 |
| C | 13 | 61 | 5486 | 25.92 | 779 | 784 | 181.4 |
| D | 7 | 80 | 2469103 | 13732.2 | 750 | 733 | 179.8 |
| D | 12 | 233 | 776433 | 4315.43 | 750 | 733 | 179.8 |
| D | 1 | 52 | 60571 | 332.89 | 750 | 733 | 179.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

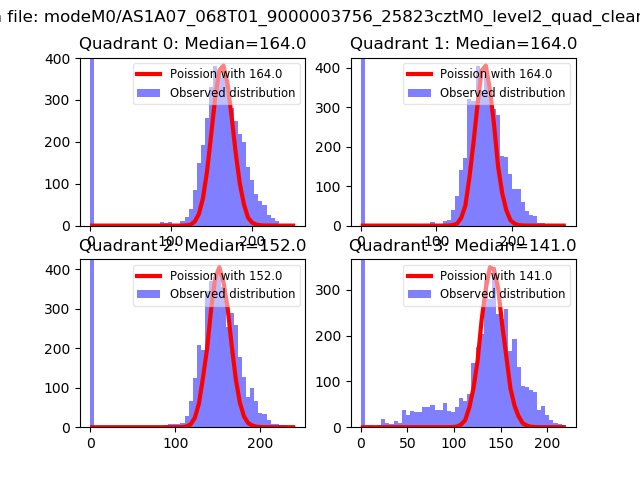

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

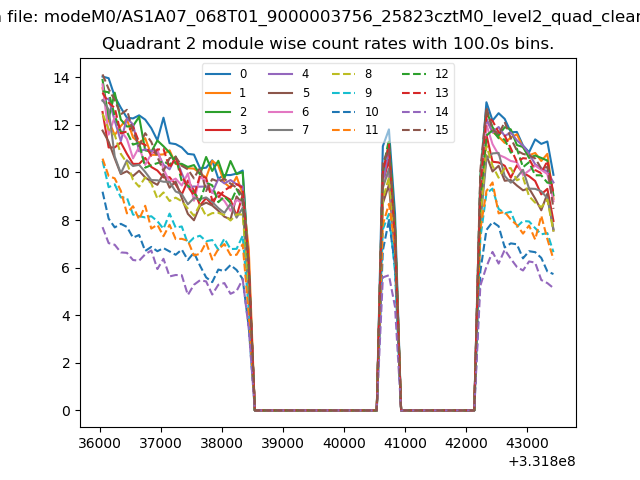

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

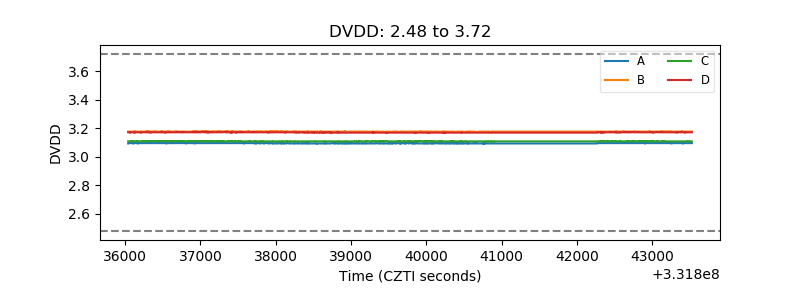

| D_VDD |  |

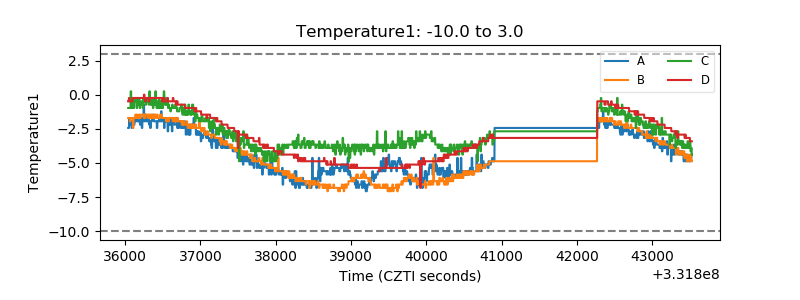

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

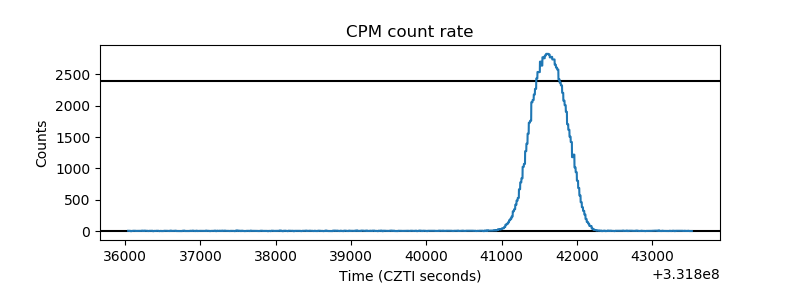

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

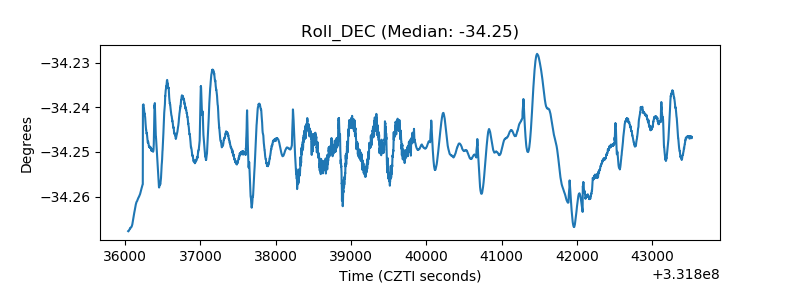

| _Roll_DEC |  |
| _Roll_RA |  |

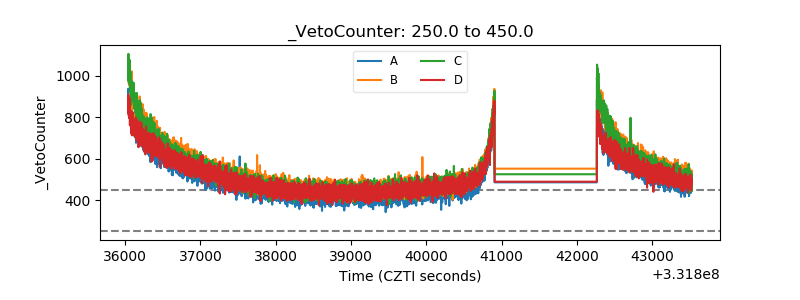

| Veto Counter |  |
