| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_085T03_9000003764_26048cztM0_level2.evt | modeM0/AS1A09_085T03_9000003764_26048cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,054,848,960 | 203,590,080 |
| Size | 1006.0 MB | 194.2 MB |
| Events in quadrant A | 6,186,344 | 1,340,927 |
| Events in quadrant B | 6,531,791 | 1,347,789 |
| Events in quadrant C | 6,230,135 | 1,318,244 |
| Events in quadrant D | 12,114,282 | 1,256,081 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27188 | 0 |
| B | 0 | 28209 | 0 |
| C | 0 | 27106 | 0 |
| D | 0 | 45145 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13065 | 83 | 0.635285% |
| B | 13066 | 187 | 1.431195% |
| C | 13066 | 235 | 1.798561% |
| D | 13066 | 1627 | 12.452166% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14800 | 13068 | 4 | 4 | 0.03% | 0.03% |  |
| B | 14801 | 13067 | 35 | 35 | 0.24% | 0.27% |  |
| C | 14801 | 13067 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14801 | 13068 | 1262 | 1262 | 8.53% | 9.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 169284 | 536.16 | 1559 | 1526 | 312.9 |
| A | 13 | 254 | 21462 | 63.72 | 1559 | 1526 | 312.9 |
| A | 3 | 137 | 14628 | 41.87 | 1559 | 1526 | 312.9 |
| B | 0 | 190 | 172671 | 571.84 | 1552 | 1509 | 299.3 |
| B | 0 | 229 | 164951 | 546.04 | 1552 | 1509 | 299.3 |
| B | 5 | 172 | 51721 | 167.75 | 1552 | 1509 | 299.3 |
| C | 14 | 238 | 239645 | 684.65 | 1501 | 1510 | 347.8 |
| C | 3 | 233 | 107400 | 304.44 | 1501 | 1510 | 347.8 |
| C | 8 | 128 | 16665 | 43.57 | 1501 | 1510 | 347.8 |
| D | 1 | 52 | 5456143 | 14719.33 | 1439 | 1402 | 370.6 |
| D | 12 | 233 | 490037 | 1318.56 | 1439 | 1402 | 370.6 |
| D | 1 | 3 | 462845 | 1245.18 | 1439 | 1402 | 370.6 |

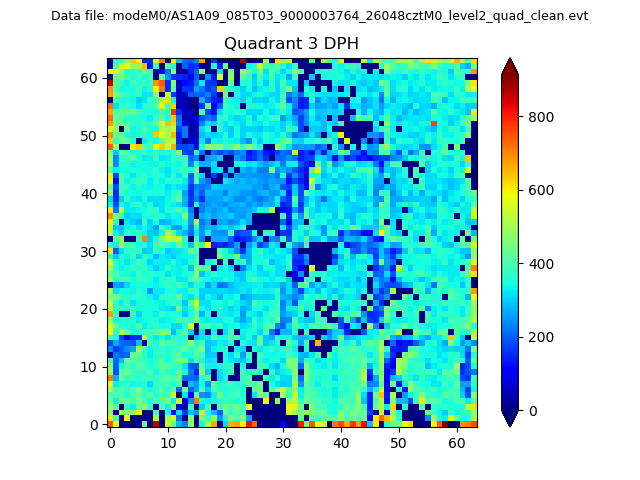

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

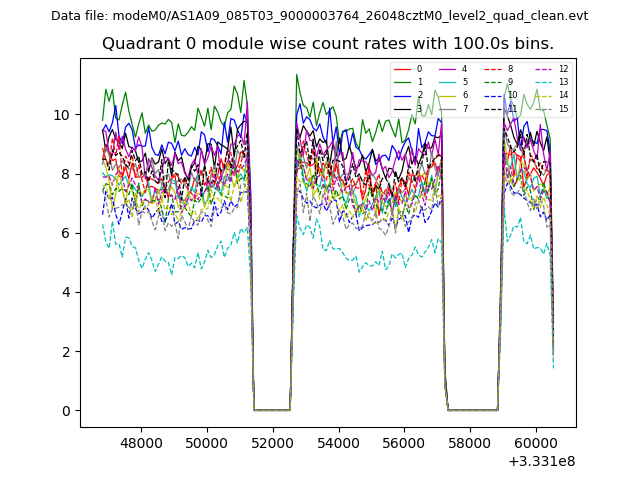

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

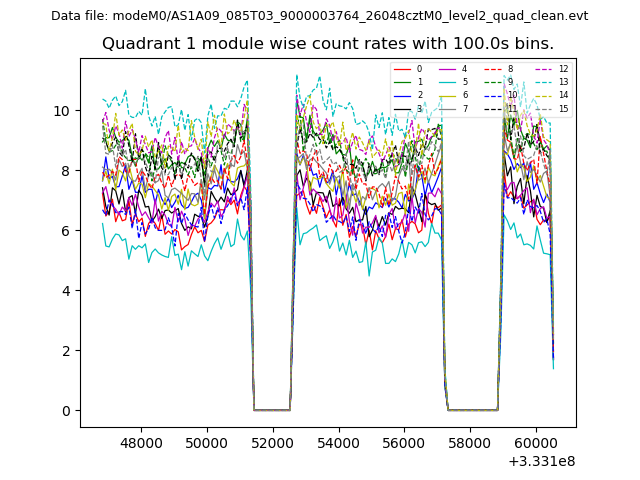

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

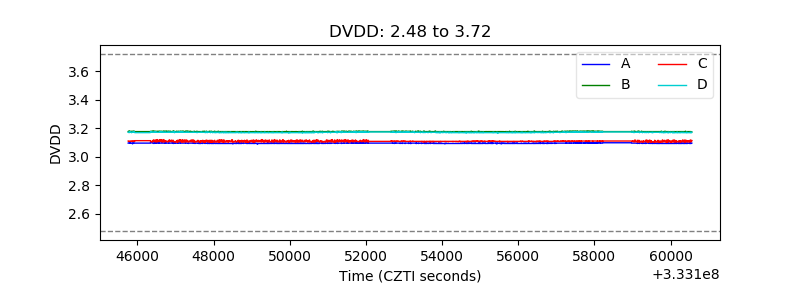

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

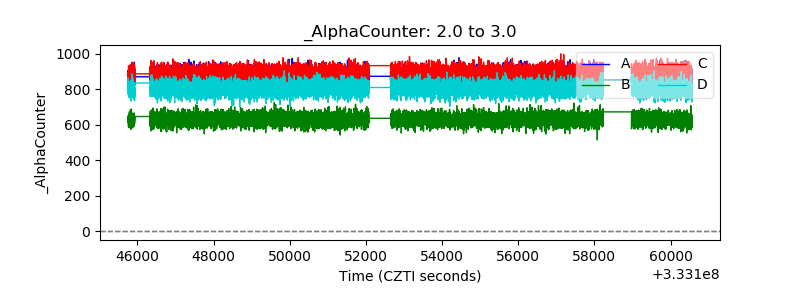

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

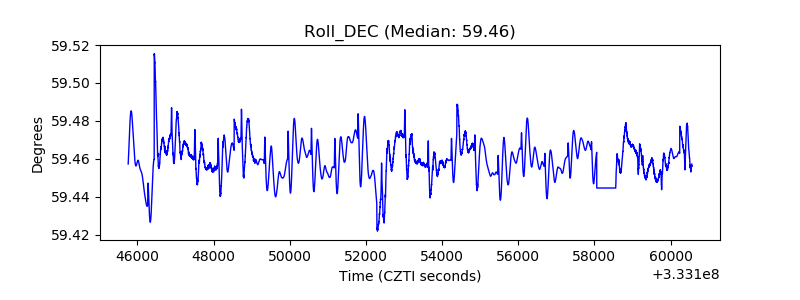

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
