| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_142T01_9000003766_26072cztM0_level2.evt | modeM0/AS1A09_142T01_9000003766_26072cztM0_level2_quad_clean.evt |
| Size (bytes) | 137,044,800 | 37,304,640 |
| Size | 130.7 MB | 35.6 MB |
| Events in quadrant A | 866,294 | 258,646 |
| Events in quadrant B | 948,730 | 255,019 |
| Events in quadrant C | 872,164 | 242,457 |
| Events in quadrant D | 1,331,856 | 234,972 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3800 | 0 |
| B | 0 | 4068 | 0 |
| C | 0 | 3814 | 0 |
| D | 0 | 5170 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1893 | 0 | 0.000000% |
| B | 1894 | 18 | 0.950370% |
| C | 1894 | 5 | 0.263992% |
| D | 1894 | 138 | 7.286167% |

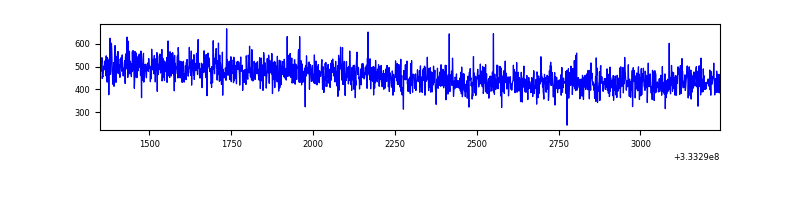

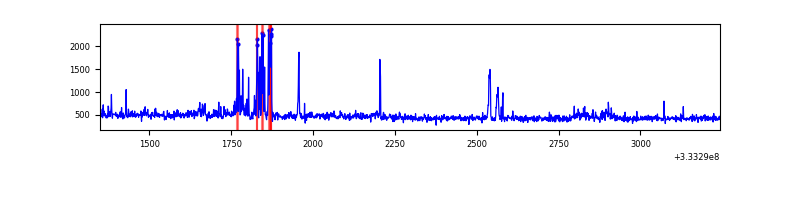

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1893 | 1893 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1894 | 1894 | 11 | 11 | 0.58% | 0.58% |  |
| C | 1894 | 1894 | 1 | 1 | 0.05% | 0.05% |  |
| D | 1894 | 1894 | 135 | 135 | 7.13% | 7.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 4529 | 93.16 | 222 | 218 | 46.3 |
| A | 13 | 254 | 3902 | 79.61 | 222 | 218 | 46.3 |
| A | 0 | 13 | 2131 | 41.34 | 222 | 218 | 46.3 |
| B | 5 | 172 | 85972 | 2052.67 | 216 | 211 | 41.8 |
| B | 0 | 190 | 20040 | 474.6 | 216 | 211 | 41.8 |
| B | 12 | 111 | 4308 | 98.06 | 216 | 211 | 41.8 |
| C | 14 | 238 | 34040 | 670.27 | 212 | 212 | 50.5 |
| C | 13 | 250 | 3907 | 73.21 | 212 | 212 | 50.5 |
| C | 14 | 225 | 3837 | 71.83 | 212 | 212 | 50.5 |
| D | 12 | 233 | 407409 | 7149.33 | 212 | 206 | 57.0 |
| D | 1 | 52 | 77061 | 1349.35 | 212 | 206 | 57.0 |
| D | 8 | 195 | 26850 | 467.78 | 212 | 206 | 57.0 |

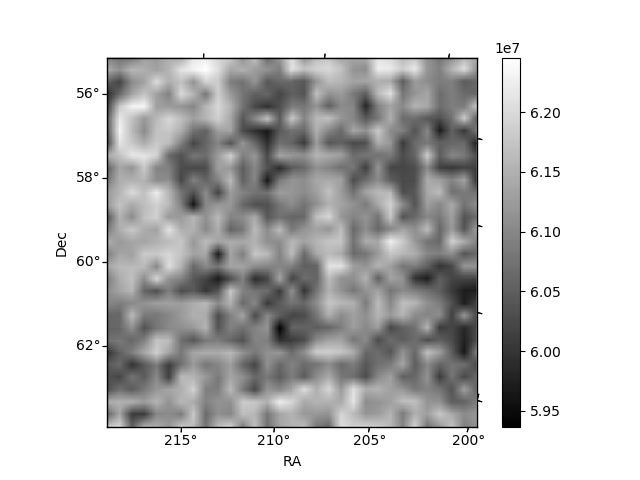

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

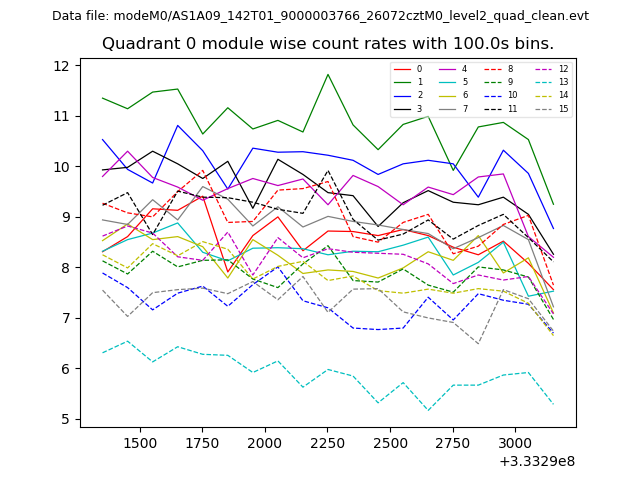

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

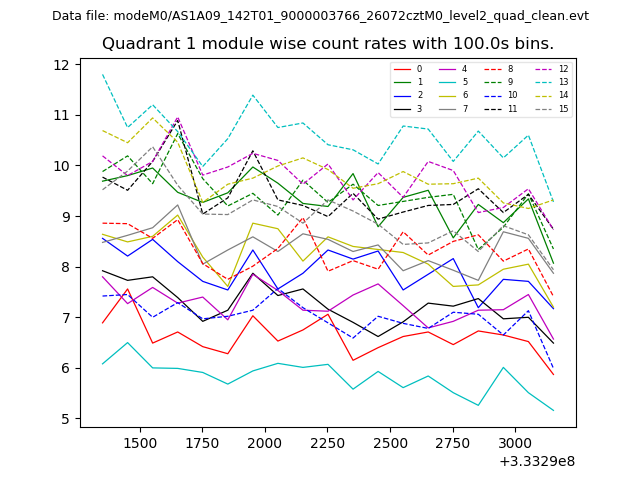

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

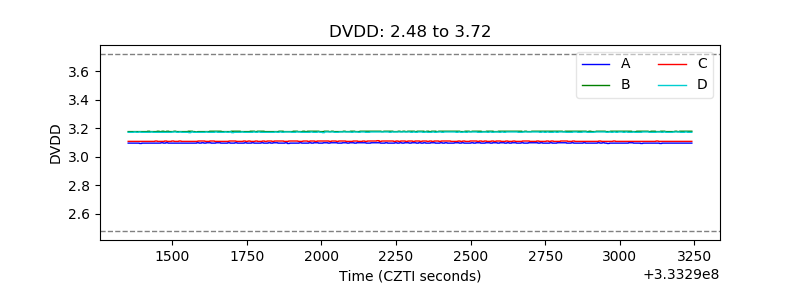

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

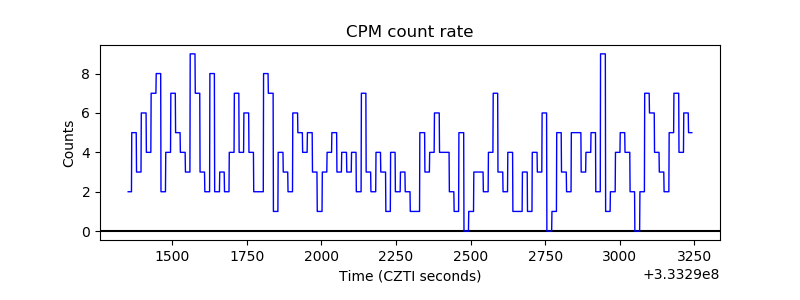

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

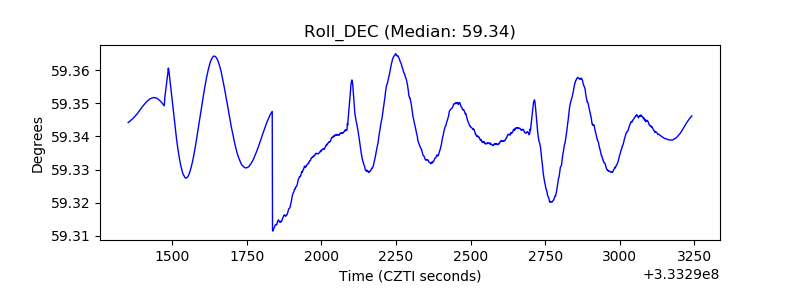

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
