| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_008T02_9000003796_26318cztM0_level2.evt | modeM0/AS1A09_008T02_9000003796_26318cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,800,960 | 112,979,520 |
| Size | 502.4 MB | 107.7 MB |
| Events in quadrant A | 3,283,694 | 740,493 |
| Events in quadrant B | 3,368,880 | 762,800 |
| Events in quadrant C | 4,069,240 | 731,024 |
| Events in quadrant D | 4,757,625 | 699,919 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14318 | 0 |
| B | 0 | 14436 | 0 |
| C | 0 | 16334 | 0 |
| D | 0 | 18670 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6997 | 45 | 0.643133% |
| B | 6996 | 72 | 1.029160% |
| C | 6996 | 259 | 3.702115% |
| D | 6996 | 402 | 5.746141% |

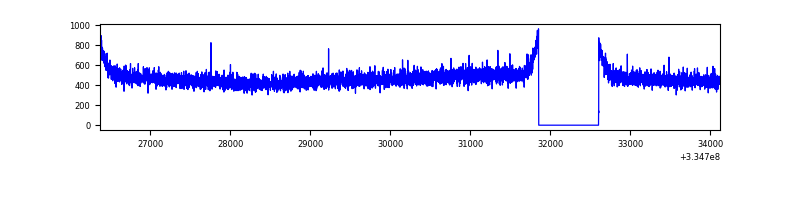

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7747 | 6997 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7746 | 6997 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7746 | 6996 | 62 | 62 | 0.80% | 0.89% |  |
| D | 7746 | 6996 | 305 | 305 | 3.94% | 4.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11061 | 60.04 | 850 | 832 | 170.4 |
| A | 3 | 137 | 7764 | 40.69 | 850 | 832 | 170.4 |
| A | 0 | 226 | 7232 | 37.56 | 850 | 832 | 170.4 |
| B | 12 | 16 | 33720 | 204.84 | 848 | 824 | 160.6 |
| B | 12 | 111 | 19497 | 116.28 | 848 | 824 | 160.6 |
| B | 11 | 111 | 17524 | 103.99 | 848 | 824 | 160.6 |
| C | 4 | 254 | 428004 | 2196.87 | 833 | 837 | 194.4 |
| C | 3 | 233 | 245684 | 1259.22 | 833 | 837 | 194.4 |
| C | 14 | 238 | 133694 | 683.27 | 833 | 837 | 194.4 |
| D | 1 | 52 | 869194 | 4489.84 | 818 | 798 | 193.4 |
| D | 11 | 176 | 655101 | 3382.92 | 818 | 798 | 193.4 |
| D | 12 | 233 | 115133 | 591.14 | 818 | 798 | 193.4 |

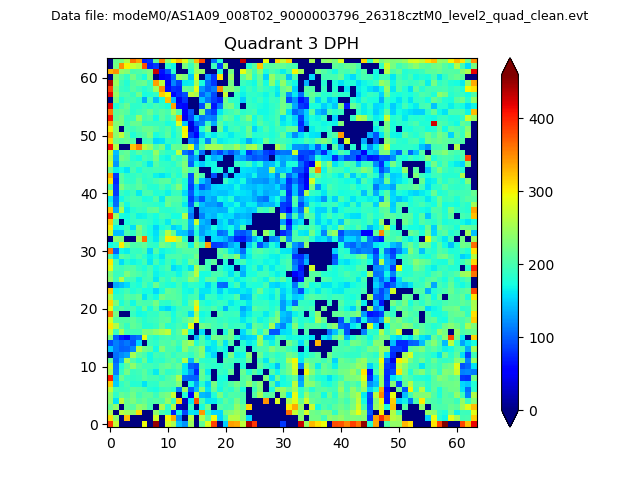

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

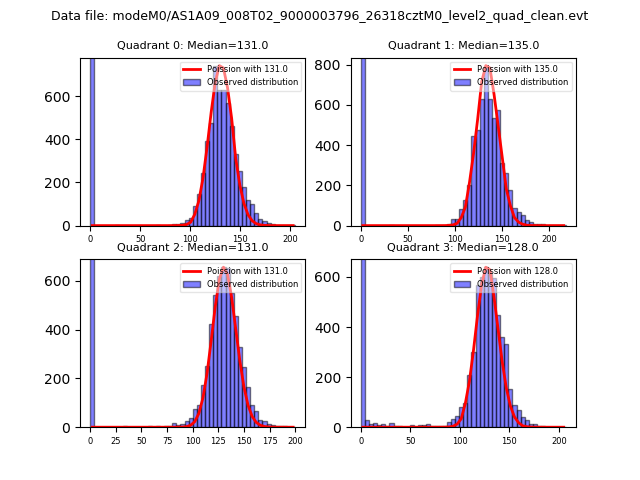

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

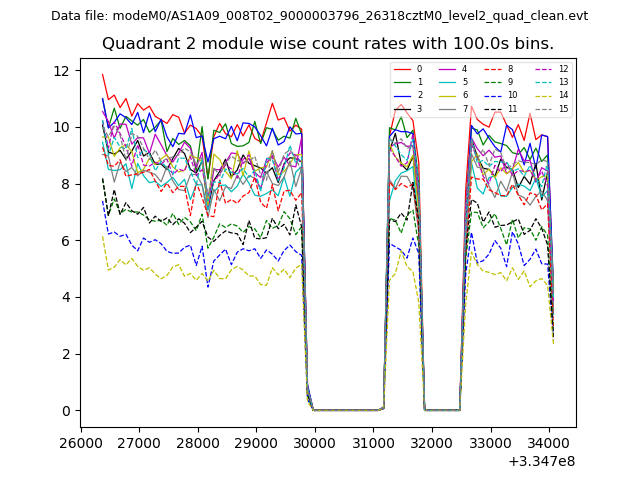

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

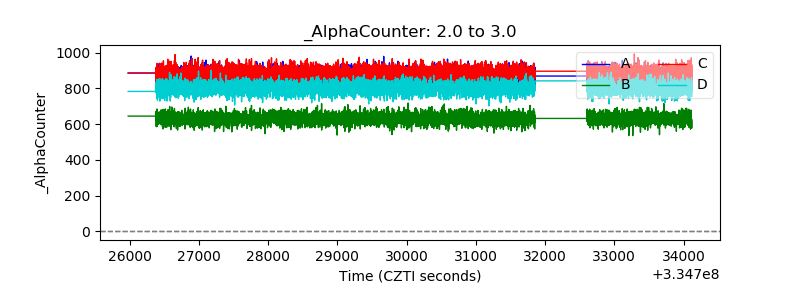

| Alpha Counter |  |

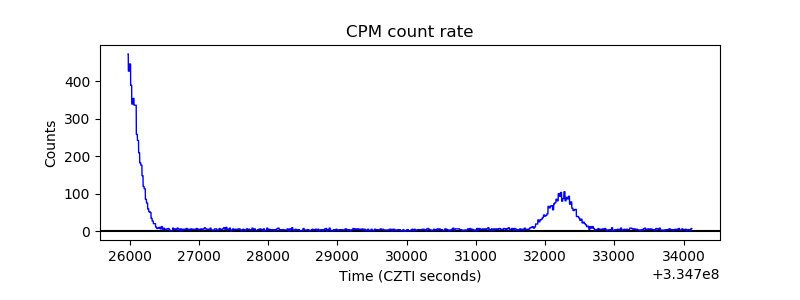

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

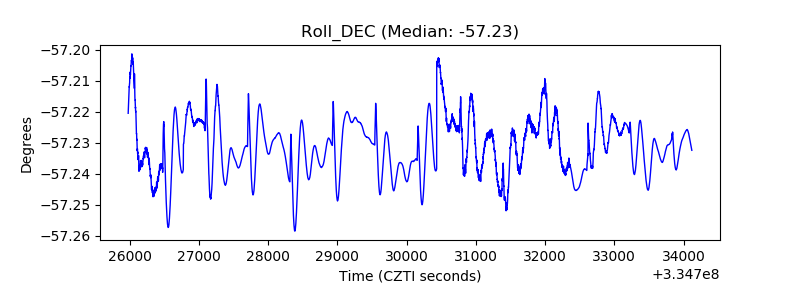

| _Roll_DEC |  |

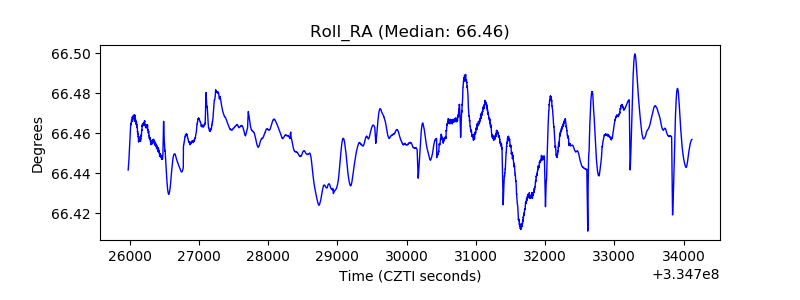

| _Roll_RA |  |
| Veto Counter |  |
