| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_008T02_9000003796_26325cztM0_level2.evt | modeM0/AS1A09_008T02_9000003796_26325cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,814,400 | 77,420,160 |
| Size | 533.9 MB | 73.8 MB |
| Events in quadrant A | 3,173,119 | 487,398 |
| Events in quadrant B | 3,166,354 | 496,199 |
| Events in quadrant C | 3,853,066 | 466,178 |
| Events in quadrant D | 6,326,855 | 446,939 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13721 | 0 |
| B | 0 | 13604 | 0 |
| C | 0 | 15480 | 0 |
| D | 0 | 23387 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6415 | 49 | 0.763835% |
| B | 6415 | 41 | 0.639127% |
| C | 6413 | 227 | 3.539685% |
| D | 6415 | 716 | 11.161341% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7480 | 6415 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7480 | 6415 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7480 | 6415 | 66 | 66 | 0.88% | 1.03% |  |
| D | 7481 | 6416 | 595 | 595 | 7.95% | 9.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 60983 | 375.39 | 805 | 788 | 160.4 |
| A | 13 | 254 | 9802 | 56.21 | 805 | 788 | 160.4 |
| A | 3 | 137 | 7295 | 40.58 | 805 | 788 | 160.4 |
| B | 0 | 230 | 29632 | 189.69 | 803 | 783 | 152.1 |
| B | 12 | 111 | 17938 | 112.8 | 803 | 783 | 152.1 |
| B | 11 | 111 | 16058 | 100.44 | 803 | 783 | 152.1 |
| C | 3 | 233 | 604725 | 3419.6 | 758 | 763 | 176.6 |
| C | 14 | 238 | 125085 | 703.91 | 758 | 763 | 176.6 |
| C | 0 | 207 | 100788 | 566.34 | 758 | 763 | 176.6 |
| D | 1 | 52 | 2914944 | 16257.29 | 751 | 733 | 179.3 |
| D | 12 | 233 | 407878 | 2271.31 | 751 | 733 | 179.3 |
| D | 11 | 176 | 143508 | 796.49 | 751 | 733 | 179.3 |

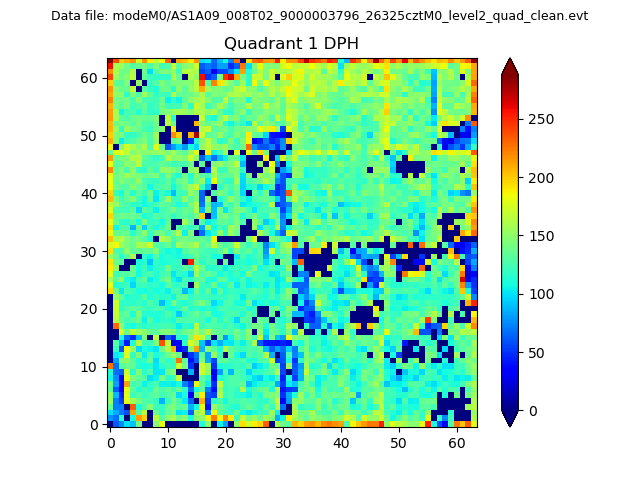

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

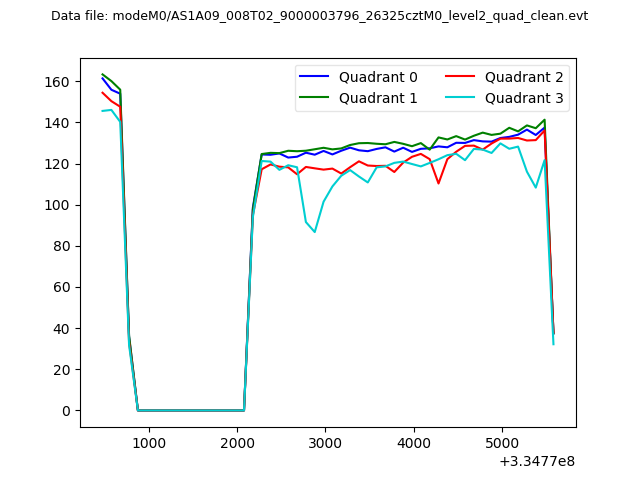

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

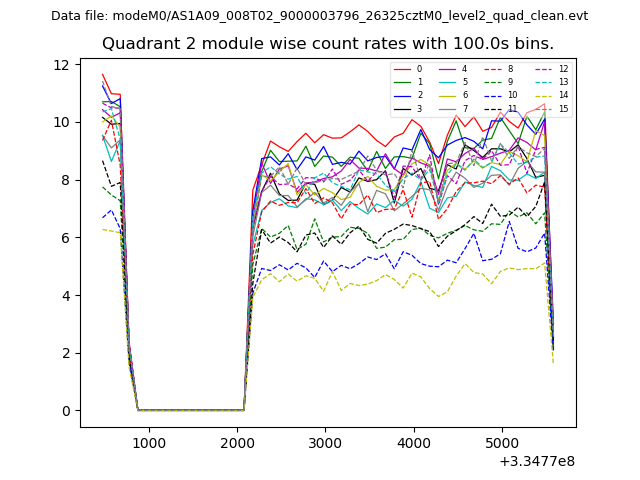

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
