| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_038T03_9000003800_26349cztM0_level2.evt | modeM0/AS1A09_038T03_9000003800_26349cztM0_level2_quad_clean.evt |
| Size (bytes) | 385,724,160 | 94,150,080 |
| Size | 367.9 MB | 89.8 MB |
| Events in quadrant A | 2,231,858 | 628,778 |
| Events in quadrant B | 2,316,473 | 642,978 |
| Events in quadrant C | 3,499,287 | 615,316 |
| Events in quadrant D | 3,292,096 | 611,655 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10069 | 0 |
| B | 0 | 10176 | 0 |
| C | 0 | 13700 | 0 |
| D | 0 | 13196 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5024 | 5 | 0.099522% |
| B | 5025 | 4 | 0.079602% |
| C | 5025 | 186 | 3.701493% |
| D | 5024 | 97 | 1.930732% |

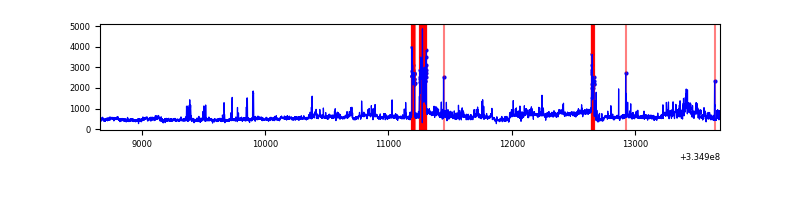

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5024 | 5024 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5025 | 5025 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5025 | 5025 | 81 | 81 | 1.61% | 1.61% |  |
| D | 5024 | 5024 | 87 | 87 | 1.73% | 1.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 9064 | 73.39 | 576 | 565 | 115.8 |
| A | 13 | 254 | 7945 | 63.73 | 576 | 565 | 115.8 |
| A | 3 | 137 | 5369 | 41.49 | 576 | 565 | 115.8 |
| B | 0 | 219 | 41712 | 371.35 | 575 | 561 | 110.8 |
| B | 0 | 230 | 18909 | 165.57 | 575 | 561 | 110.8 |
| B | 12 | 111 | 13249 | 114.5 | 575 | 561 | 110.8 |
| C | 3 | 233 | 981624 | 7639.15 | 553 | 558 | 128.4 |
| C | 0 | 239 | 267397 | 2077.76 | 553 | 558 | 128.4 |
| C | 14 | 238 | 87984 | 680.75 | 553 | 558 | 128.4 |
| D | 1 | 52 | 1124012 | 8479.97 | 557 | 544 | 132.5 |
| D | 2 | 234 | 24611 | 181.66 | 557 | 544 | 132.5 |
| D | 11 | 176 | 17346 | 126.82 | 557 | 544 | 132.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

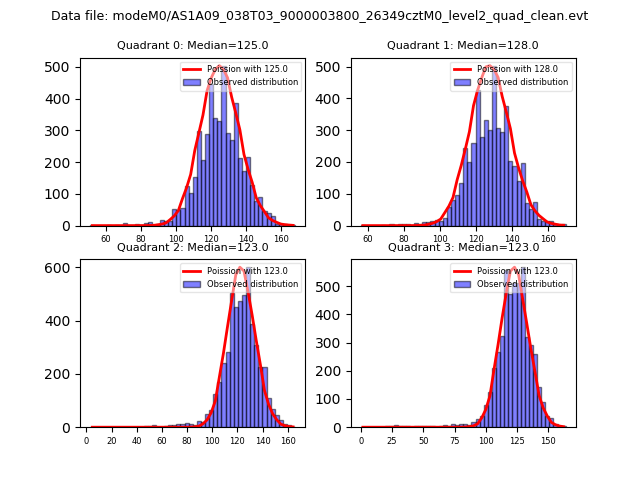

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

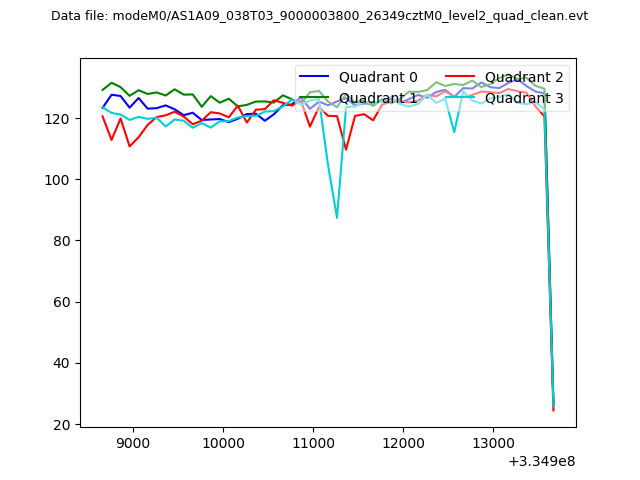

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

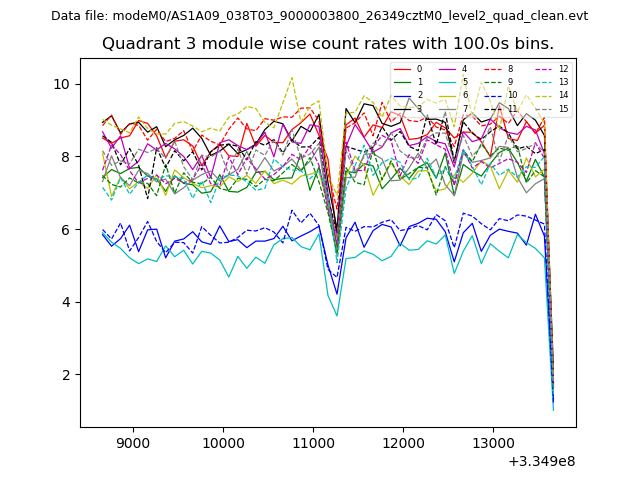

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

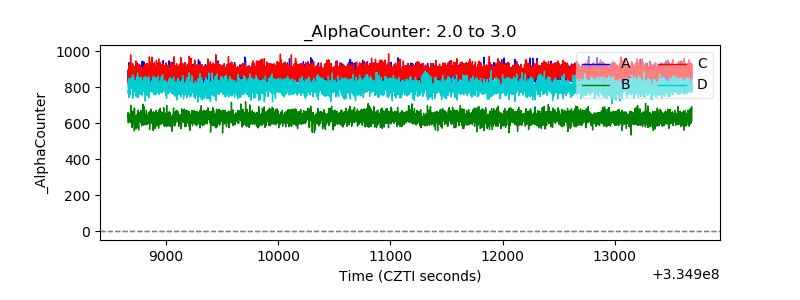

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

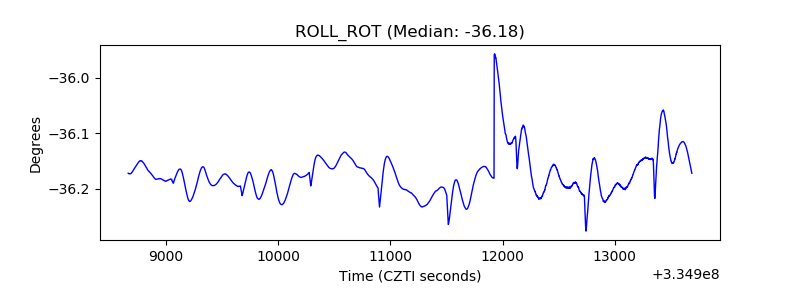

| _ROLL_ROT |  |

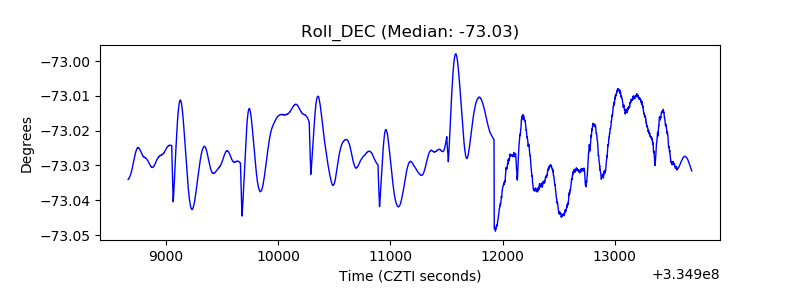

| _Roll_DEC |  |
| _Roll_RA |  |

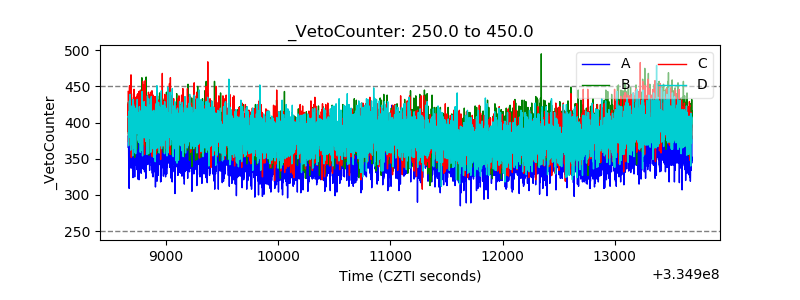

| Veto Counter |  |
