| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_127T02_9000003818_26408cztM0_level2.evt | modeM0/AS1A09_127T02_9000003818_26408cztM0_level2_quad_clean.evt |
| Size (bytes) | 205,770,240 | 30,277,440 |
| Size | 196.2 MB | 28.9 MB |
| Events in quadrant A | 1,429,032 | 177,249 |
| Events in quadrant B | 1,464,857 | 183,845 |
| Events in quadrant C | 1,580,042 | 174,739 |
| Events in quadrant D | 1,557,577 | 172,371 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6063 | 0 |
| B | 0 | 6078 | 0 |
| C | 0 | 6427 | 0 |
| D | 0 | 6506 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2917 | 96 | 3.291052% |
| B | 2917 | 106 | 3.633870% |
| C | 2916 | 124 | 4.252401% |
| D | 2916 | 95 | 3.257888% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3282 | 2918 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3282 | 2918 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3281 | 2917 | 5 | 5 | 0.15% | 0.17% |  |
| D | 3281 | 2917 | 7 | 7 | 0.21% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 6012 | 73.47 | 368 | 360 | 76.9 |
| A | 13 | 254 | 4302 | 51.24 | 368 | 360 | 76.9 |
| A | 3 | 137 | 3637 | 42.59 | 368 | 360 | 76.9 |
| B | 12 | 111 | 9215 | 119.95 | 369 | 359 | 73.8 |
| B | 11 | 111 | 8152 | 105.56 | 369 | 359 | 73.8 |
| B | 14 | 111 | 7319 | 94.27 | 369 | 359 | 73.8 |
| C | 3 | 233 | 77030 | 901.64 | 355 | 356 | 85.0 |
| C | 14 | 238 | 56816 | 663.94 | 355 | 356 | 85.0 |
| C | 2 | 16 | 49095 | 573.14 | 355 | 356 | 85.0 |
| D | 1 | 52 | 110397 | 1262.74 | 357 | 347 | 87.2 |
| D | 12 | 233 | 51909 | 591.64 | 357 | 347 | 87.2 |
| D | 7 | 223 | 23341 | 263.84 | 357 | 347 | 87.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

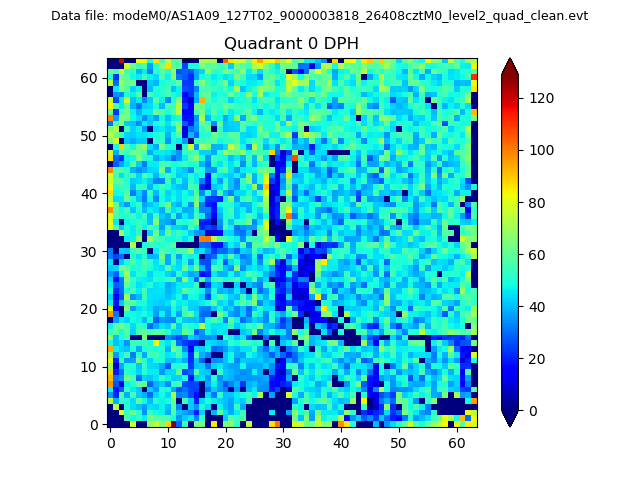

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

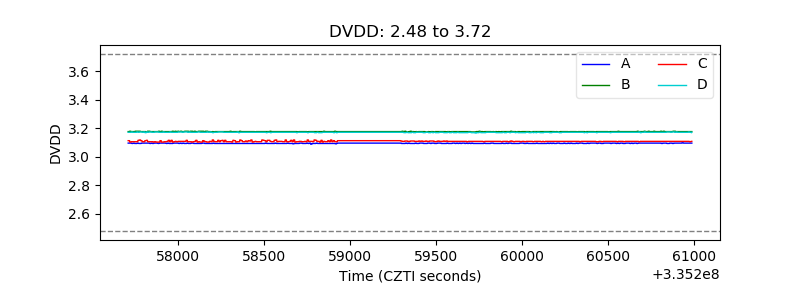

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

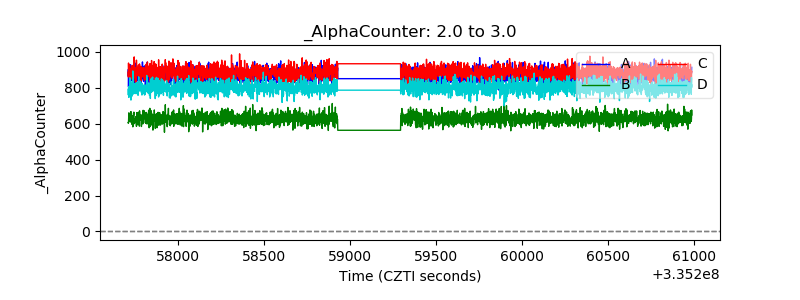

| Alpha Counter |  |
| _CPM_Rate |  |

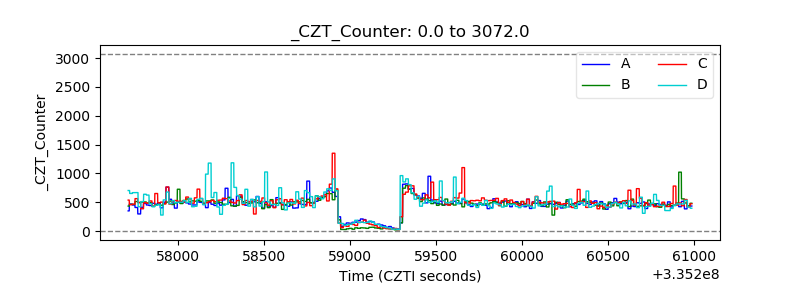

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

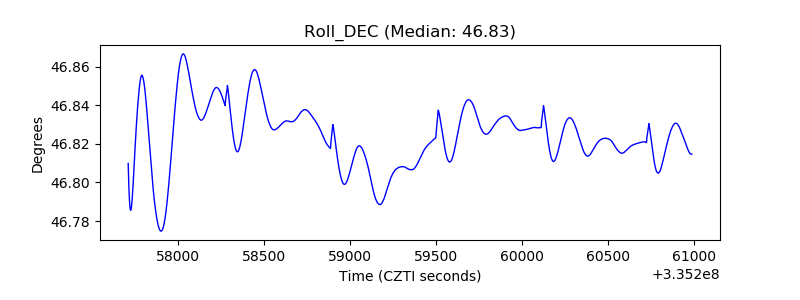

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
