| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_038T10_9000003844_26566cztM0_level2.evt | modeM0/AS1A09_038T10_9000003844_26566cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,976,320 | 82,422,720 |
| Size | 498.7 MB | 78.6 MB |
| Events in quadrant A | 2,305,712 | 594,751 |
| Events in quadrant B | 2,663,814 | 591,304 |
| Events in quadrant C | 3,435,600 | 572,928 |
| Events in quadrant D | 7,123,662 | 415,371 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9607 | 0 |
| B | 0 | 10817 | 0 |
| C | 0 | 13312 | 0 |
| D | 0 | 24309 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4565 | 25 | 0.547645% |
| B | 4565 | 200 | 4.381161% |
| C | 4565 | 324 | 7.097481% |
| D | 4564 | 1964 | 43.032428% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4855 | 4566 | 2 | 2 | 0.04% | 0.04% |  |
| B | 4855 | 4566 | 142 | 142 | 2.92% | 3.11% |  |
| C | 4855 | 4566 | 150 | 150 | 3.09% | 3.29% |  |
| D | 4854 | 4564 | 1663 | 1663 | 34.26% | 36.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 88443 | 785.26 | 557 | 544 | 111.9 |
| A | 6 | 16 | 40217 | 354.42 | 557 | 544 | 111.9 |
| A | 5 | 168 | 26537 | 232.21 | 557 | 544 | 111.9 |
| B | 5 | 172 | 451445 | 4351.51 | 545 | 530 | 103.6 |
| B | 3 | 112 | 32117 | 304.83 | 545 | 530 | 103.6 |
| B | 0 | 189 | 21687 | 204.17 | 545 | 530 | 103.6 |
| C | 4 | 254 | 1076745 | 8685.69 | 526 | 529 | 123.9 |
| C | 3 | 233 | 202753 | 1632.07 | 526 | 529 | 123.9 |
| C | 14 | 238 | 84404 | 676.92 | 526 | 529 | 123.9 |
| D | 7 | 80 | 4415104 | 44205.3 | 411 | 400 | 99.9 |
| D | 1 | 52 | 852540 | 8532.65 | 411 | 400 | 99.9 |
| D | 2 | 250 | 174076 | 1739.05 | 411 | 400 | 99.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

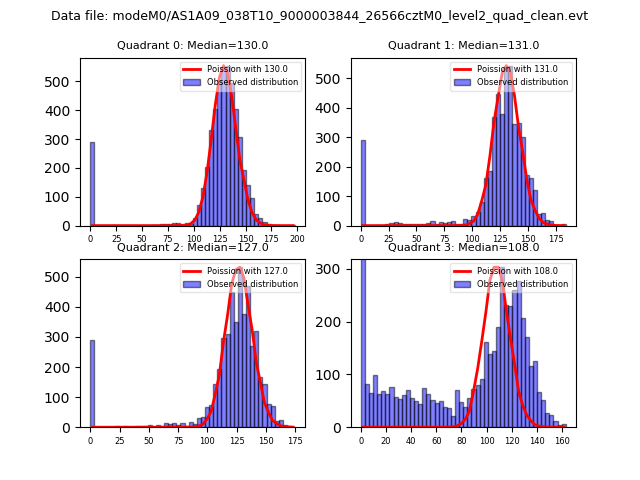

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

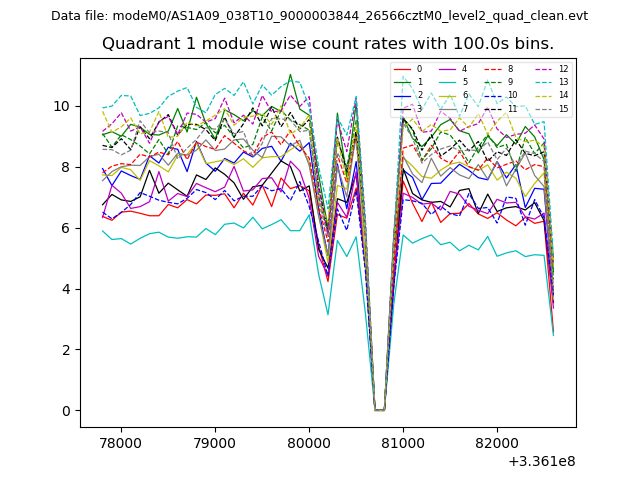

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

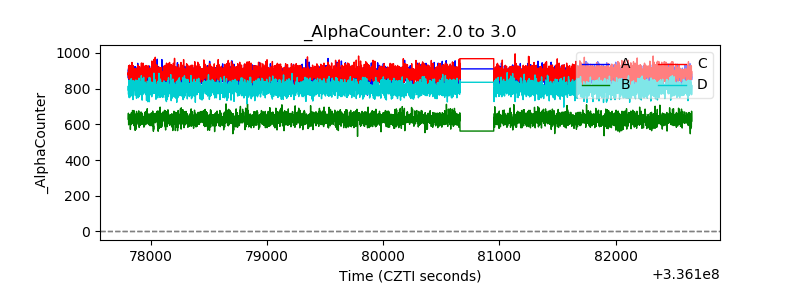

| Alpha Counter |  |
| _CPM_Rate |  |

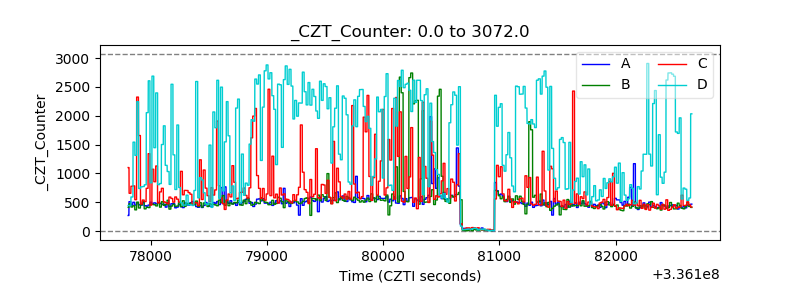

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

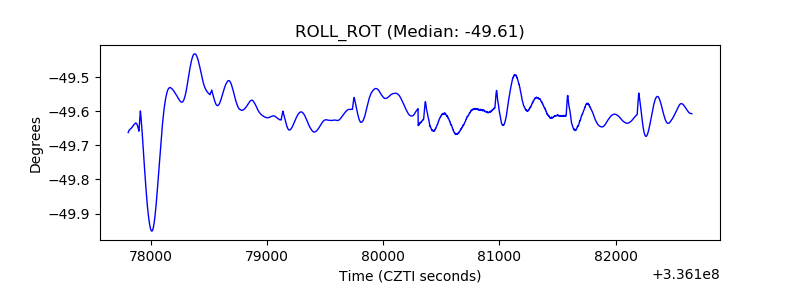

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
