| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_145T01_9000003848_26674cztM0_level2.evt | modeM0/AS1A09_145T01_9000003848_26674cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,378,969,280 | 395,458,560 |
| Size | 2.2 GB | 377.1 MB |
| Events in quadrant A | 15,236,359 | 2,654,195 |
| Events in quadrant B | 13,467,048 | 2,704,034 |
| Events in quadrant C | 13,896,782 | 2,585,983 |
| Events in quadrant D | 27,623,564 | 2,172,069 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62620 | 0 |
| B | 0 | 57103 | 0 |
| C | 0 | 58105 | 0 |
| D | 0 | 100301 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 27057 | 281 | 1.038548% |
| B | 27058 | 204 | 0.753936% |
| C | 27058 | 407 | 1.504176% |
| D | 27059 | 5476 | 20.237259% |

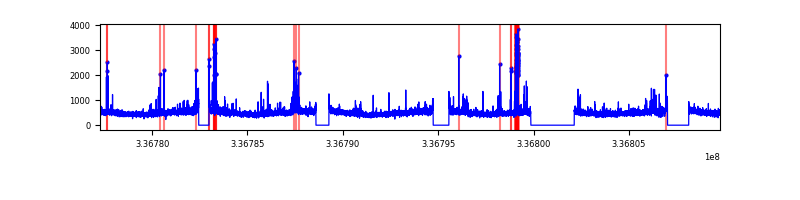

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32506 | 27062 | 107 | 107 | 0.33% | 0.40% |  |
| B | 32507 | 27063 | 27 | 27 | 0.08% | 0.10% |  |
| C | 32507 | 27063 | 78 | 78 | 0.24% | 0.29% |  |
| D | 32507 | 27063 | 3899 | 3899 | 11.99% | 14.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1795861 | 2691.02 | 3338 | 3284 | 666.1 |
| A | 13 | 170 | 563574 | 841.11 | 3338 | 3284 | 666.1 |
| A | 13 | 254 | 44311 | 61.59 | 3338 | 3284 | 666.1 |
| B | 10 | 251 | 107948 | 167.37 | 3325 | 3257 | 625.5 |
| B | 15 | 33 | 83895 | 128.92 | 3325 | 3257 | 625.5 |
| B | 12 | 111 | 74721 | 114.25 | 3325 | 3257 | 625.5 |
| C | 3 | 233 | 650313 | 862.65 | 3192 | 3225 | 750.1 |
| C | 14 | 238 | 515099 | 682.39 | 3192 | 3225 | 750.1 |
| C | 2 | 16 | 169755 | 222.01 | 3192 | 3225 | 750.1 |
| D | 7 | 80 | 12158616 | 17681.23 | 2825 | 2751 | 687.5 |
| D | 1 | 52 | 3113267 | 4524.38 | 2825 | 2751 | 687.5 |
| D | 2 | 250 | 1106891 | 1606.02 | 2825 | 2751 | 687.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

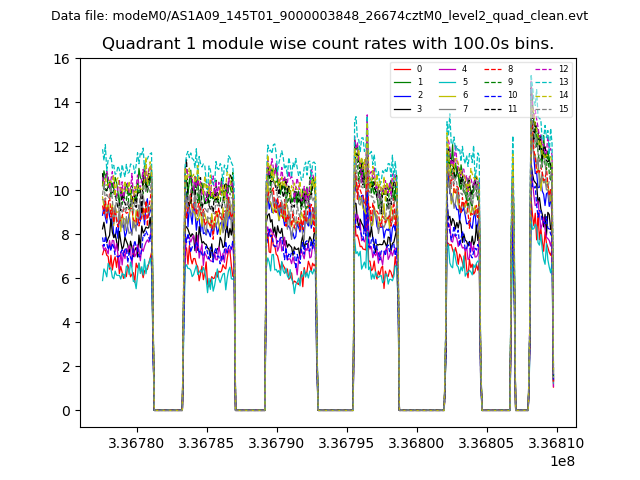

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

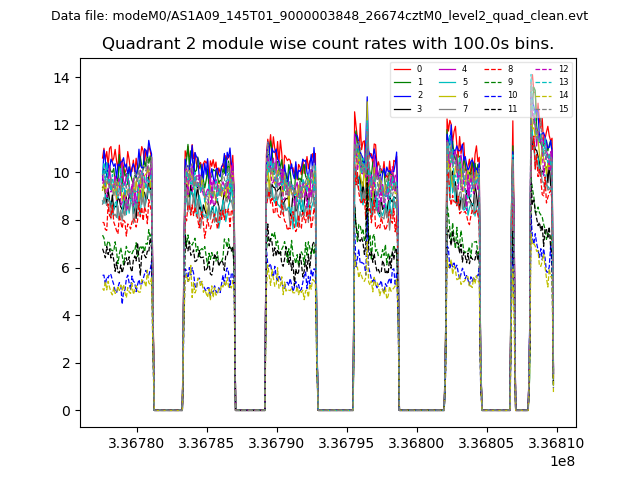

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

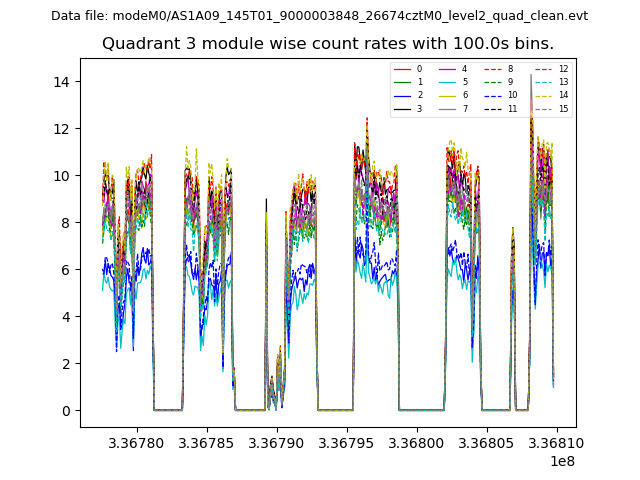

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

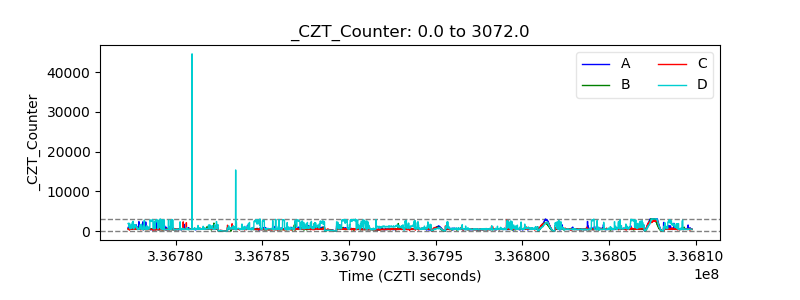

| CZT Counter |  |

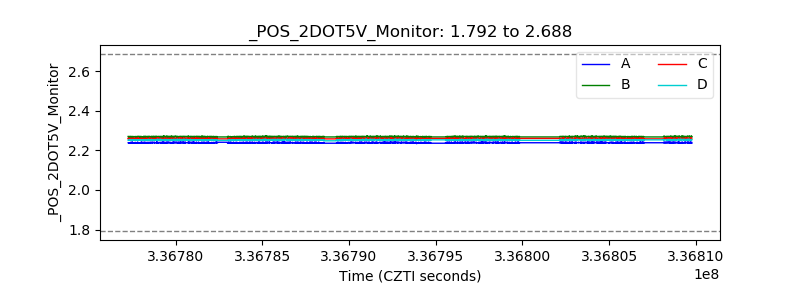

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

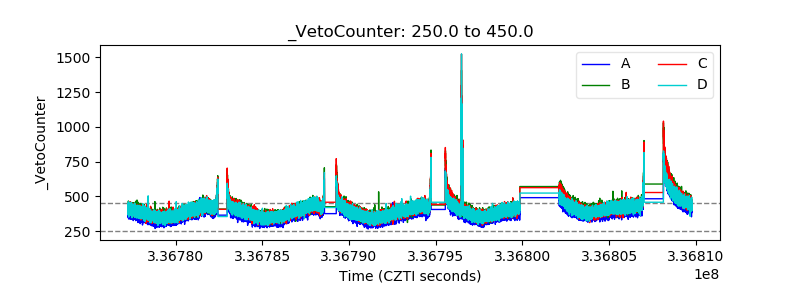

| Veto Counter |  |
