| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_145T01_9000003854_26767cztM0_level2.fits | modeM0/AS1A09_145T01_9000003854_26767cztM0_level2_quad_clean.evt |
| Size (bytes) | 643,982,400 | 129,352,320 |
| Size | 614.1 MB | 123.4 MB |
| Events in quadrant A | 4,002,389 | 964,723 |
| Events in quadrant B | 4,558,456 | 937,253 |
| Events in quadrant C | 3,693,815 | 922,286 |
| Events in quadrant D | 11,025,408 | 591,945 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16045 | 1 |
| B | 0 | 17682 | 1 |
| C | 0 | 15026 | 1 |
| D | 0 | 37717 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7187 | 143 | 1.989704% |
| B | 7188 | 465 | 6.469115% |
| C | 7188 | 145 | 2.017251% |
| D | 7188 | 2707 | 37.659989% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7797 | 7188 | 30 | 30 | 0.38% | 0.42% |  |
| B | 7798 | 7189 | 311 | 311 | 3.99% | 4.33% |  |
| C | 7798 | 7189 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7798 | 7189 | 2060 | 2060 | 26.42% | 28.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 380286 | 2019.6 | 937 | 919 | 187.8 |
| A | 13 | 254 | 11697 | 57.38 | 937 | 919 | 187.8 |
| A | 3 | 137 | 8509 | 40.4 | 937 | 919 | 187.8 |
| B | 0 | 189 | 993010 | 5704.86 | 902 | 881 | 173.9 |
| B | 12 | 111 | 20632 | 113.57 | 902 | 881 | 173.9 |
| B | 3 | 112 | 19430 | 106.66 | 902 | 881 | 173.9 |
| C | 14 | 238 | 143228 | 679.4 | 892 | 899 | 209.5 |
| C | 2 | 16 | 57995 | 272.55 | 892 | 899 | 209.5 |
| C | 15 | 208 | 10933 | 47.9 | 892 | 899 | 209.5 |
| D | 7 | 80 | 6666447 | 36269.83 | 764 | 747 | 183.8 |
| D | 1 | 52 | 865979 | 4707.96 | 764 | 747 | 183.8 |
| D | 15 | 36 | 178515 | 967.28 | 764 | 747 | 183.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

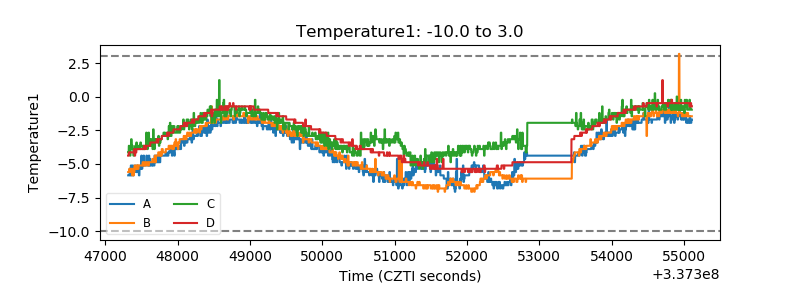

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

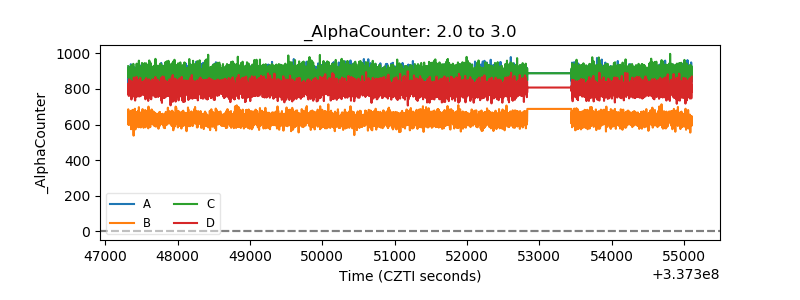

| Alpha Counter |  |
| _CPM_Rate |  |

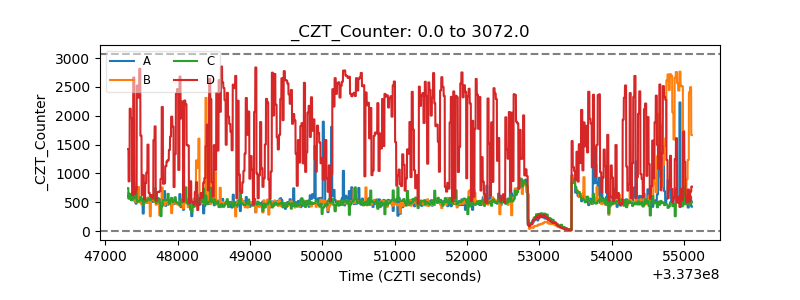

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
