| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_145T01_9000003900_27012cztM0_level2.evt | modeM0/AS1A09_145T01_9000003900_27012cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,877,120 | 114,301,440 |
| Size | 526.3 MB | 109.0 MB |
| Events in quadrant A | 4,934,869 | 735,967 |
| Events in quadrant B | 3,782,081 | 783,703 |
| Events in quadrant C | 3,524,859 | 747,613 |
| Events in quadrant D | 4,007,851 | 717,728 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19022 | 0 |
| B | 0 | 15380 | 0 |
| C | 0 | 14548 | 0 |
| D | 0 | 16464 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6845 | 363 | 5.303141% |
| B | 6845 | 130 | 1.899196% |
| C | 6845 | 86 | 1.256392% |
| D | 6845 | 140 | 2.045289% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7939 | 6845 | 326 | 326 | 4.11% | 4.76% |  |
| B | 7940 | 6845 | 57 | 57 | 0.72% | 0.83% |  |
| C | 7940 | 6846 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7940 | 6846 | 107 | 107 | 1.35% | 1.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 1116362 | 6345.07 | 873 | 857 | 175.8 |
| A | 14 | 235 | 424352 | 2408.87 | 873 | 857 | 175.8 |
| A | 8 | 192 | 24100 | 132.21 | 873 | 857 | 175.8 |
| B | 10 | 245 | 162389 | 946.92 | 894 | 873 | 170.6 |
| B | 0 | 189 | 103224 | 600.05 | 894 | 873 | 170.6 |
| B | 0 | 219 | 27680 | 157.16 | 894 | 873 | 170.6 |
| C | 14 | 238 | 140014 | 686.96 | 863 | 873 | 202.5 |
| C | 5 | 218 | 8902 | 39.64 | 863 | 873 | 202.5 |
| C | 13 | 61 | 5799 | 24.32 | 863 | 873 | 202.5 |
| D | 1 | 52 | 499381 | 2426.84 | 854 | 834 | 205.4 |
| D | 11 | 176 | 120574 | 582.87 | 854 | 834 | 205.4 |
| D | 12 | 1 | 113694 | 549.38 | 854 | 834 | 205.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

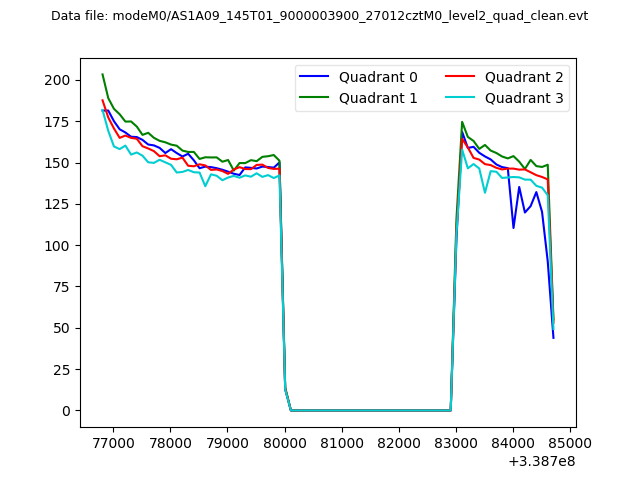

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

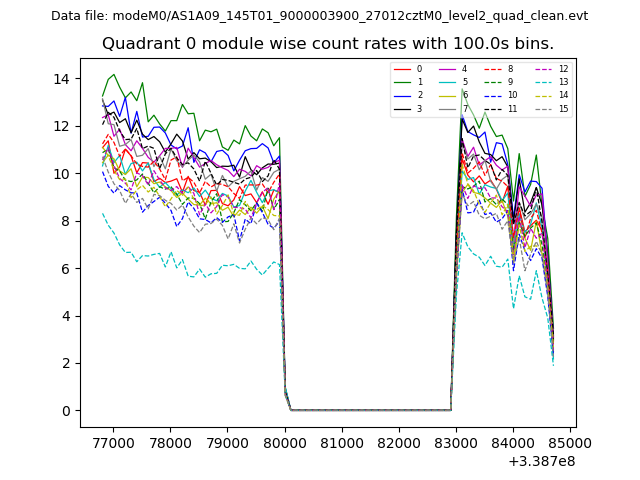

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

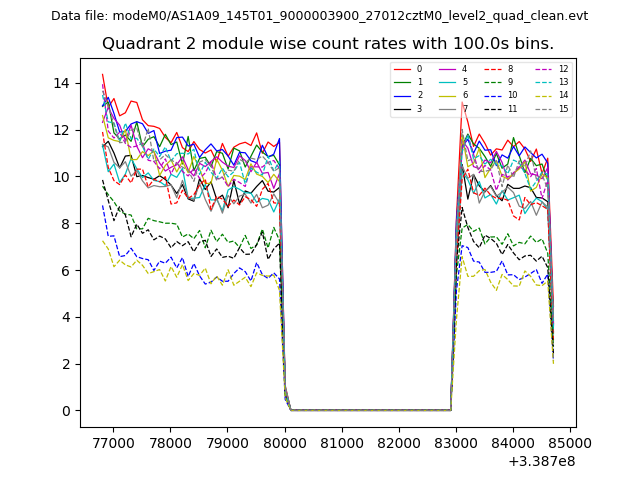

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

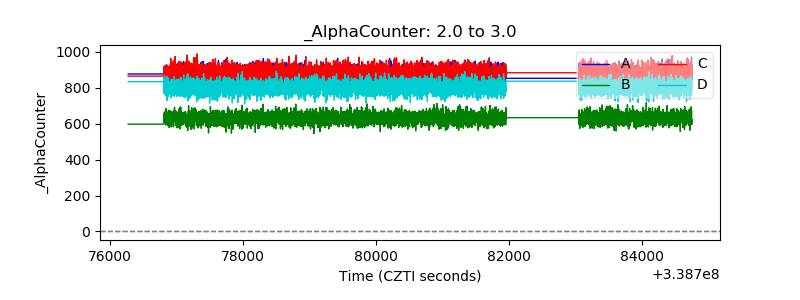

| Alpha Counter |  |
| _CPM_Rate |  |

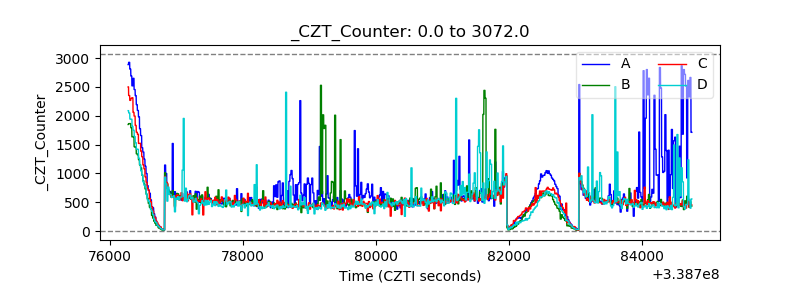

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

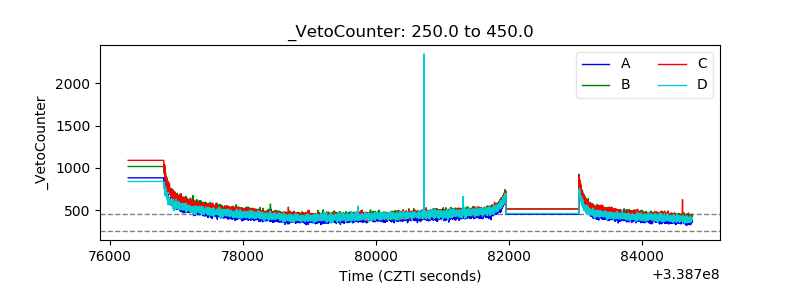

| Veto Counter |  |
