| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_243T01_9000003918_27235cztM0_level2.evt | modeM0/AS1T03_243T01_9000003918_27235cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,027,422,720 | 142,827,840 |
| Size | 979.8 MB | 136.2 MB |
| Events in quadrant A | 6,157,203 | 884,576 |
| Events in quadrant B | 8,681,947 | 886,128 |
| Events in quadrant C | 6,273,810 | 857,565 |
| Events in quadrant D | 9,129,009 | 803,644 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26575 | 0 |
| B | 0 | 33986 | 0 |
| C | 0 | 26799 | 0 |
| D | 0 | 35803 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12917 | 138 | 1.068360% |
| B | 12917 | 633 | 4.900519% |
| C | 12917 | 209 | 1.618023% |
| D | 12917 | 995 | 7.703027% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14557 | 12920 | 2 | 2 | 0.01% | 0.02% |  |
| B | 14557 | 12920 | 251 | 251 | 1.72% | 1.94% |  |
| C | 14557 | 12920 | 16 | 16 | 0.11% | 0.12% |  |
| D | 14557 | 12919 | 783 | 783 | 5.38% | 6.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 21918 | 64.35 | 1579 | 1543 | 316.6 |
| A | 15 | 174 | 20870 | 61.04 | 1579 | 1543 | 316.6 |
| A | 13 | 254 | 20269 | 59.14 | 1579 | 1543 | 316.6 |
| B | 3 | 64 | 2482904 | 8265.55 | 1556 | 1516 | 300.2 |
| B | 0 | 190 | 49375 | 159.42 | 1556 | 1516 | 300.2 |
| B | 12 | 111 | 37466 | 119.75 | 1556 | 1516 | 300.2 |
| C | 14 | 238 | 241077 | 673.12 | 1510 | 1518 | 355.9 |
| C | 15 | 208 | 125867 | 349.4 | 1510 | 1518 | 355.9 |
| C | 1 | 16 | 29162 | 77.68 | 1510 | 1518 | 355.9 |
| D | 1 | 52 | 3093700 | 8728.35 | 1445 | 1410 | 354.3 |
| D | 2 | 250 | 169860 | 475.47 | 1445 | 1410 | 354.3 |
| D | 5 | 222 | 105137 | 292.78 | 1445 | 1410 | 354.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

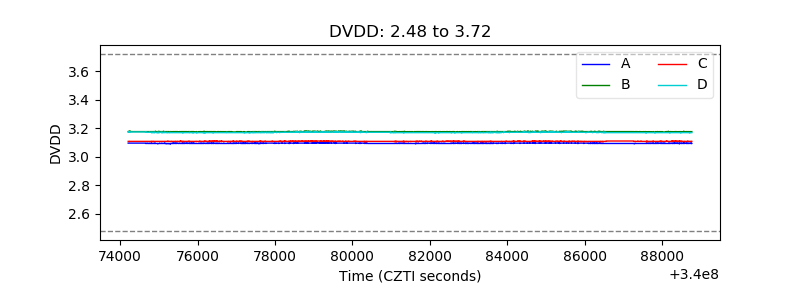

| D_VDD |  |

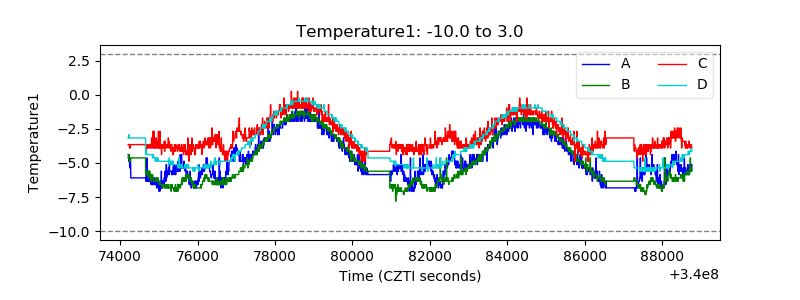

| Temperature 1 |  |

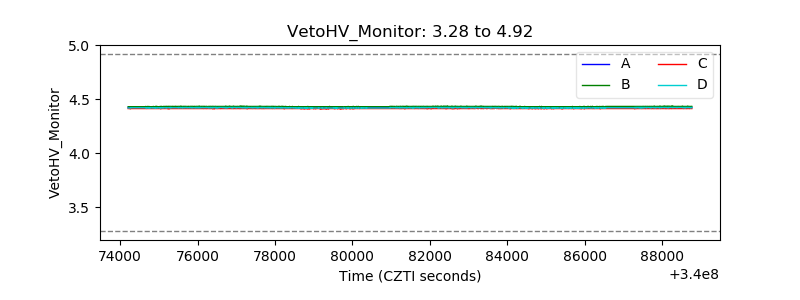

| Veto HV Monitor |  |

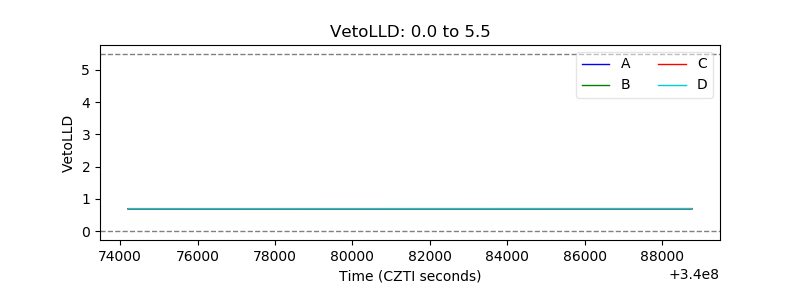

| Veto LLD |  |
| Alpha Counter |  |

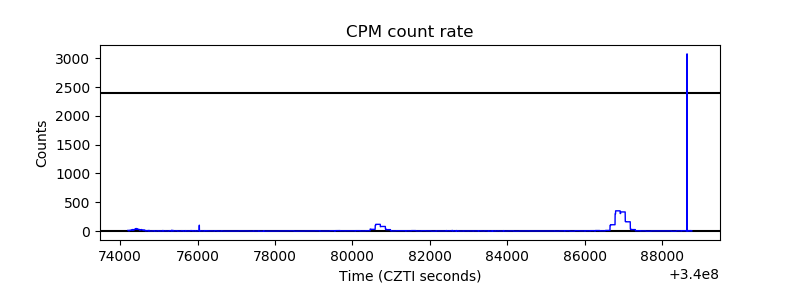

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

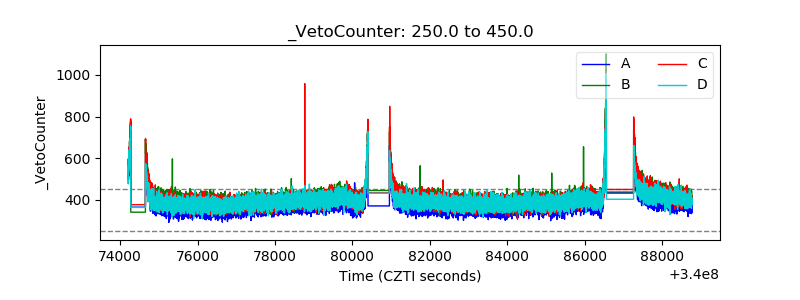

| Veto Counter |  |
