| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_243T01_9000003918_27262cztM0_level2.evt | modeM0/AS1T03_243T01_9000003918_27262cztM0_level2_quad_clean.evt |
| Size (bytes) | 138,421,440 | 22,556,160 |
| Size | 132.0 MB | 21.5 MB |
| Events in quadrant A | 1,015,784 | 135,403 |
| Events in quadrant B | 1,008,467 | 138,010 |
| Events in quadrant C | 989,198 | 131,248 |
| Events in quadrant D | 1,036,539 | 128,909 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4401 | 0 |
| B | 0 | 4338 | 0 |
| C | 0 | 4299 | 0 |
| D | 0 | 4563 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2053 | 38 | 1.850950% |
| B | 2053 | 49 | 2.386751% |
| C | 2052 | 56 | 2.729045% |
| D | 2052 | 25 | 1.218324% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2433 | 2054 | 1 | 1 | 0.04% | 0.05% |  |
| B | 2433 | 2054 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2432 | 2053 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2432 | 2053 | 5 | 5 | 0.21% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 26224 | 490.71 | 251 | 246 | 52.9 |
| A | 13 | 248 | 8465 | 155.25 | 251 | 246 | 52.9 |
| A | 8 | 192 | 7163 | 130.66 | 251 | 246 | 52.9 |
| B | 12 | 111 | 6253 | 116.02 | 254 | 247 | 51.8 |
| B | 11 | 111 | 5531 | 102.07 | 254 | 247 | 51.8 |
| B | 0 | 245 | 5084 | 93.44 | 254 | 247 | 51.8 |
| C | 14 | 238 | 37939 | 622.3 | 244 | 245 | 60.6 |
| C | 13 | 61 | 1579 | 22.02 | 244 | 245 | 60.6 |
| C | 4 | 224 | 924 | 11.21 | 244 | 245 | 60.6 |
| D | 2 | 250 | 50586 | 833.91 | 243 | 236 | 60.4 |
| D | 1 | 52 | 33263 | 547.0 | 243 | 236 | 60.4 |
| D | 7 | 96 | 11238 | 182.22 | 243 | 236 | 60.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

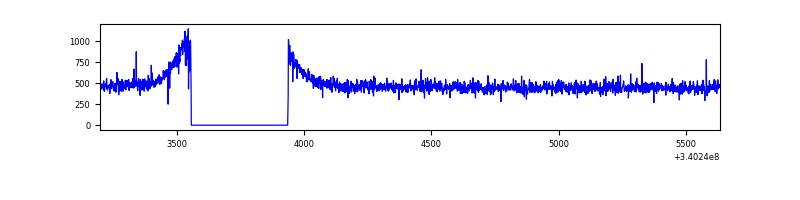

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

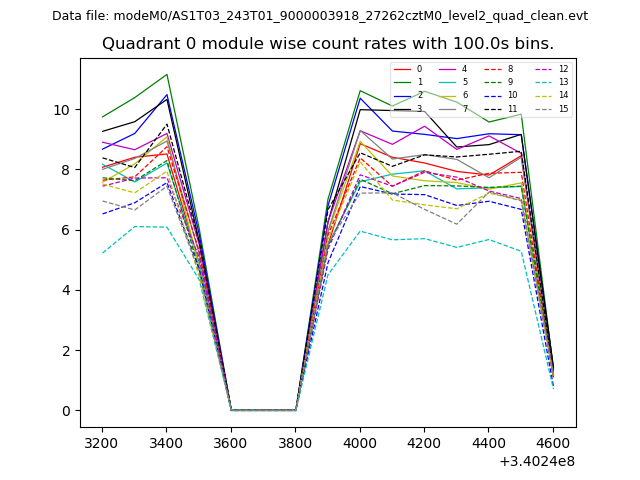

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

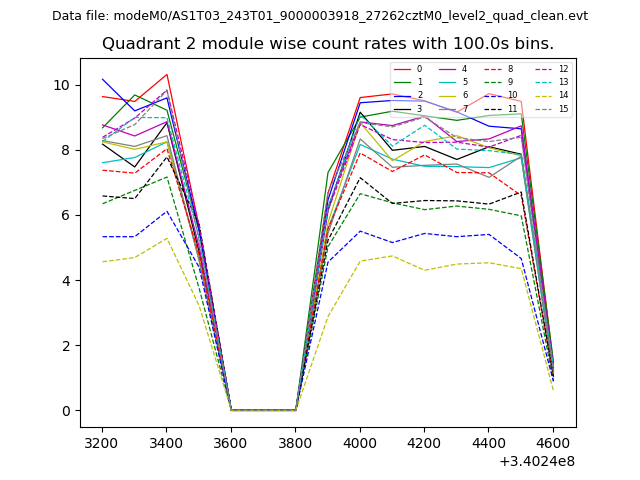

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

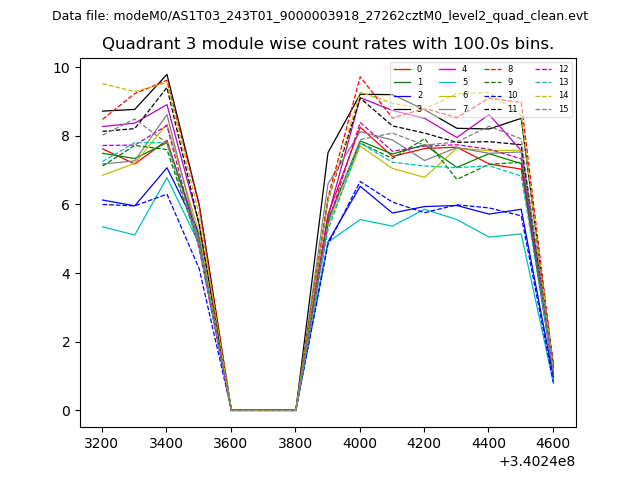

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

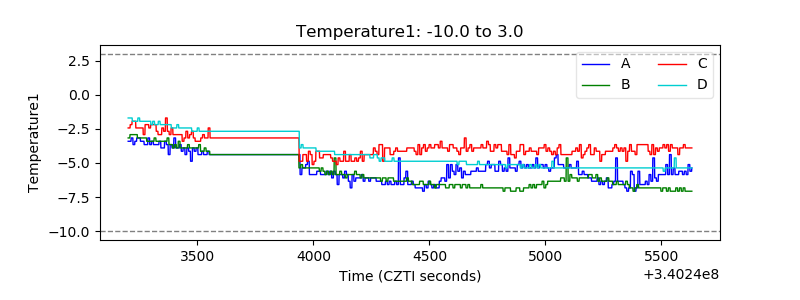

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

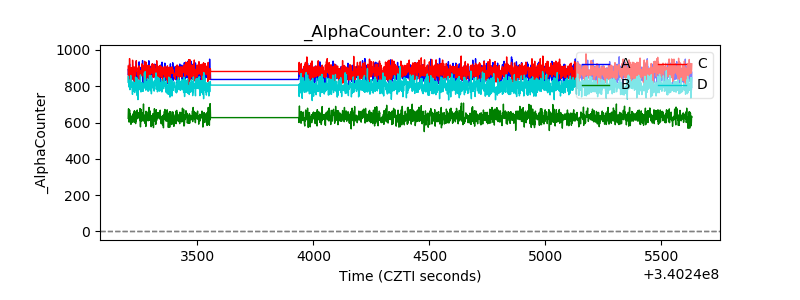

| Alpha Counter |  |
| _CPM_Rate |  |

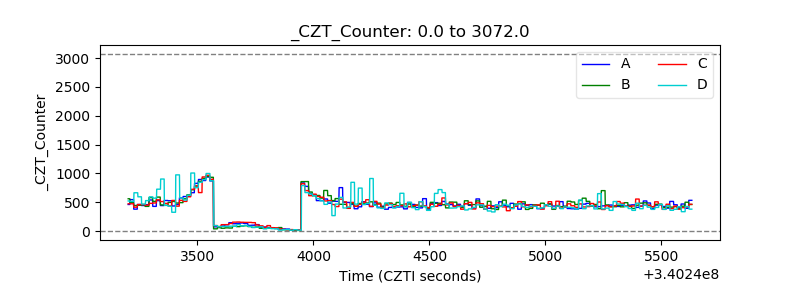

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

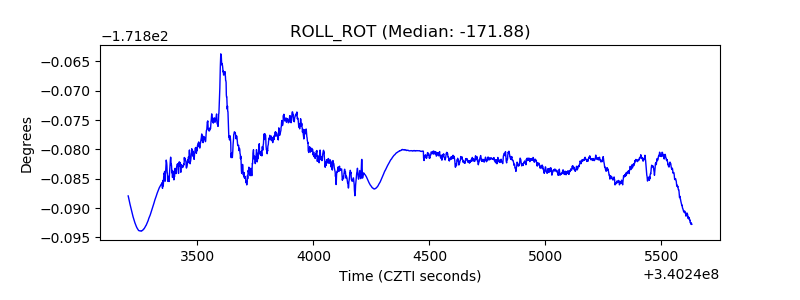

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
