| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_249T01_9000003934_27511cztM0_level2.evt | modeM0/AS1T03_249T01_9000003934_27511cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,341,760 | 80,058,240 |
| Size | 478.1 MB | 76.3 MB |
| Events in quadrant A | 3,177,330 | 507,131 |
| Events in quadrant B | 3,276,636 | 503,963 |
| Events in quadrant C | 3,149,934 | 483,053 |
| Events in quadrant D | 5,138,421 | 477,015 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13598 | 0 |
| B | 0 | 13860 | 0 |
| C | 0 | 13456 | 0 |
| D | 0 | 19840 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6503 | 39 | 0.599723% |
| B | 6504 | 46 | 0.707257% |
| C | 6503 | 77 | 1.184069% |
| D | 6503 | 397 | 6.104875% |

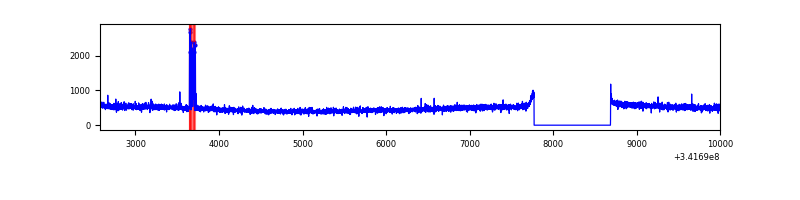

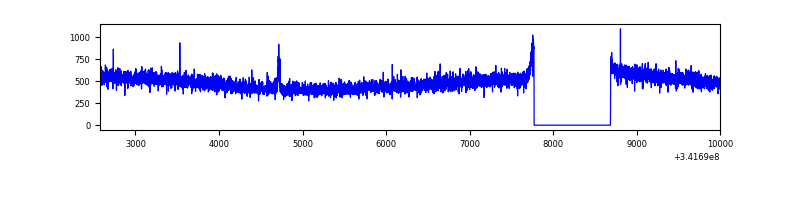

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7418 | 6503 | 8 | 8 | 0.11% | 0.12% |  |
| B | 7419 | 6504 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7418 | 6503 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7418 | 6503 | 265 | 265 | 3.57% | 4.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 59429 | 356.12 | 808 | 789 | 164.7 |
| A | 13 | 254 | 11035 | 62.22 | 808 | 789 | 164.7 |
| A | 3 | 137 | 8036 | 44.01 | 808 | 789 | 164.7 |
| B | 3 | 64 | 39249 | 249.31 | 798 | 778 | 154.3 |
| B | 0 | 230 | 34469 | 218.34 | 798 | 778 | 154.3 |
| B | 15 | 32 | 25180 | 158.14 | 798 | 778 | 154.3 |
| C | 14 | 238 | 123074 | 669.25 | 774 | 778 | 182.7 |
| C | 15 | 208 | 10226 | 51.7 | 774 | 778 | 182.7 |
| C | 13 | 61 | 5347 | 25.0 | 774 | 778 | 182.7 |
| D | 1 | 52 | 987108 | 5345.47 | 764 | 742 | 184.5 |
| D | 7 | 80 | 899844 | 4872.55 | 764 | 742 | 184.5 |
| D | 11 | 176 | 194687 | 1051.06 | 764 | 742 | 184.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

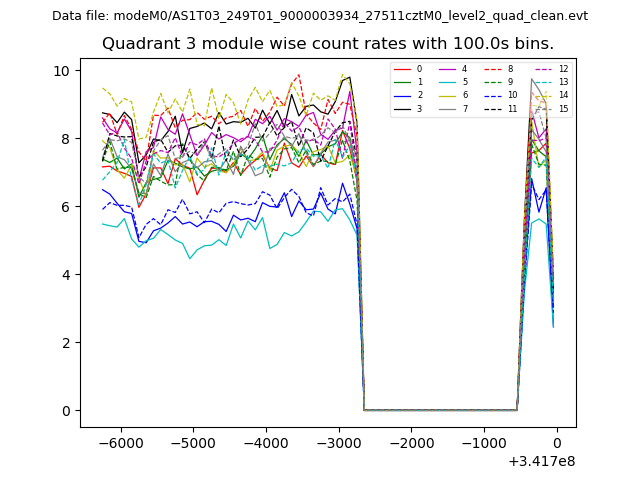

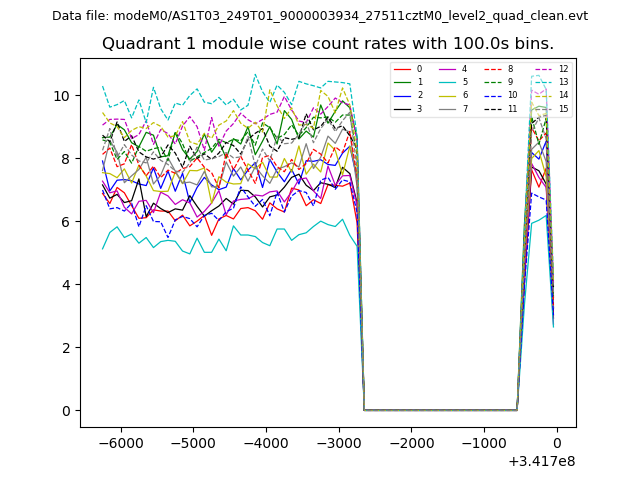

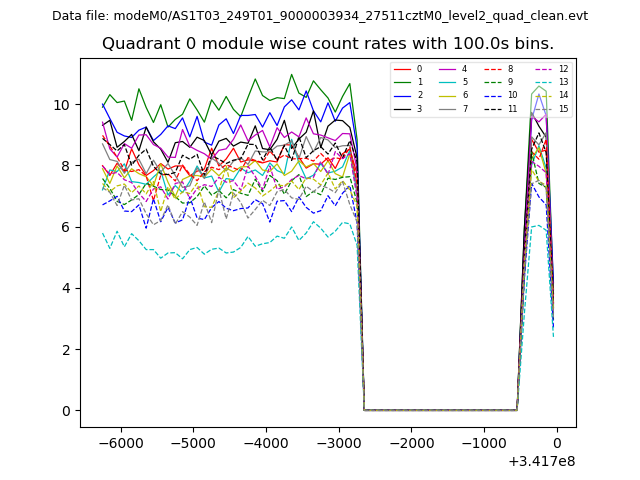

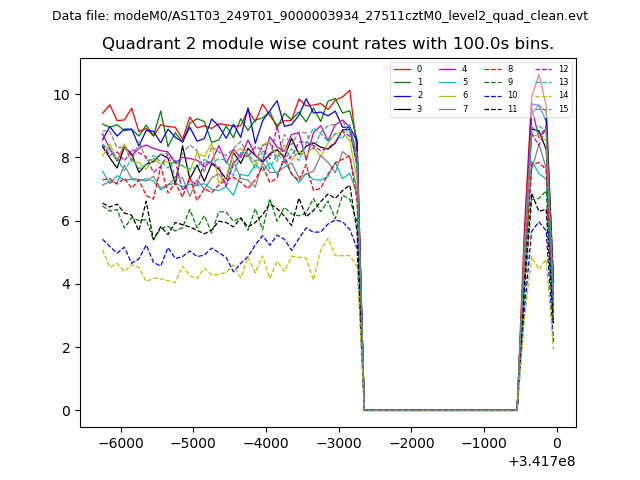

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

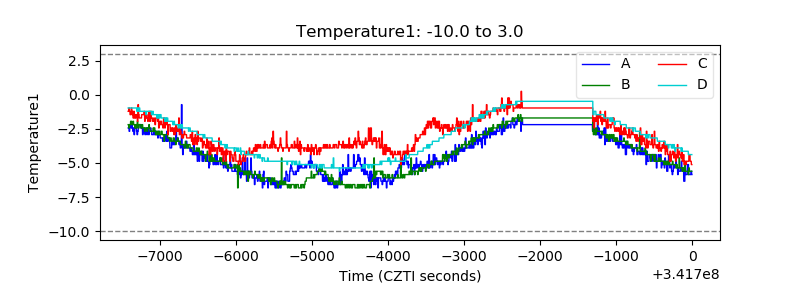

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

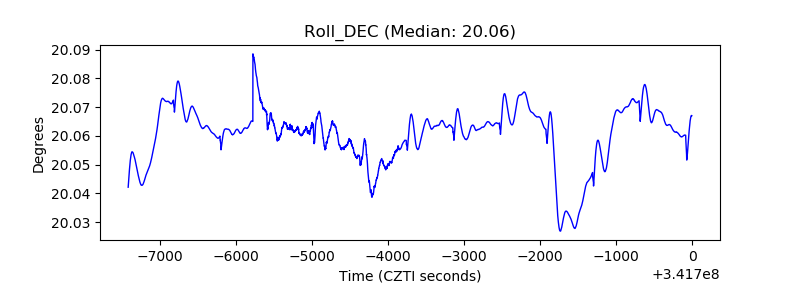

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
