| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_249T01_9000003934_27526cztM0_level2.evt | modeM0/AS1T03_249T01_9000003934_27526cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,718,080 | 83,249,280 |
| Size | 458.4 MB | 79.4 MB |
| Events in quadrant A | 3,017,533 | 536,840 |
| Events in quadrant B | 3,096,551 | 538,021 |
| Events in quadrant C | 3,054,952 | 514,021 |
| Events in quadrant D | 4,966,924 | 497,628 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13014 | 0 |
| B | 0 | 13278 | 0 |
| C | 0 | 13082 | 0 |
| D | 0 | 19132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6226 | 47 | 0.754899% |
| B | 6226 | 47 | 0.754899% |
| C | 6226 | 93 | 1.493736% |
| D | 6227 | 553 | 8.880681% |

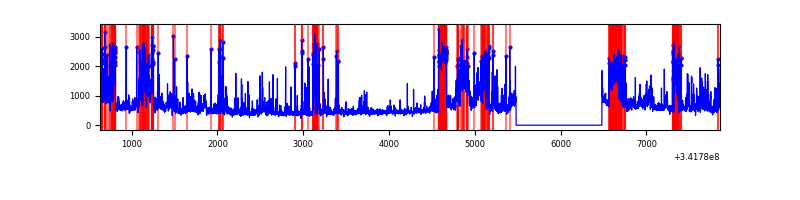

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7226 | 6226 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7226 | 6226 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7226 | 6226 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7227 | 6227 | 377 | 377 | 5.22% | 6.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 33237 | 206.86 | 773 | 757 | 157.0 |
| A | 13 | 254 | 10027 | 59.04 | 773 | 757 | 157.0 |
| A | 3 | 137 | 7588 | 43.51 | 773 | 757 | 157.0 |
| B | 0 | 244 | 34597 | 228.2 | 768 | 748 | 148.3 |
| B | 0 | 230 | 28639 | 188.03 | 768 | 748 | 148.3 |
| B | 12 | 111 | 18069 | 116.77 | 768 | 748 | 148.3 |
| C | 14 | 238 | 120689 | 682.02 | 742 | 747 | 175.9 |
| C | 7 | 221 | 21735 | 119.34 | 742 | 747 | 175.9 |
| C | 2 | 16 | 16472 | 89.42 | 742 | 747 | 175.9 |
| D | 1 | 52 | 1312832 | 7687.9 | 712 | 693 | 170.7 |
| D | 7 | 80 | 815485 | 4773.91 | 712 | 693 | 170.7 |
| D | 12 | 227 | 40489 | 233.17 | 712 | 693 | 170.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

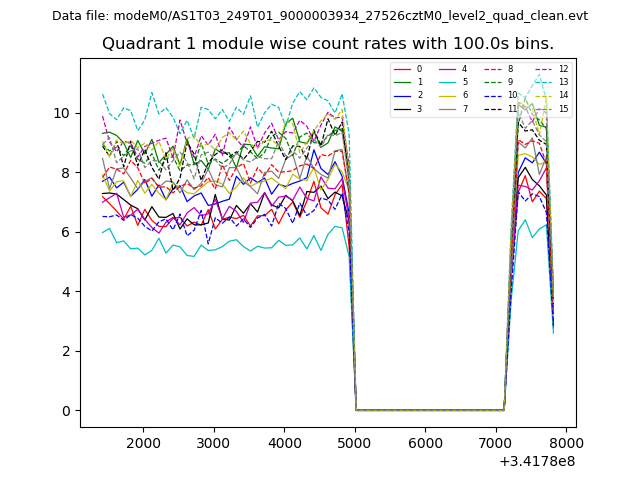

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

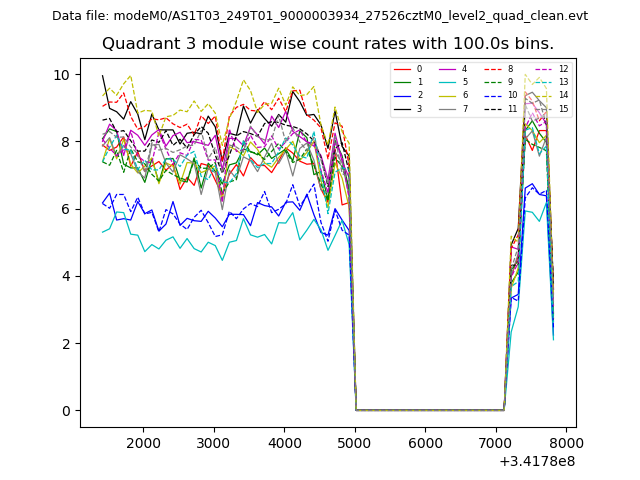

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

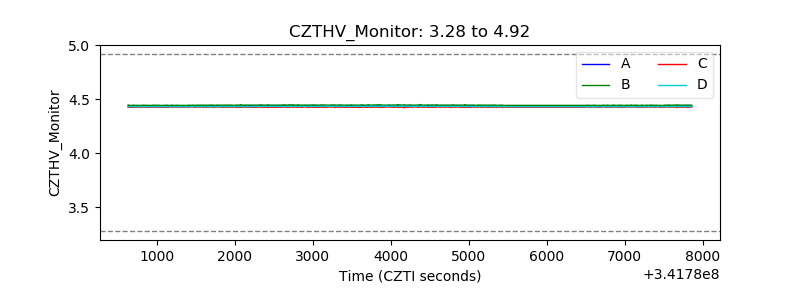

| CZT HV Monitor |  |
| D_VDD |  |

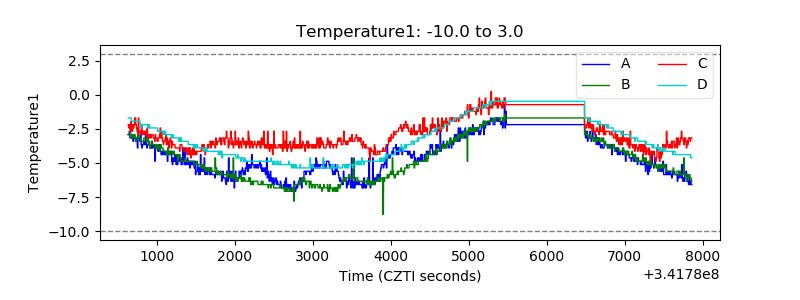

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

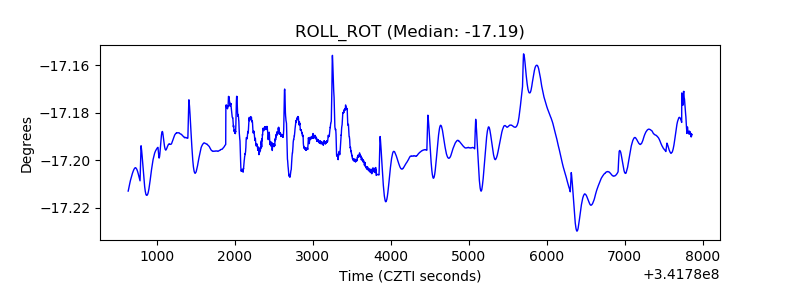

| _ROLL_ROT |  |

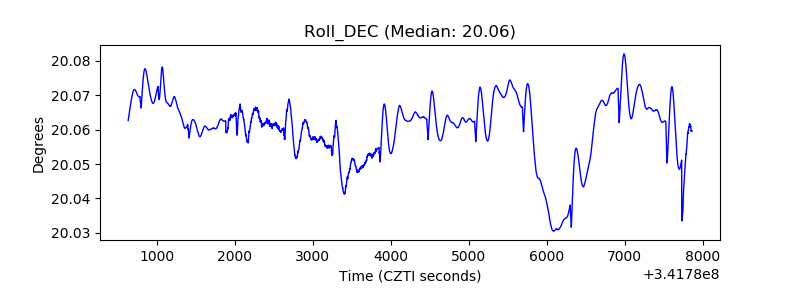

| _Roll_DEC |  |
| _Roll_RA |  |

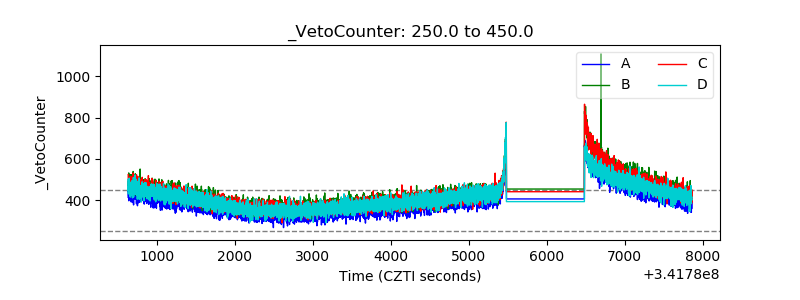

| Veto Counter |  |
