| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_257T01_9000003976_27599cztM0_level2.evt | modeM0/AS1T03_257T01_9000003976_27599cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,145,920 | 93,401,280 |
| Size | 477.9 MB | 89.1 MB |
| Events in quadrant A | 3,133,185 | 609,360 |
| Events in quadrant B | 3,597,678 | 619,688 |
| Events in quadrant C | 3,264,975 | 587,043 |
| Events in quadrant D | 4,737,627 | 556,364 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13617 | 0 |
| B | 0 | 14843 | 0 |
| C | 0 | 13919 | 0 |
| D | 0 | 18466 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6534 | 40 | 0.612182% |
| B | 6534 | 103 | 1.576370% |
| C | 6534 | 86 | 1.316192% |
| D | 6534 | 308 | 4.713805% |

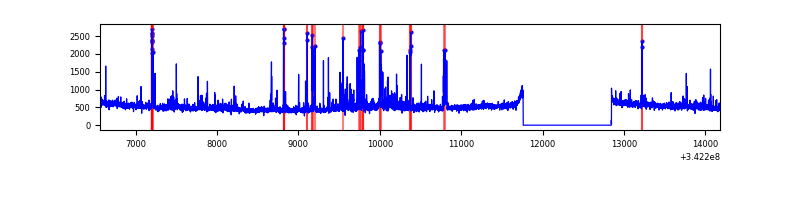

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7619 | 6535 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7619 | 6535 | 38 | 38 | 0.50% | 0.58% |  |
| C | 7619 | 6535 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7619 | 6535 | 246 | 246 | 3.23% | 3.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 14898 | 87.19 | 806 | 789 | 161.8 |
| A | 13 | 254 | 11330 | 65.14 | 806 | 789 | 161.8 |
| A | 3 | 137 | 7469 | 41.28 | 806 | 789 | 161.8 |
| B | 3 | 64 | 262340 | 1719.93 | 800 | 778 | 152.1 |
| B | 10 | 245 | 105374 | 687.78 | 800 | 778 | 152.1 |
| B | 0 | 230 | 34990 | 224.97 | 800 | 778 | 152.1 |
| C | 14 | 238 | 124642 | 679.77 | 774 | 777 | 182.2 |
| C | 10 | 22 | 61237 | 331.81 | 774 | 777 | 182.2 |
| C | 2 | 16 | 49672 | 268.34 | 774 | 777 | 182.2 |
| D | 1 | 52 | 1486630 | 8026.35 | 772 | 751 | 185.1 |
| D | 6 | 112 | 96606 | 517.78 | 772 | 751 | 185.1 |
| D | 7 | 80 | 91792 | 491.78 | 772 | 751 | 185.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

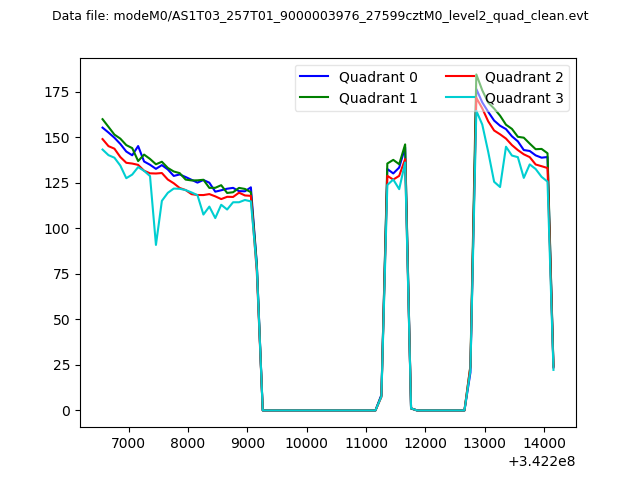

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

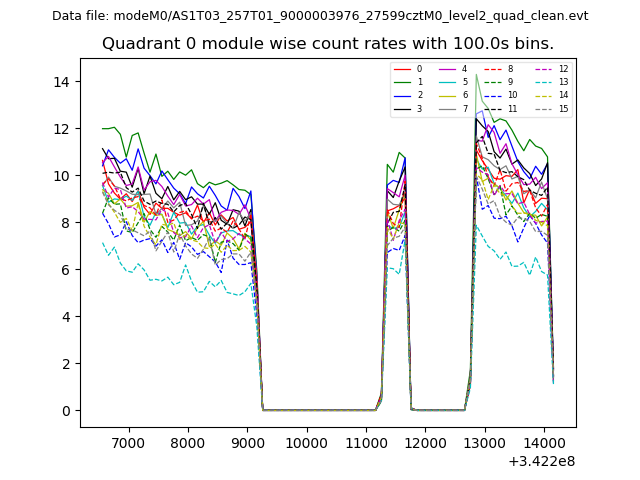

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

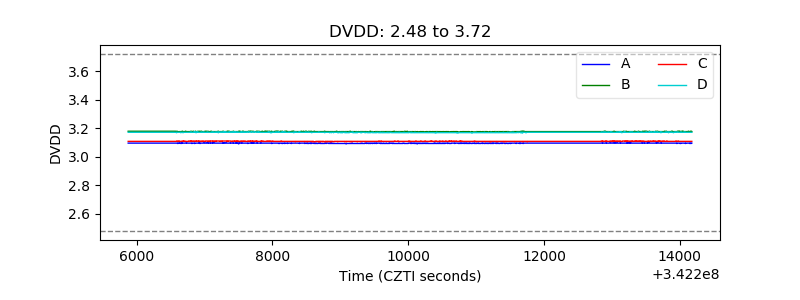

| D_VDD |  |

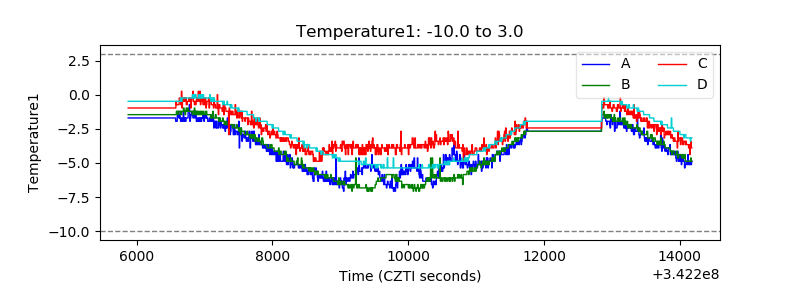

| Temperature 1 |  |

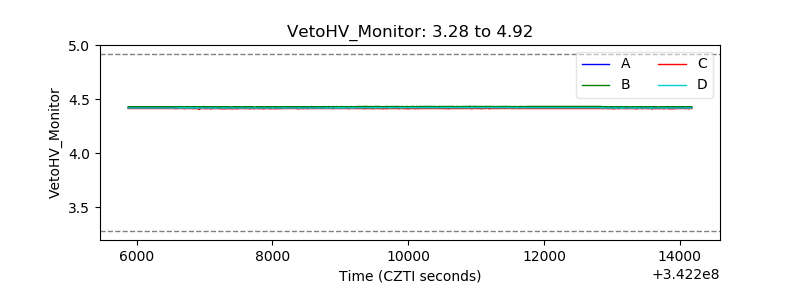

| Veto HV Monitor |  |
| Veto LLD |  |

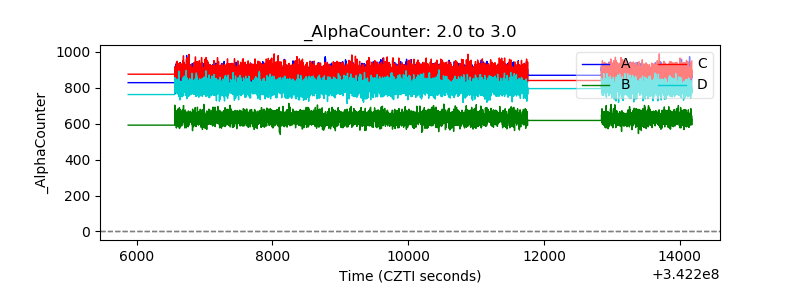

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

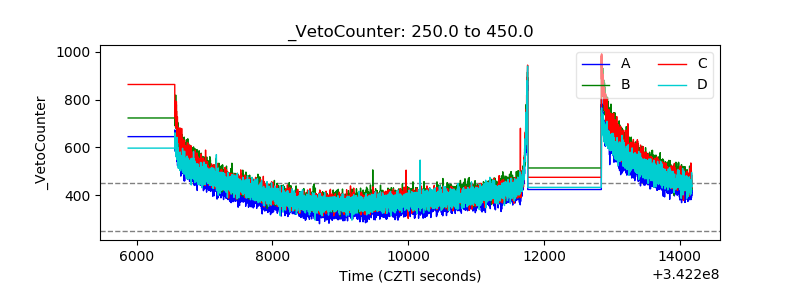

| Veto Counter |  |
