| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_257T01_9000003976_27659cztM0_level2.evt | modeM0/AS1T03_257T01_9000003976_27659cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,285,760 | 92,082,240 |
| Size | 522.9 MB | 87.8 MB |
| Events in quadrant A | 3,477,932 | 617,022 |
| Events in quadrant B | 3,231,310 | 632,955 |
| Events in quadrant C | 3,342,926 | 592,786 |
| Events in quadrant D | 6,127,632 | 507,799 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14466 | 0 |
| B | 0 | 13575 | 0 |
| C | 0 | 13851 | 0 |
| D | 0 | 22511 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6267 | 62 | 0.989309% |
| B | 6268 | 43 | 0.686024% |
| C | 6268 | 105 | 1.675175% |
| D | 6267 | 1013 | 16.164034% |

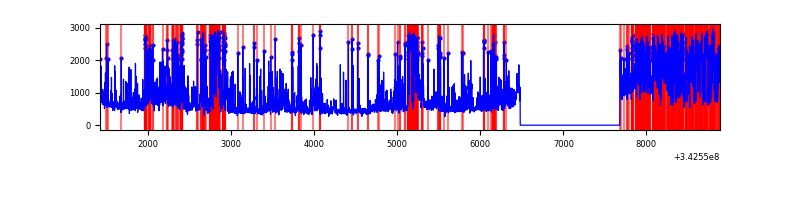

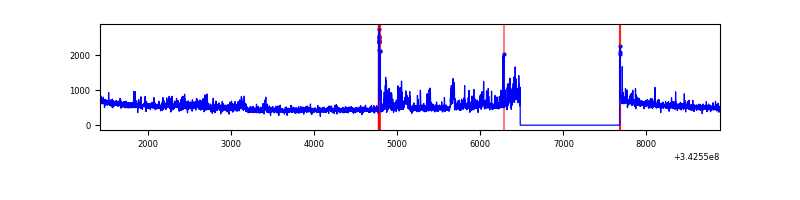

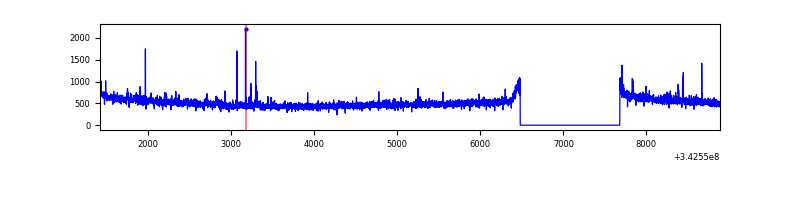

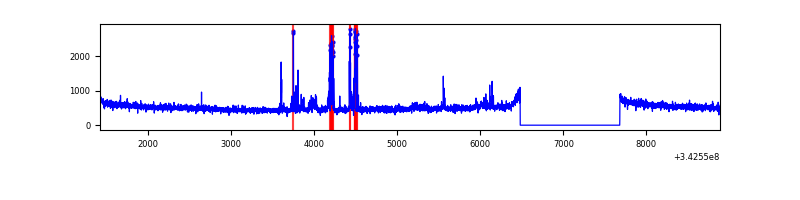

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7467 | 6267 | 16 | 16 | 0.21% | 0.26% |  |
| B | 7468 | 6268 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7468 | 6268 | 31 | 31 | 0.42% | 0.49% |  |
| D | 7467 | 6267 | 767 | 767 | 10.27% | 12.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 359574 | 2233.0 | 804 | 789 | 160.7 |
| A | 13 | 254 | 11326 | 65.58 | 804 | 789 | 160.7 |
| A | 13 | 248 | 9131 | 51.92 | 804 | 789 | 160.7 |
| B | 0 | 230 | 43048 | 282.8 | 800 | 781 | 149.5 |
| B | 3 | 209 | 18874 | 121.06 | 800 | 781 | 149.5 |
| B | 12 | 111 | 17531 | 112.07 | 800 | 781 | 149.5 |
| C | 2 | 16 | 210961 | 1168.4 | 769 | 774 | 179.9 |
| C | 14 | 238 | 123682 | 683.23 | 769 | 774 | 179.9 |
| C | 3 | 233 | 12963 | 67.76 | 769 | 774 | 179.9 |
| D | 1 | 52 | 3102888 | 18221.59 | 718 | 698 | 170.2 |
| D | 2 | 250 | 116377 | 679.47 | 718 | 698 | 170.2 |
| D | 7 | 80 | 113635 | 663.37 | 718 | 698 | 170.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

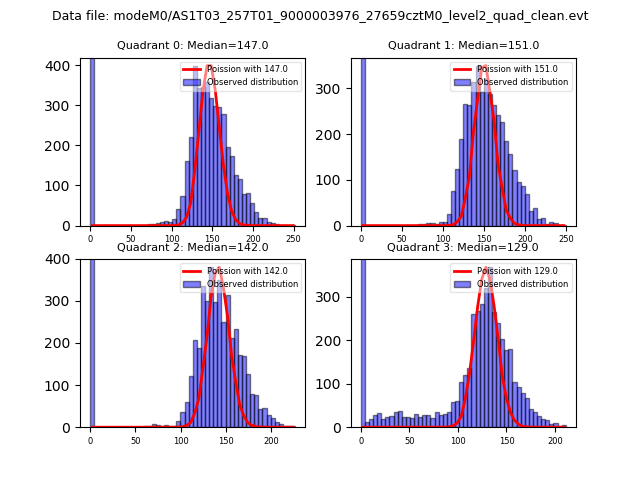

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

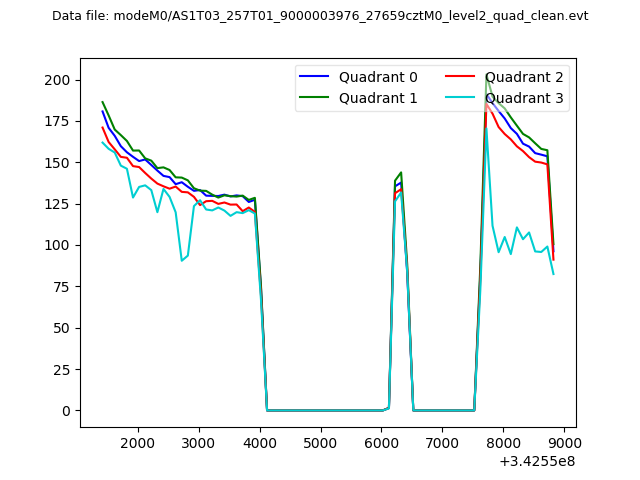

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

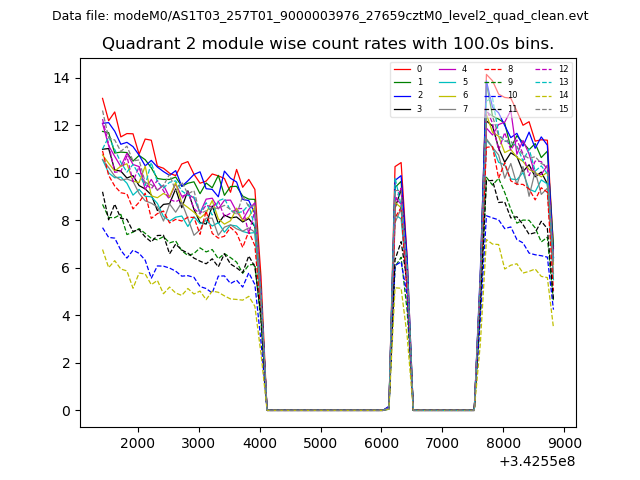

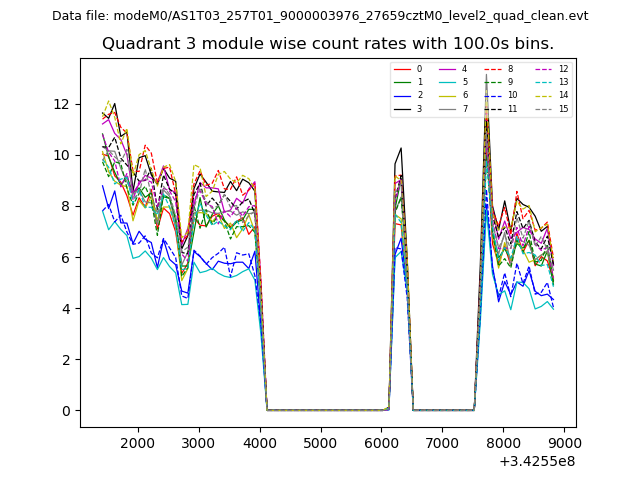

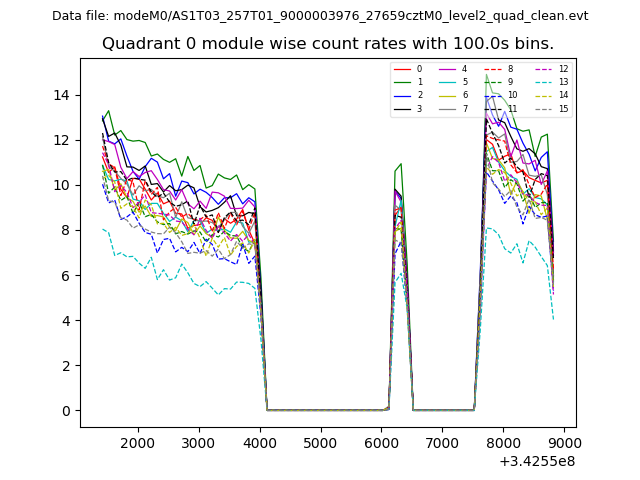

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

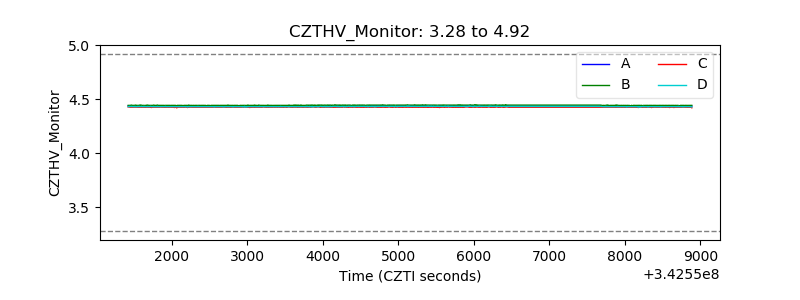

| CZT HV Monitor |  |
| D_VDD |  |

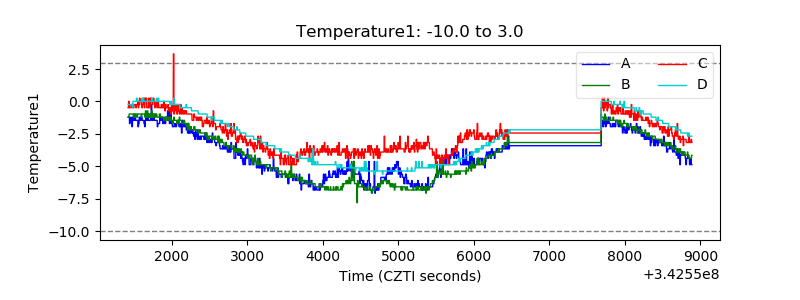

| Temperature 1 |  |

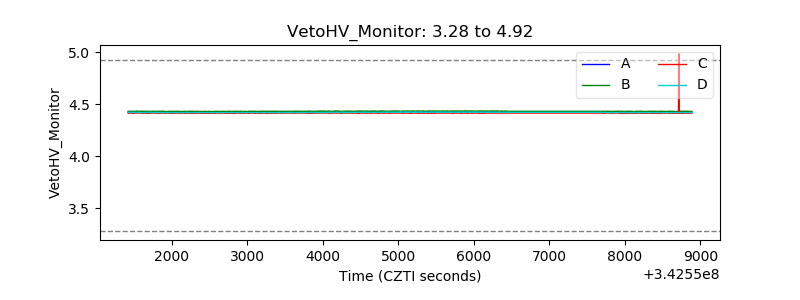

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

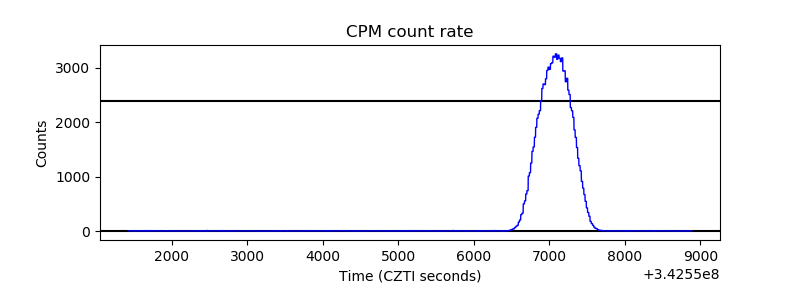

| _CPM_Rate |  |

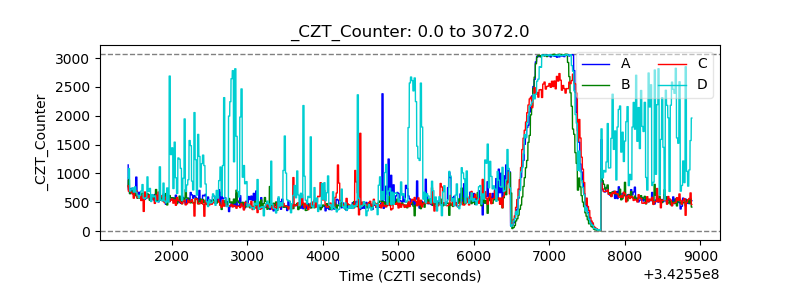

| CZT Counter |  |

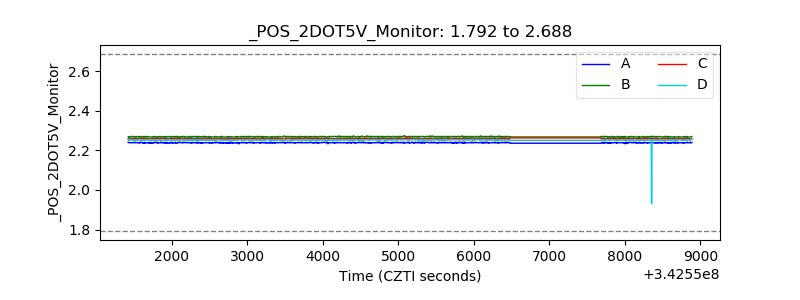

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

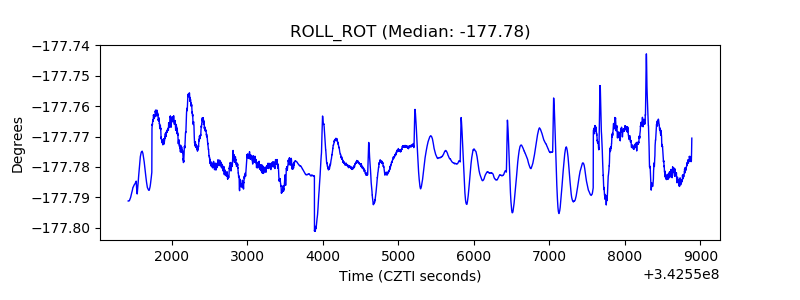

| _ROLL_ROT |  |

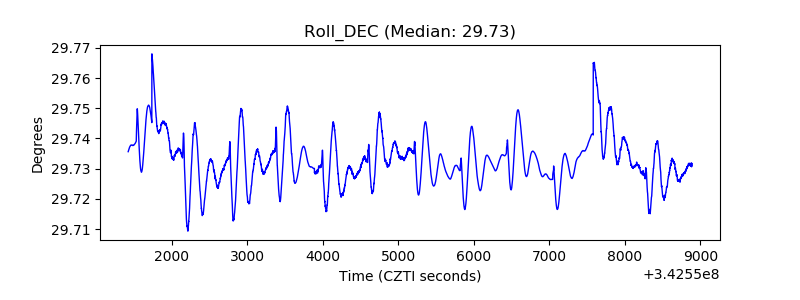

| _Roll_DEC |  |

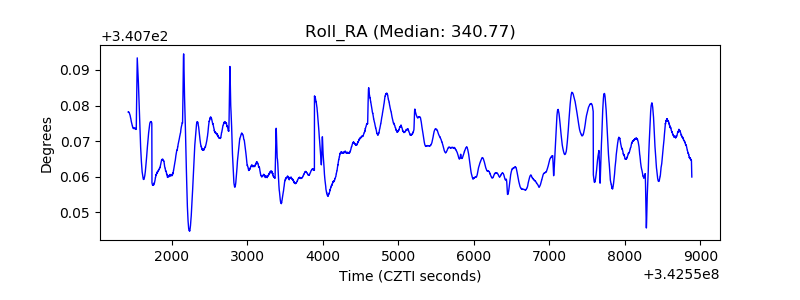

| _Roll_RA |  |

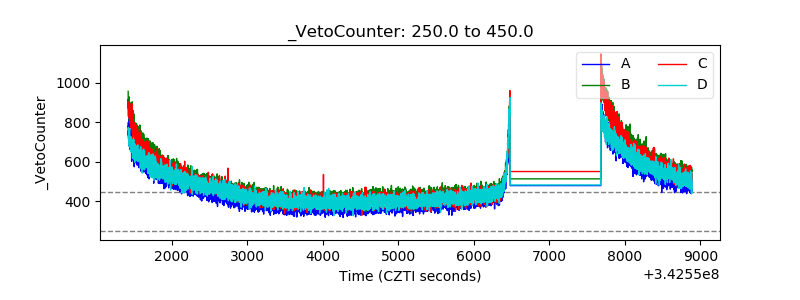

| Veto Counter |  |
