| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_257T01_9000003976_27605cztM0_level2.evt | modeM0/AS1T03_257T01_9000003976_27605cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,000,960 | 75,110,400 |
| Size | 466.3 MB | 71.6 MB |
| Events in quadrant A | 3,348,993 | 464,947 |
| Events in quadrant B | 3,623,448 | 478,561 |
| Events in quadrant C | 3,570,617 | 446,161 |
| Events in quadrant D | 3,819,372 | 425,327 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13791 | 0 |
| B | 0 | 14623 | 0 |
| C | 0 | 14562 | 0 |
| D | 0 | 15507 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6579 | 37 | 0.562396% |
| B | 6579 | 88 | 1.337589% |
| C | 6579 | 103 | 1.565587% |
| D | 6579 | 120 | 1.823985% |

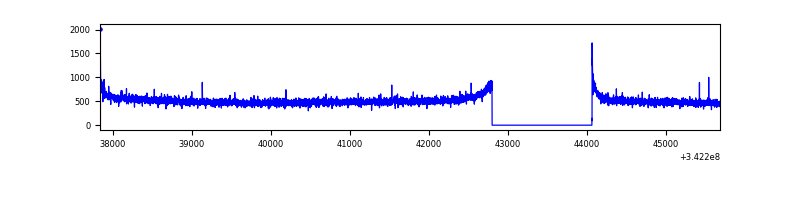

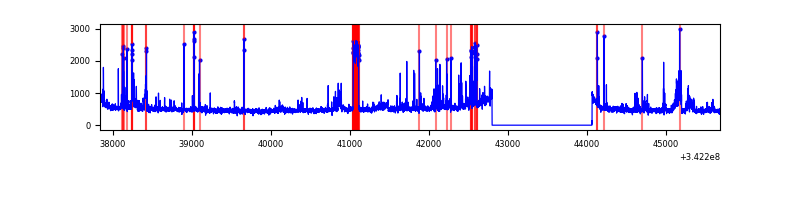

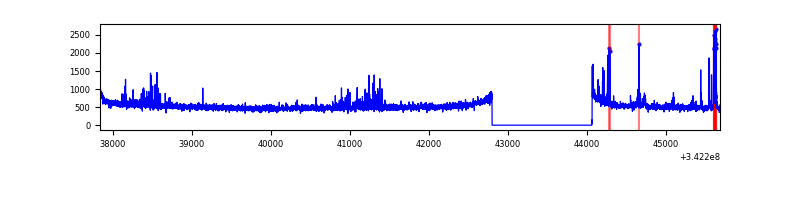

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7844 | 6580 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7844 | 6580 | 17 | 17 | 0.22% | 0.26% |  |
| C | 7844 | 6580 | 13 | 13 | 0.17% | 0.20% |  |
| D | 7844 | 6580 | 103 | 103 | 1.31% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 10694 | 57.18 | 865 | 850 | 172.2 |
| A | 13 | 254 | 10639 | 56.86 | 865 | 850 | 172.2 |
| A | 3 | 137 | 7951 | 41.25 | 865 | 850 | 172.2 |
| B | 10 | 245 | 101713 | 618.23 | 870 | 849 | 163.1 |
| B | 0 | 230 | 38820 | 232.74 | 870 | 849 | 163.1 |
| B | 3 | 64 | 29288 | 174.31 | 870 | 849 | 163.1 |
| C | 14 | 238 | 135718 | 705.46 | 828 | 835 | 191.2 |
| C | 2 | 16 | 133247 | 692.53 | 828 | 835 | 191.2 |
| C | 8 | 208 | 69512 | 359.19 | 828 | 835 | 191.2 |
| D | 1 | 52 | 329721 | 1690.39 | 820 | 801 | 194.6 |
| D | 6 | 112 | 245946 | 1259.86 | 820 | 801 | 194.6 |
| D | 2 | 250 | 60280 | 305.68 | 820 | 801 | 194.6 |

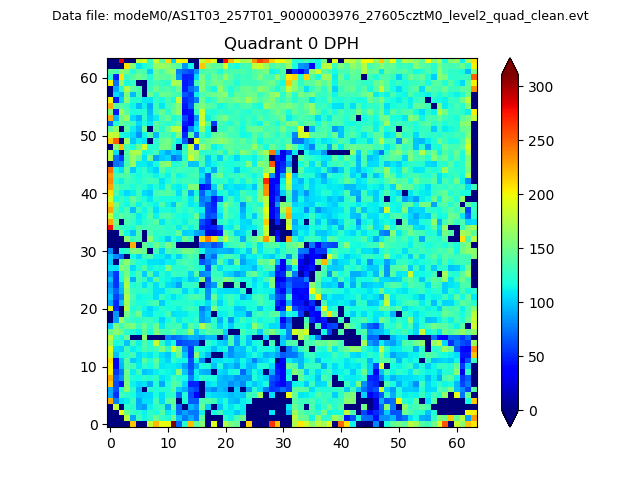

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

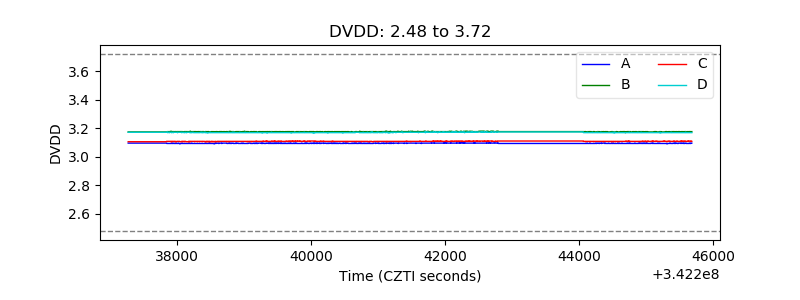

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

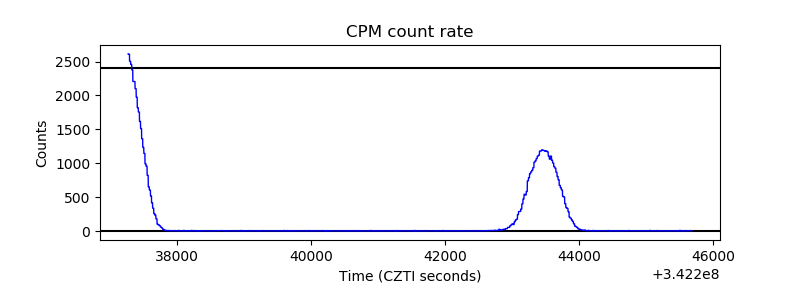

| _CPM_Rate |  |

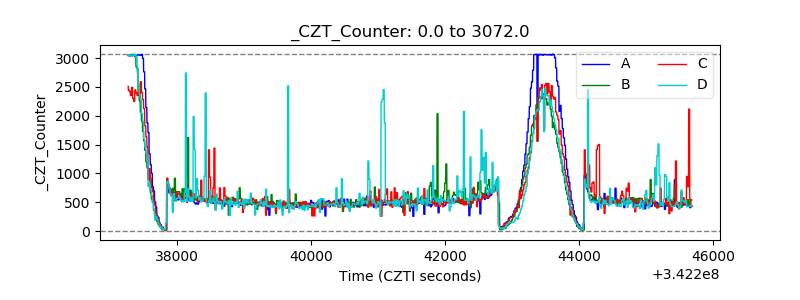

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

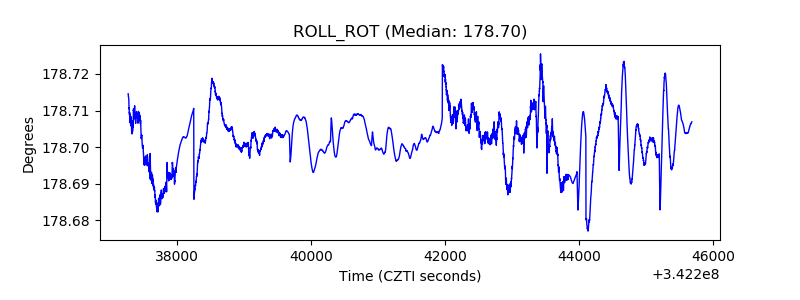

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
