| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_263T01_9000003990_27724cztM0_level2.evt | modeM0/AS1T03_263T01_9000003990_27724cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,079,360 | 112,115,520 |
| Size | 499.8 MB | 106.9 MB |
| Events in quadrant A | 3,953,731 | 745,754 |
| Events in quadrant B | 3,743,066 | 760,433 |
| Events in quadrant C | 3,648,892 | 727,924 |
| Events in quadrant D | 4,071,550 | 694,327 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15688 | 0 |
| B | 0 | 15134 | 0 |
| C | 0 | 14825 | 0 |
| D | 0 | 16359 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6696 | 263 | 3.927718% |
| B | 6697 | 254 | 3.792743% |
| C | 6697 | 206 | 3.076004% |
| D | 6697 | 202 | 3.016276% |

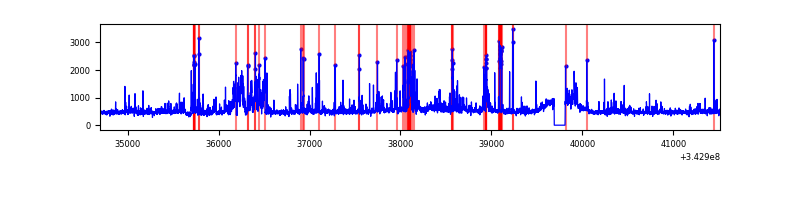

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6816 | 6696 | 58 | 58 | 0.85% | 0.87% |  |
| B | 6817 | 6697 | 22 | 22 | 0.32% | 0.33% |  |
| C | 6817 | 6697 | 1 | 1 | 0.01% | 0.01% |  |
| D | 6817 | 6697 | 81 | 81 | 1.19% | 1.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 368340 | 1952.07 | 871 | 857 | 188.3 |
| A | 0 | 13 | 230052 | 1217.49 | 871 | 857 | 188.3 |
| A | 13 | 254 | 9895 | 48.01 | 871 | 857 | 188.3 |
| B | 3 | 64 | 230904 | 1308.76 | 867 | 850 | 175.8 |
| B | 5 | 255 | 67111 | 376.95 | 867 | 850 | 175.8 |
| B | 0 | 230 | 30509 | 168.73 | 867 | 850 | 175.8 |
| C | 3 | 233 | 223911 | 1080.94 | 838 | 843 | 206.4 |
| C | 14 | 238 | 137218 | 660.84 | 838 | 843 | 206.4 |
| C | 10 | 22 | 20256 | 94.07 | 838 | 843 | 206.4 |
| D | 1 | 52 | 515880 | 2443.69 | 839 | 818 | 210.8 |
| D | 13 | 168 | 236538 | 1118.36 | 839 | 818 | 210.8 |
| D | 11 | 176 | 70630 | 331.22 | 839 | 818 | 210.8 |

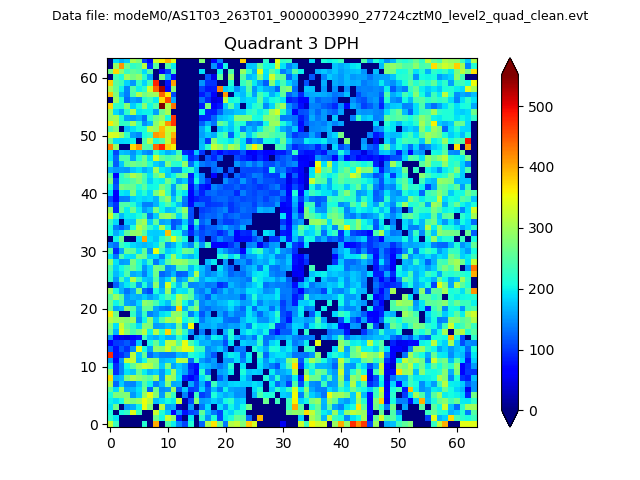

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

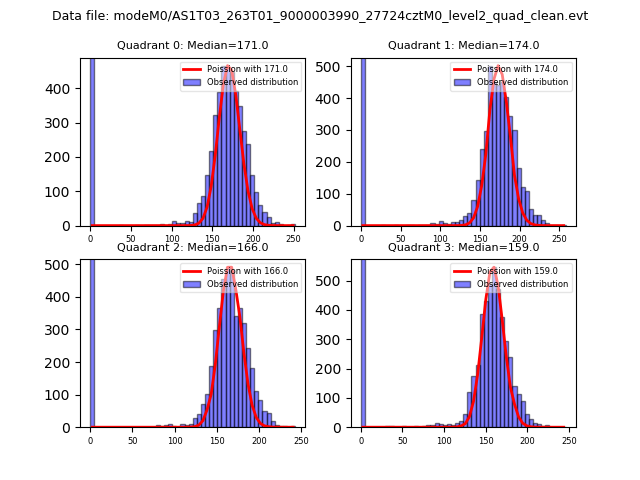

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

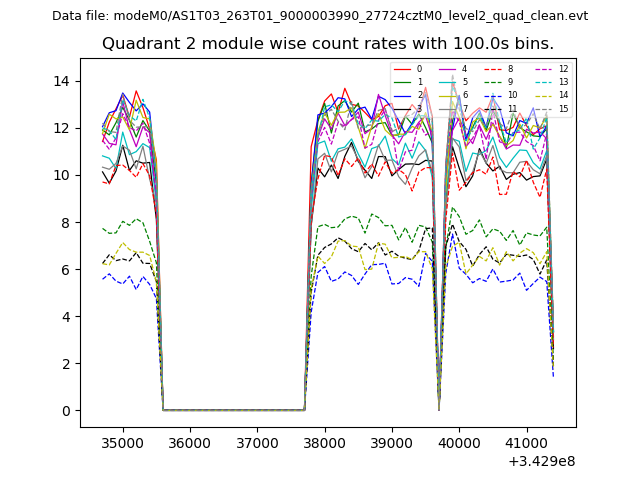

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

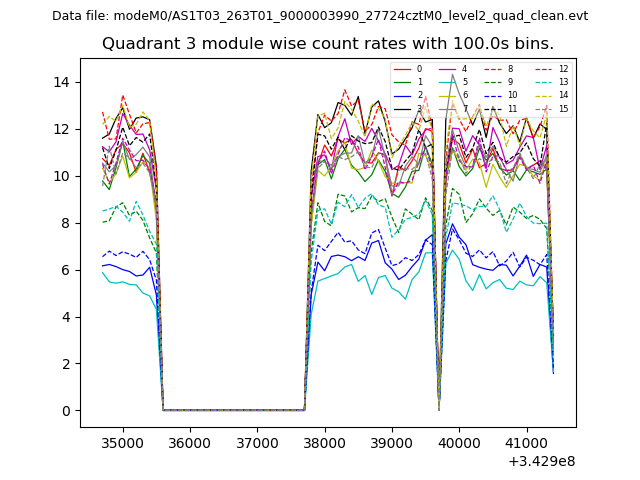

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
