| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_009T02_9000004014_27774cztM0_level2.evt | modeM0/AS1A10_009T02_9000004014_27774cztM0_level2_quad_clean.evt |
| Size (bytes) | 129,792,960 | 23,365,440 |
| Size | 123.8 MB | 22.3 MB |
| Events in quadrant A | 802,035 | 156,013 |
| Events in quadrant B | 940,833 | 158,082 |
| Events in quadrant C | 996,258 | 147,549 |
| Events in quadrant D | 1,095,356 | 142,336 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3293 | 1 |
| B | 0 | 3799 | 1 |
| C | 0 | 3911 | 1 |
| D | 0 | 4181 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1381 | 10 | 0.724113% |
| B | 1381 | 21 | 1.520637% |
| C | 1381 | 72 | 5.213613% |
| D | 1381 | 78 | 5.648081% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

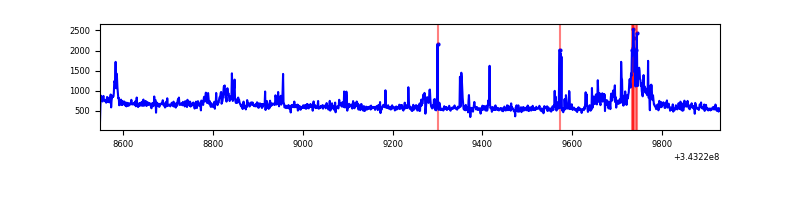

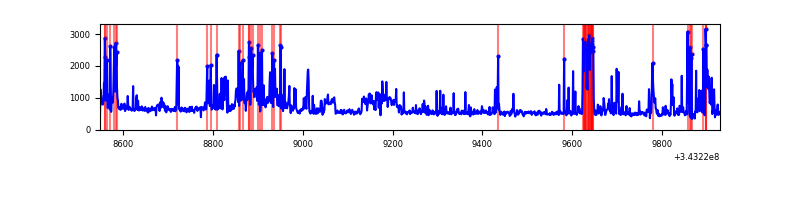

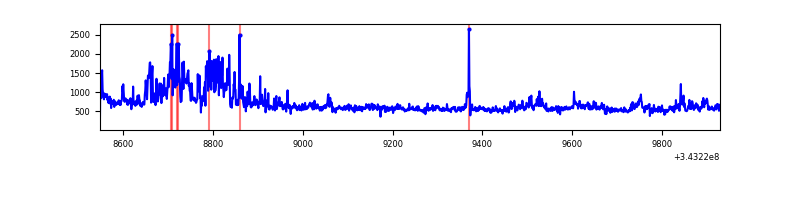

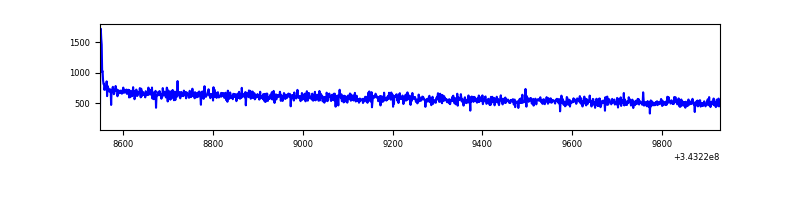

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1381 | 1381 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1381 | 1381 | 8 | 8 | 0.58% | 0.58% |  |
| C | 1381 | 1381 | 7 | 7 | 0.51% | 0.51% |  |
| D | 1381 | 1381 | 55 | 55 | 3.98% | 3.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 5035 | 113.25 | 206 | 202 | 42.7 |
| A | 13 | 254 | 2260 | 48.22 | 206 | 202 | 42.7 |
| A | 3 | 137 | 1874 | 39.18 | 206 | 202 | 42.7 |
| B | 3 | 64 | 97705 | 2440.04 | 202 | 197 | 40.0 |
| B | 0 | 190 | 17393 | 430.31 | 202 | 197 | 40.0 |
| B | 4 | 52 | 15703 | 388.02 | 202 | 197 | 40.0 |
| C | 10 | 22 | 150676 | 3247.5 | 190 | 191 | 46.3 |
| C | 3 | 233 | 72531 | 1561.11 | 190 | 191 | 46.3 |
| C | 14 | 238 | 29818 | 639.36 | 190 | 191 | 46.3 |
| D | 1 | 52 | 340085 | 7277.28 | 193 | 188 | 46.7 |
| D | 2 | 250 | 17671 | 374.32 | 193 | 188 | 46.7 |
| D | 2 | 234 | 4856 | 99.94 | 193 | 188 | 46.7 |

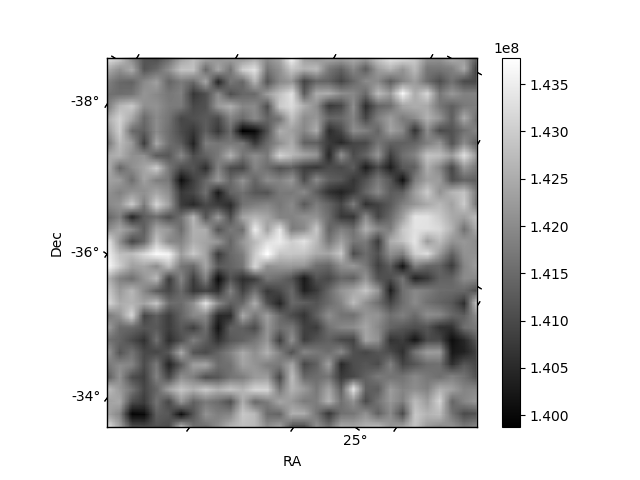

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

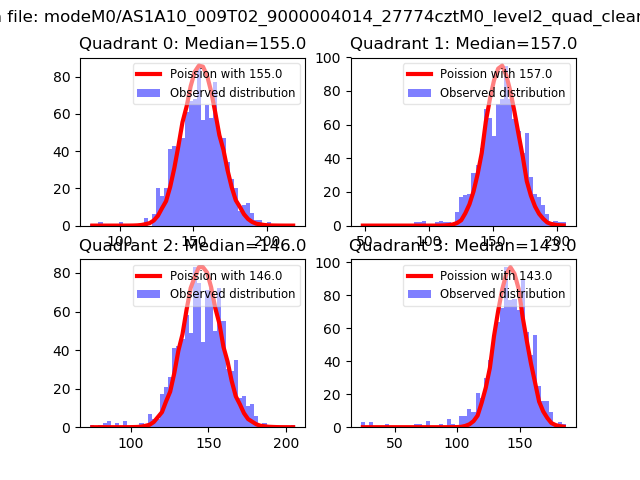

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

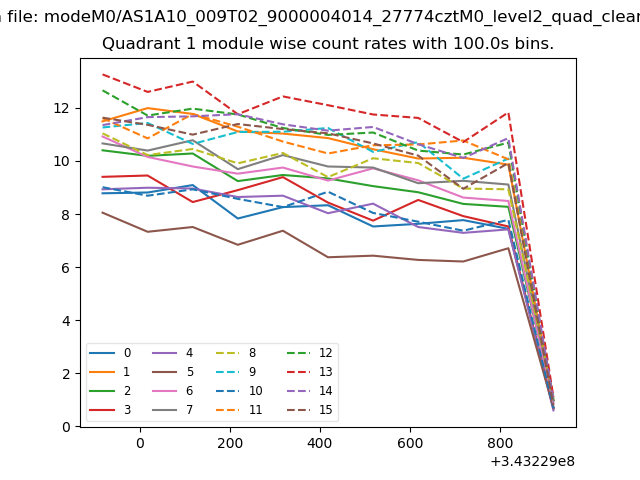

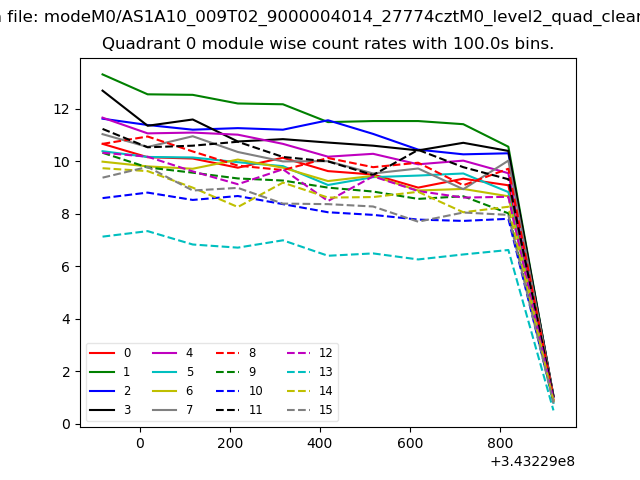

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

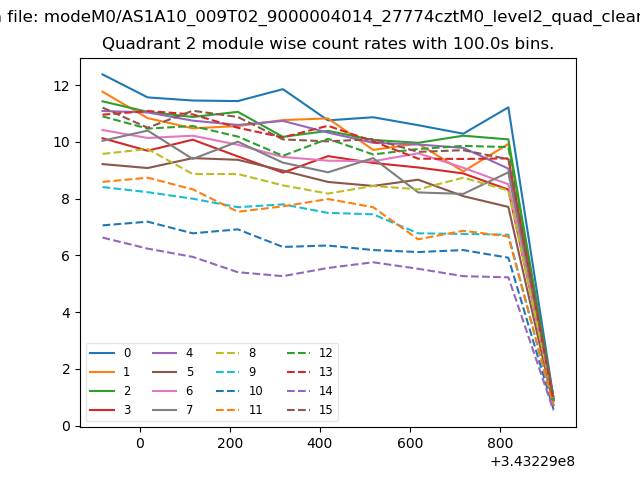

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

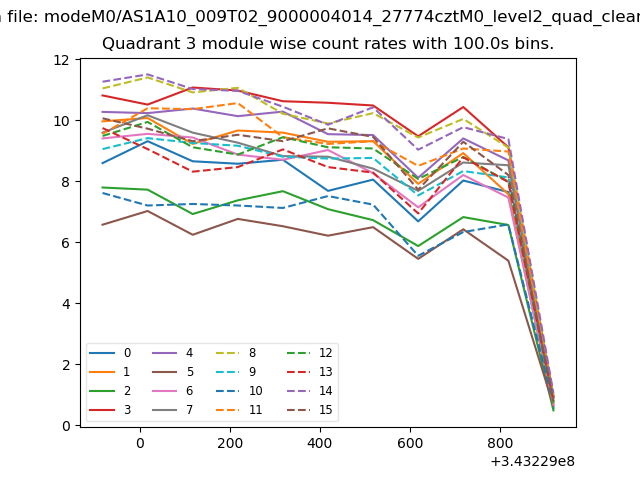

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

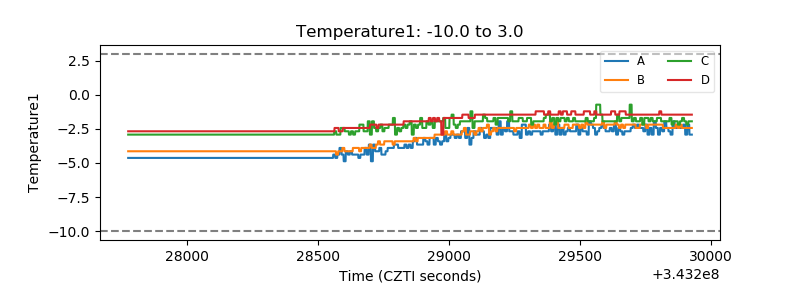

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

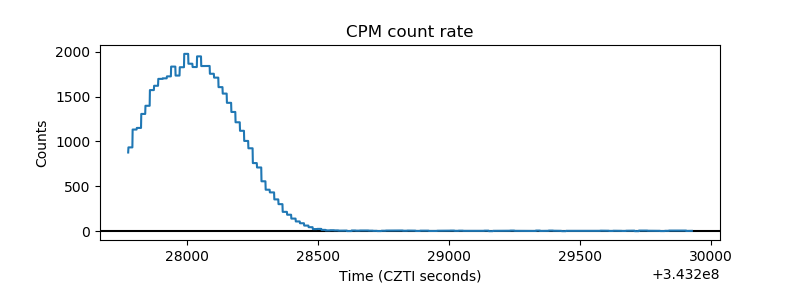

| _CPM_Rate |  |

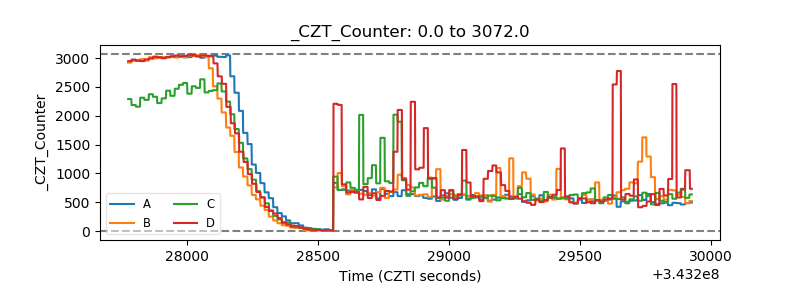

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

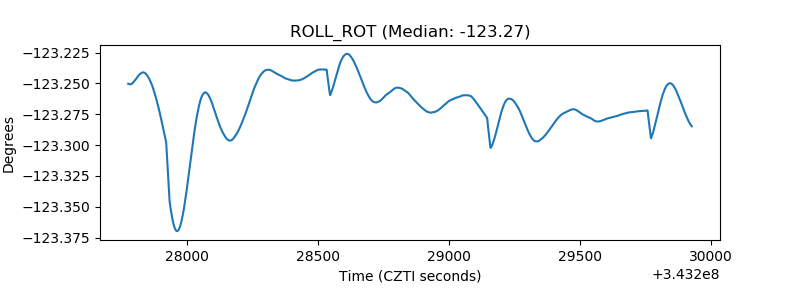

| _ROLL_ROT |  |

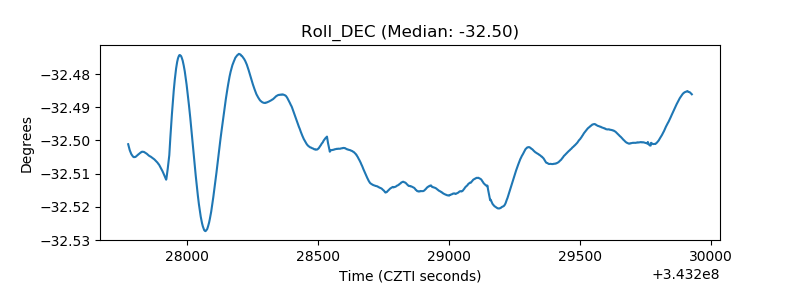

| _Roll_DEC |  |

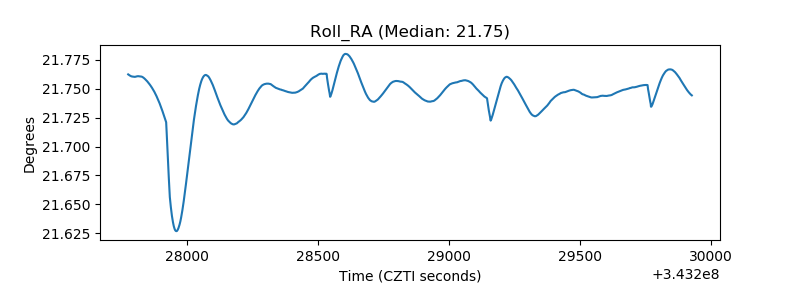

| _Roll_RA |  |

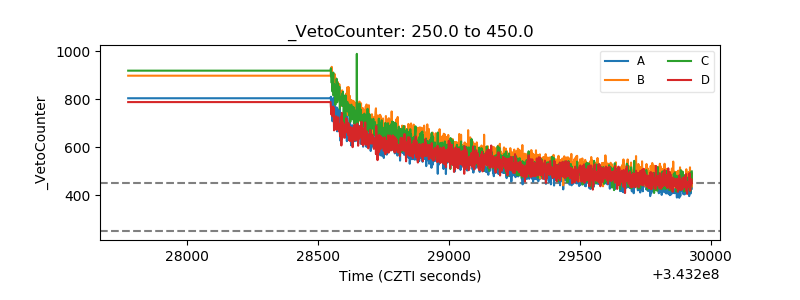

| Veto Counter |  |
