| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_009T02_9000004014_27777cztM0_level2.evt | modeM0/AS1A10_009T02_9000004014_27777cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,574,720 | 113,592,960 |
| Size | 491.7 MB | 108.3 MB |
| Events in quadrant A | 3,406,999 | 773,935 |
| Events in quadrant B | 4,007,565 | 788,760 |
| Events in quadrant C | 3,948,813 | 720,527 |
| Events in quadrant D | 3,810,419 | 704,243 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14225 | 2 |
| B | 0 | 16124 | 2 |
| C | 0 | 15901 | 2 |
| D | 0 | 15713 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6494 | 90 | 1.385895% |
| B | 6494 | 199 | 3.064367% |
| C | 6493 | 165 | 2.541198% |
| D | 6493 | 100 | 1.540120% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7784 | 6494 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7784 | 6494 | 72 | 72 | 0.92% | 1.11% |  |
| C | 7783 | 6493 | 22 | 22 | 0.28% | 0.34% |  |
| D | 7783 | 6494 | 49 | 49 | 0.63% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 13156 | 70.96 | 880 | 866 | 173.2 |
| A | 13 | 254 | 10503 | 55.64 | 880 | 866 | 173.2 |
| A | 3 | 137 | 7868 | 40.43 | 880 | 866 | 173.2 |
| B | 3 | 64 | 481517 | 2955.31 | 873 | 857 | 162.6 |
| B | 5 | 255 | 58682 | 355.53 | 873 | 857 | 162.6 |
| B | 0 | 190 | 35985 | 215.98 | 873 | 857 | 162.6 |
| C | 3 | 233 | 526674 | 2765.5 | 821 | 826 | 190.1 |
| C | 14 | 238 | 135022 | 705.75 | 821 | 826 | 190.1 |
| C | 6 | 112 | 65291 | 339.03 | 821 | 826 | 190.1 |
| D | 1 | 52 | 571734 | 2930.34 | 826 | 804 | 194.8 |
| D | 14 | 35 | 64699 | 327.95 | 826 | 804 | 194.8 |
| D | 2 | 234 | 23727 | 117.65 | 826 | 804 | 194.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

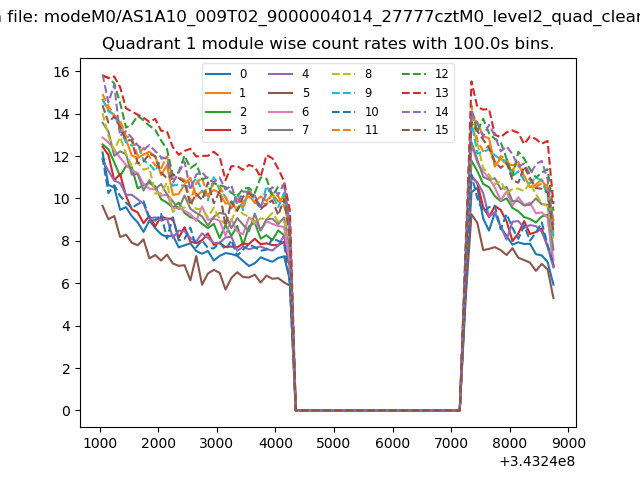

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
