| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_009T02_9000004014_27779cztM0_level2.evt | modeM0/AS1A10_009T02_9000004014_27779cztM0_level2_quad_clean.evt |
| Size (bytes) | 161,179,200 | 42,393,600 |
| Size | 153.7 MB | 40.4 MB |
| Events in quadrant A | 972,825 | 295,144 |
| Events in quadrant B | 1,717,753 | 287,907 |
| Events in quadrant C | 987,509 | 280,981 |
| Events in quadrant D | 1,065,006 | 274,268 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4135 | 1 |
| B | 0 | 6448 | 1 |
| C | 0 | 4168 | 1 |
| D | 0 | 4378 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1997 | 5 | 0.250376% |
| B | 1997 | 194 | 9.714572% |
| C | 1997 | 13 | 0.650976% |
| D | 1997 | 13 | 0.650976% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1997 | 1997 | 3 | 3 | 0.15% | 0.15% |  |
| B | 1997 | 1997 | 153 | 153 | 7.66% | 7.66% |  |
| C | 1997 | 1997 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1997 | 1997 | 9 | 9 | 0.45% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 7564 | 143.72 | 248 | 244 | 50.9 |
| A | 5 | 203 | 5368 | 100.6 | 248 | 244 | 50.9 |
| A | 13 | 254 | 3357 | 61.12 | 248 | 244 | 50.9 |
| B | 3 | 64 | 739391 | 15698.02 | 239 | 234 | 47.1 |
| B | 15 | 32 | 21508 | 451.81 | 239 | 234 | 47.1 |
| B | 0 | 190 | 9793 | 203.01 | 239 | 234 | 47.1 |
| C | 14 | 238 | 39523 | 701.28 | 234 | 236 | 56.0 |
| C | 3 | 233 | 28298 | 500.91 | 234 | 236 | 56.0 |
| C | 10 | 22 | 3757 | 62.85 | 234 | 236 | 56.0 |
| D | 1 | 52 | 86447 | 1516.97 | 232 | 225 | 56.8 |
| D | 7 | 223 | 82560 | 1448.58 | 232 | 225 | 56.8 |
| D | 2 | 250 | 10688 | 184.08 | 232 | 225 | 56.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

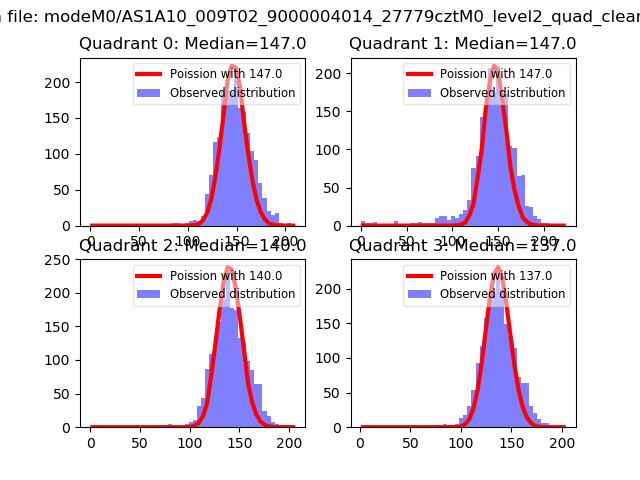

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

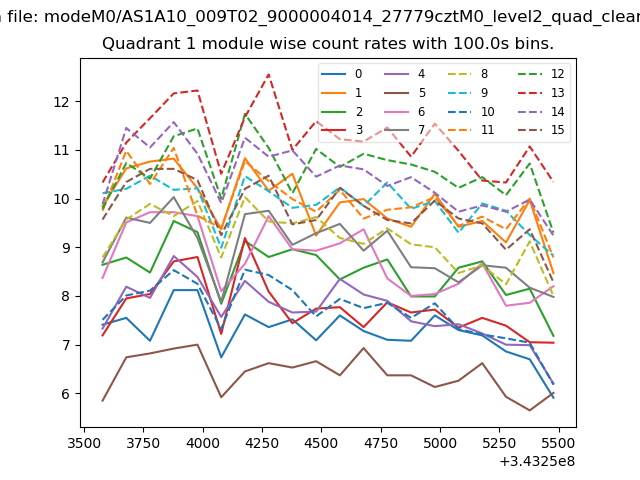

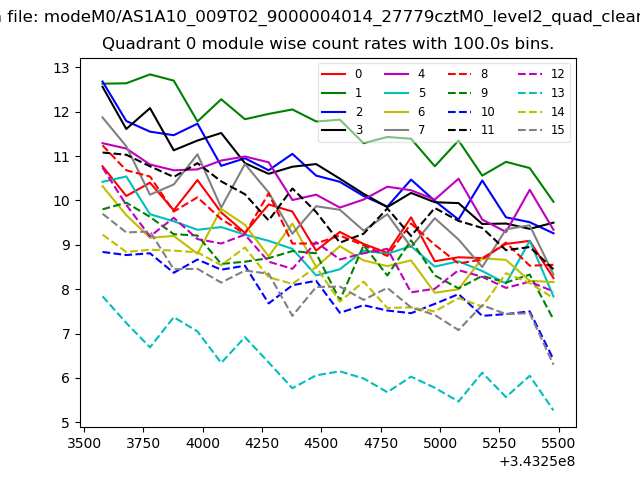

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

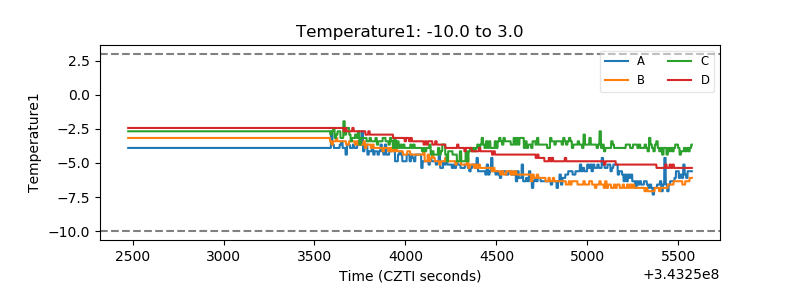

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

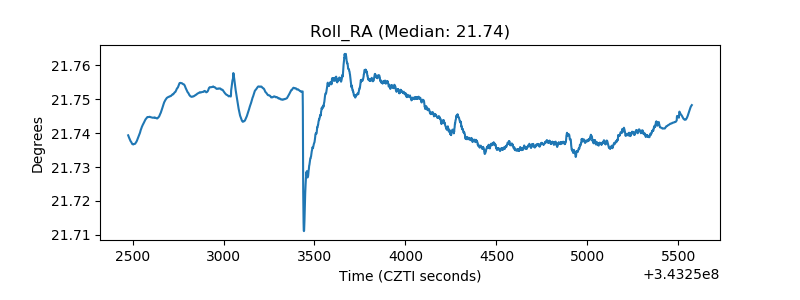

| _ROLL_ROT |  |

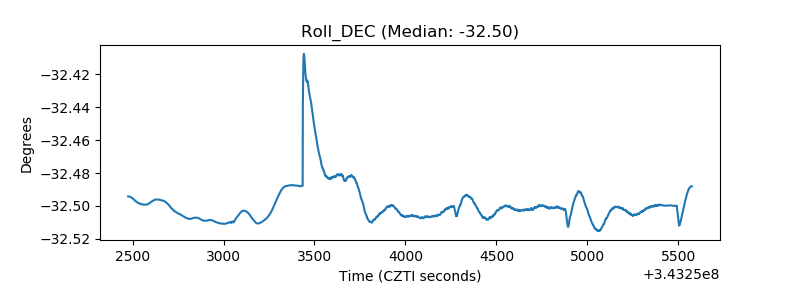

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
