| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004074_28229cztM0_level2.evt | modeM0/AS1C05_019T04_9000004074_28229cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,208,960 | 103,213,440 |
| Size | 499.9 MB | 98.4 MB |
| Events in quadrant A | 3,057,298 | 690,591 |
| Events in quadrant B | 3,641,507 | 701,592 |
| Events in quadrant C | 3,091,669 | 664,279 |
| Events in quadrant D | 5,635,212 | 606,733 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13613 | 0 |
| B | 0 | 15134 | 0 |
| C | 0 | 13575 | 0 |
| D | 0 | 21326 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6625 | 42 | 0.633962% |
| B | 6626 | 81 | 1.222457% |
| C | 6626 | 61 | 0.920616% |
| D | 6626 | 699 | 10.549351% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7305 | 6626 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7306 | 6627 | 15 | 15 | 0.21% | 0.23% |  |
| C | 7306 | 6627 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7306 | 6627 | 665 | 665 | 9.10% | 10.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 46266 | 289.02 | 778 | 764 | 157.4 |
| A | 13 | 254 | 9235 | 53.81 | 778 | 764 | 157.4 |
| A | 3 | 137 | 7687 | 43.97 | 778 | 764 | 157.4 |
| B | 5 | 255 | 568701 | 3876.48 | 771 | 750 | 146.5 |
| B | 12 | 111 | 18470 | 120.95 | 771 | 750 | 146.5 |
| B | 11 | 111 | 16642 | 108.47 | 771 | 750 | 146.5 |
| C | 14 | 238 | 121155 | 698.47 | 737 | 740 | 172.4 |
| C | 3 | 233 | 89224 | 513.25 | 737 | 740 | 172.4 |
| C | 5 | 37 | 12176 | 66.33 | 737 | 740 | 172.4 |
| D | 1 | 52 | 2530700 | 14921.47 | 713 | 692 | 169.6 |
| D | 7 | 80 | 172975 | 1016.09 | 713 | 692 | 169.6 |
| D | 8 | 195 | 94803 | 555.05 | 713 | 692 | 169.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

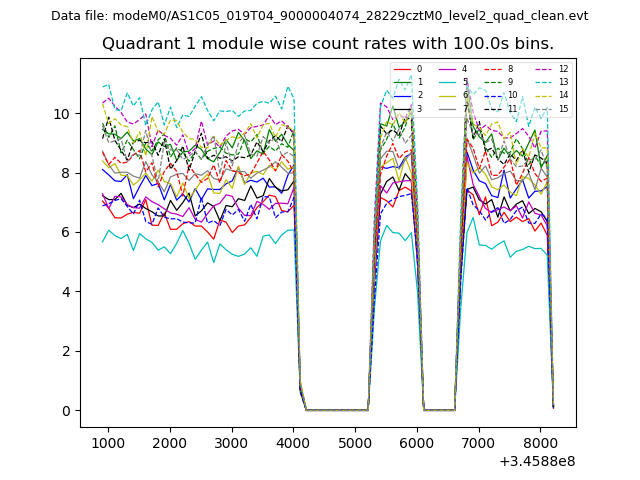

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

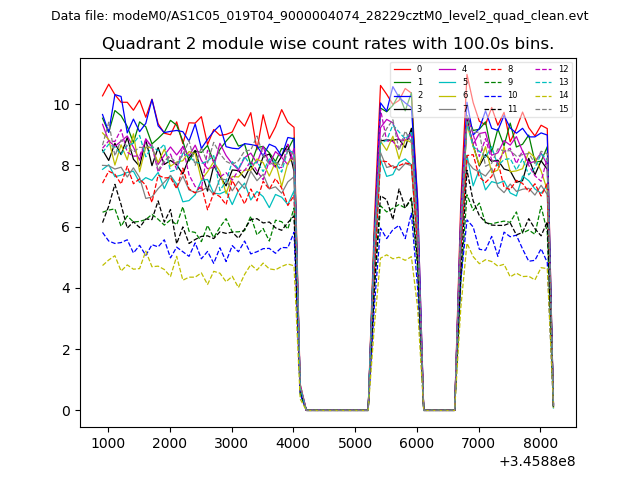

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

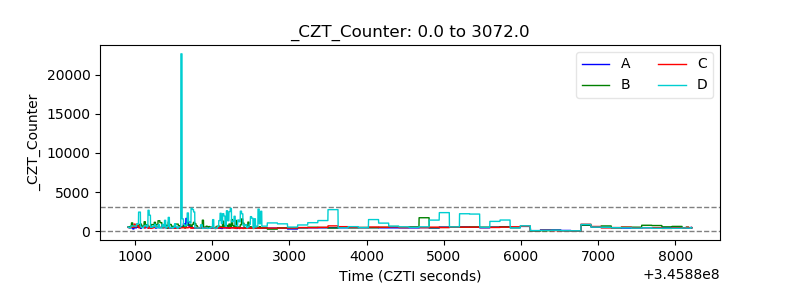

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

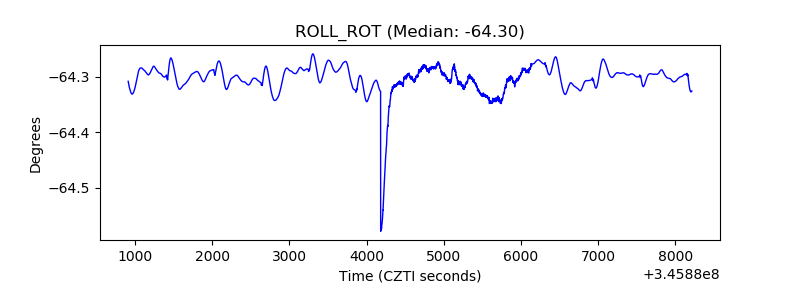

| _ROLL_ROT |  |
| _Roll_DEC |  |

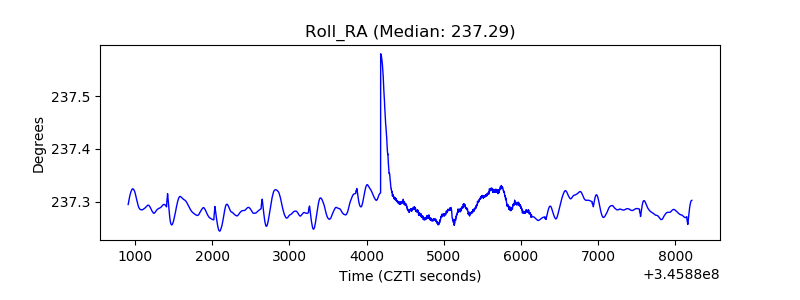

| _Roll_RA |  |

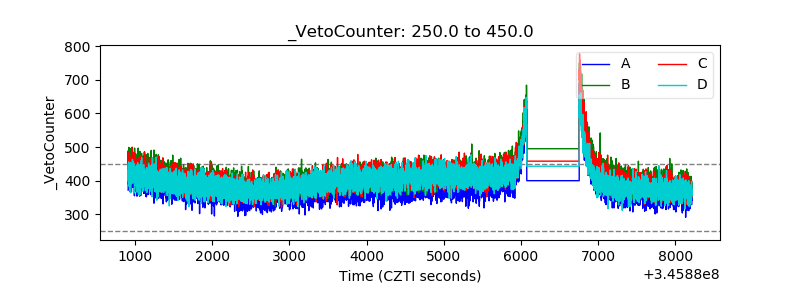

| Veto Counter |  |
