| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_102T10_9000004080_28297cztM0_level2.evt | modeM0/AS1A10_102T10_9000004080_28297cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,098,560 | 118,578,240 |
| Size | 514.1 MB | 113.1 MB |
| Events in quadrant A | 3,224,119 | 798,266 |
| Events in quadrant B | 4,376,046 | 809,625 |
| Events in quadrant C | 3,362,454 | 799,663 |
| Events in quadrant D | 4,938,474 | 745,594 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13671 | 0 |
| B | 0 | 17074 | 0 |
| C | 0 | 14126 | 0 |
| D | 0 | 18957 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6277 | 50 | 0.796559% |
| B | 6277 | 370 | 5.894536% |
| C | 6277 | 105 | 1.672774% |
| D | 6276 | 272 | 4.333971% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6278 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7587 | 6277 | 284 | 284 | 3.74% | 4.52% |  |
| C | 7587 | 6278 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7586 | 6276 | 205 | 205 | 2.70% | 3.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 192 | 14999 | 87.04 | 829 | 815 | 163.0 |
| A | 13 | 254 | 11537 | 65.79 | 829 | 815 | 163.0 |
| A | 15 | 174 | 9450 | 52.99 | 829 | 815 | 163.0 |
| B | 10 | 245 | 1084817 | 7186.25 | 825 | 808 | 150.8 |
| B | 4 | 200 | 24052 | 154.09 | 825 | 808 | 150.8 |
| B | 12 | 111 | 17762 | 112.39 | 825 | 808 | 150.8 |
| C | 14 | 238 | 134516 | 706.85 | 820 | 828 | 189.1 |
| C | 3 | 233 | 33336 | 171.88 | 820 | 828 | 189.1 |
| C | 13 | 61 | 5642 | 25.45 | 820 | 828 | 189.1 |
| D | 1 | 52 | 1059501 | 5622.02 | 800 | 781 | 188.3 |
| D | 8 | 195 | 643479 | 3412.86 | 800 | 781 | 188.3 |
| D | 2 | 250 | 69789 | 366.45 | 800 | 781 | 188.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

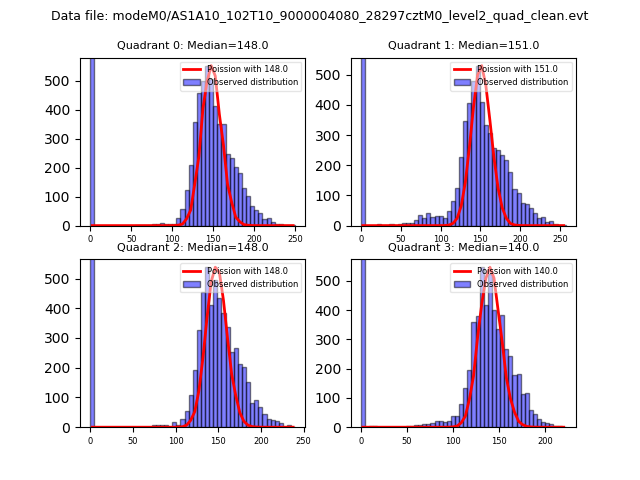

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

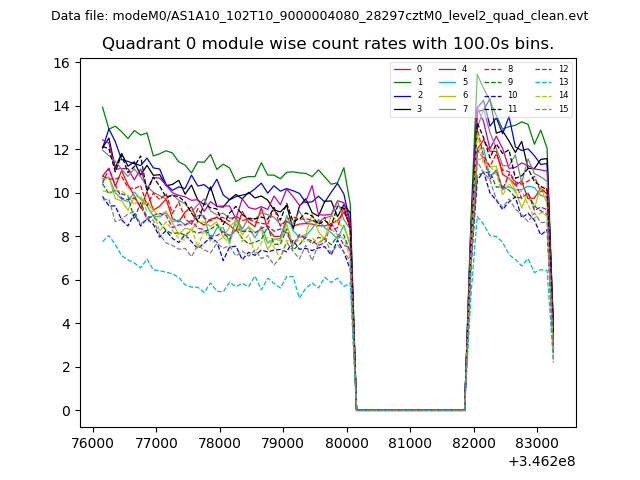

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

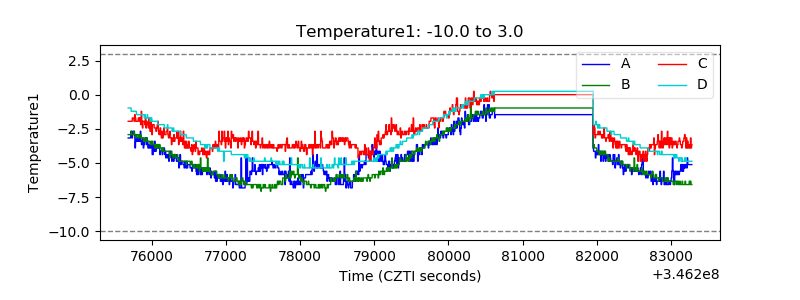

| Temperature 1 |  |

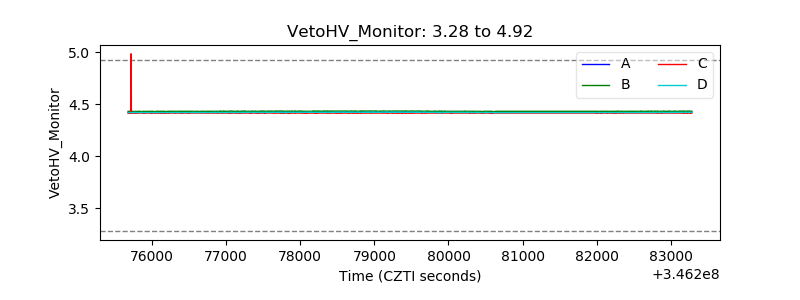

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

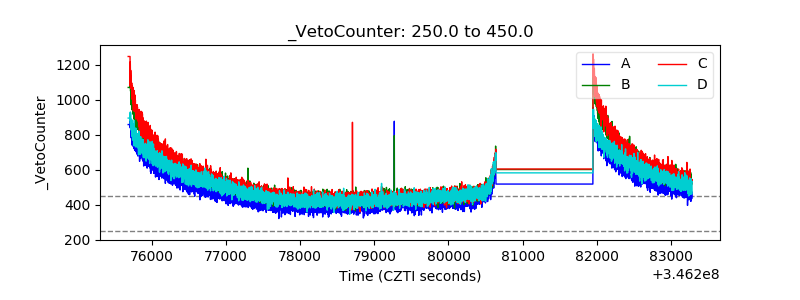

| Veto Counter |  |
