| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_050T06_9000004092_28473cztM0_level2.evt | modeM0/AS1A10_050T06_9000004092_28473cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,460,160 | 113,538,240 |
| Size | 542.1 MB | 108.3 MB |
| Events in quadrant A | 3,875,471 | 768,868 |
| Events in quadrant B | 3,956,011 | 770,190 |
| Events in quadrant C | 3,448,947 | 742,701 |
| Events in quadrant D | 5,494,142 | 702,363 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15800 | 2 |
| B | 0 | 15893 | 2 |
| C | 0 | 14272 | 2 |
| D | 0 | 20690 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6516 | 82 | 1.258441% |
| B | 6516 | 252 | 3.867403% |
| C | 6516 | 99 | 1.519337% |
| D | 6516 | 494 | 7.581338% |

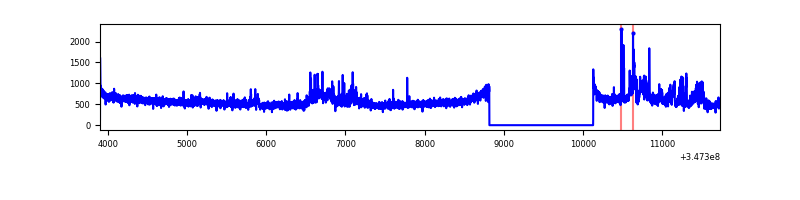

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7827 | 6516 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7827 | 6516 | 133 | 133 | 1.70% | 2.04% |  |
| C | 7827 | 6516 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7827 | 6517 | 555 | 555 | 7.09% | 8.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 455314 | 2597.18 | 882 | 867 | 175.0 |
| A | 12 | 96 | 19017 | 103.73 | 882 | 867 | 175.0 |
| A | 13 | 254 | 9986 | 52.12 | 882 | 867 | 175.0 |
| B | 10 | 245 | 530005 | 3276.37 | 865 | 846 | 161.5 |
| B | 12 | 111 | 19884 | 117.88 | 865 | 846 | 161.5 |
| B | 11 | 111 | 18083 | 106.73 | 865 | 846 | 161.5 |
| C | 14 | 238 | 139067 | 709.78 | 842 | 851 | 194.7 |
| C | 3 | 233 | 16529 | 80.51 | 842 | 851 | 194.7 |
| C | 10 | 22 | 7562 | 34.46 | 842 | 851 | 194.7 |
| D | 8 | 195 | 1164915 | 6020.75 | 824 | 806 | 193.3 |
| D | 1 | 52 | 1163999 | 6016.01 | 824 | 806 | 193.3 |
| D | 2 | 234 | 20810 | 103.46 | 824 | 806 | 193.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

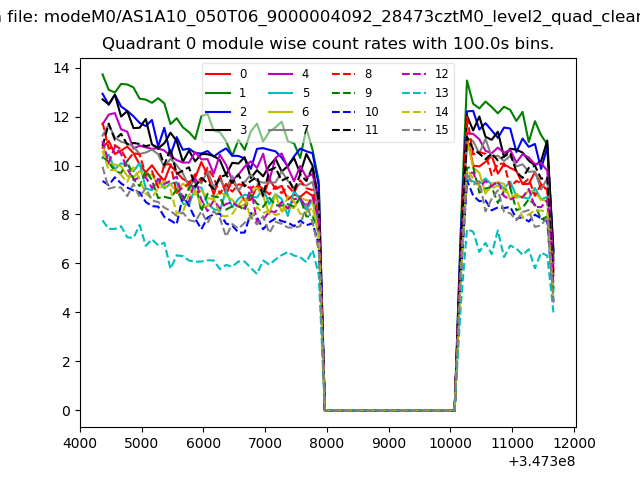

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

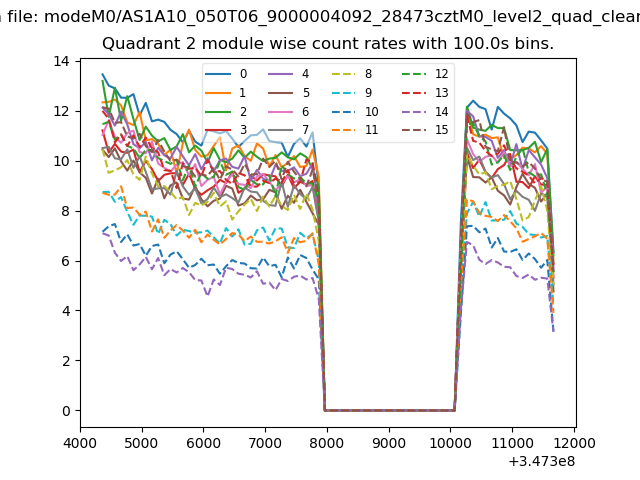

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

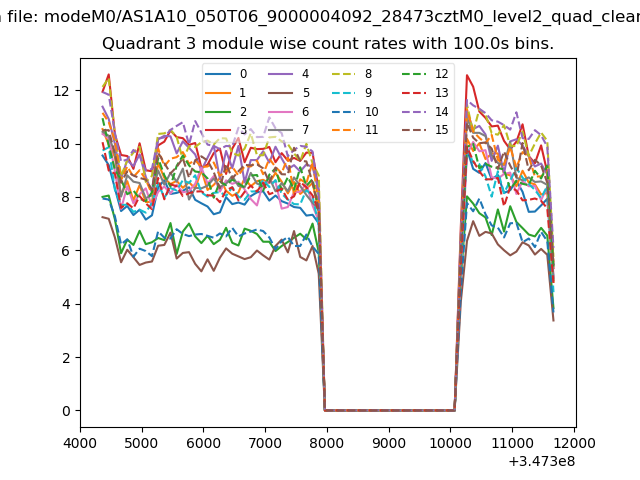

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

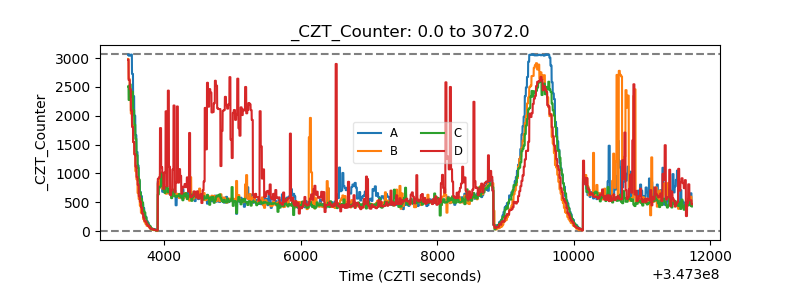

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

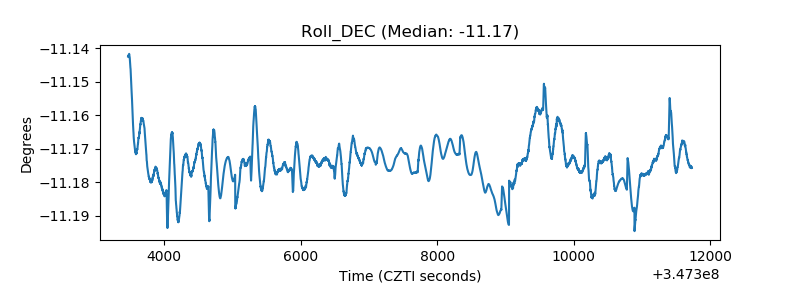

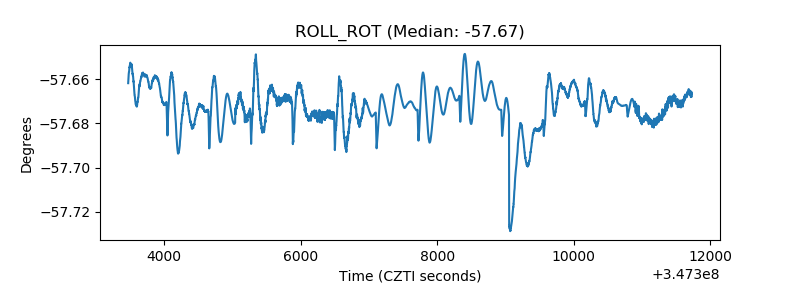

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

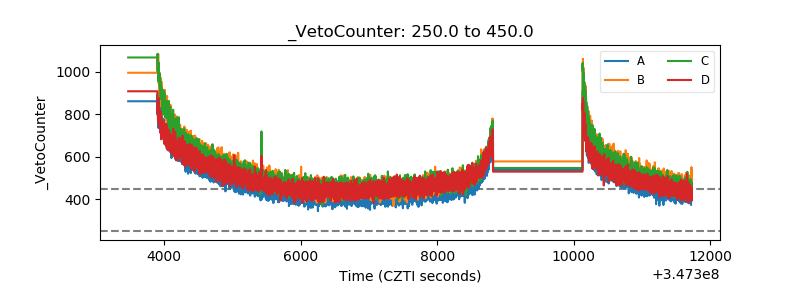

| Veto Counter |  |
